Каталог запасных частей к технике: KUHN PLANTER 3M. TRANSMISSION (13-30TRS/100M) D5412-D9999
1
1
2
2
2
3
4
4
5
6
7
8
8
8
8
8
8
9
9
9
10
11
11
12
12
12
12
13
14
14
14
14
15
15
15
15
16
17
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
32
33
34
34
34
35
36
37
38
38
39
39
40
41
41

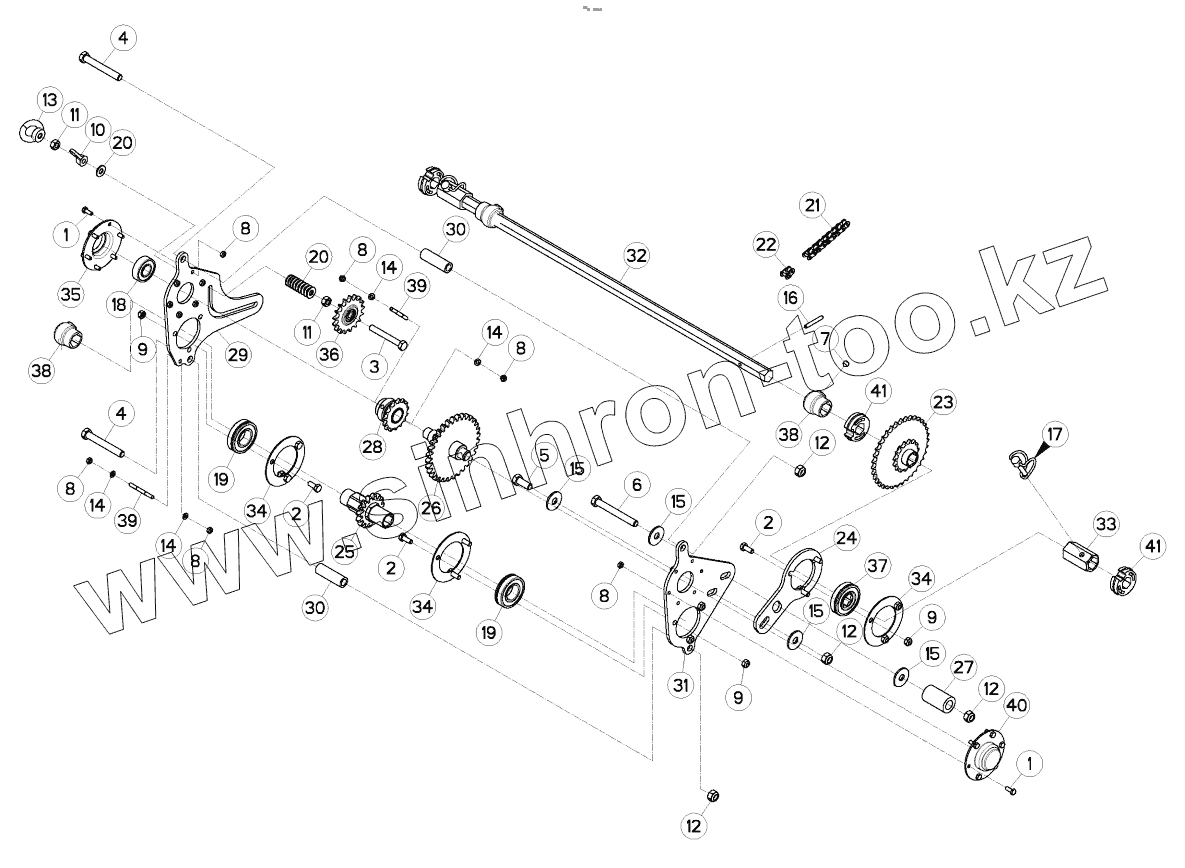

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 80060616 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 2 | 80060820 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 3 | 80061078 | HEXAGON HEAD SCREW INOX | |
| 4 | 80061267 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 5 | 80061271 | HEX BOLT FE/ZNXC3 | |
| 6 | 80061295 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 7 | 80141010 | SET SCREW WITH CONE FE/ZNXC3 | |
| 8 | 80200640 | SELF-LOCKING NUT FE/ZNXC3 | |
| 9 | 80200840 | SELF-LOCKING NUT FE/ZNXC3 | |
| 10 | 80201026 | WING NUT FE/ZNXC3 | |
| 11 | 80201070 | NUT FE/ZNXC3 | |
| 12 | 80201240 | SELF-LOCKING NUT FE/ZNXC3 | |
| 13 | 80221000 | LIFTING EYE NUT FE/ZNXC3 | |
| 14 | 80250611 | PLAIN WASHER FE/ZNXC3 | |
| 15 | 80251237 | PLAIN WASHER FE/ZNXC3 | |
| 16 | 80450645 | ROLL PIN FLZNNC | |
| 17 | 80560801 | TUBE PIN FE/ZNXC3 | |
| 18 | 81002051 | BALL BEARING | |
| 19 | 81003060 | BALL BEARING | |
| 20 | 80251005 | PLAIN WASHER INOX A2 | |
| 21 | 83121235 | CHAIN | |
| 22 | B0000707 | CONNECTING LINK | |
| 23 | K3600460 | GEAR, PINION | |
| 24 | K3603490 | PLATE | |
| 25 | K3603500 | GEAR, PINION | |
| 26 | K3603510 | GEAR, PINION | |
| 27 | K3603520 | TUBE | |
| 28 | K3603530 | GEAR, PINION | |
| 29 | K3603540 | FLANGE | |
| 30 | K3603550 | TUBE | |
| 31 | N1507910 | FLANGE | |
| 32 | N1507930 | BAR | |
| 33 | N1507950 | TUBE | |
| 34 | N00863B0 | WASHER | |
| 35 | N01143A0 | CUP | |
| 36 | N01628C0 | TENSIONING SPORCKET | |
| 37 | N01686A0 | GUIDE | |
| 38 | N01716B0 | BUSH | |
| 39 | N03481B0 | PIN | |
| 40 | VNB1020 | CUP | |
| 41 | YD317102 | SPACER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
