Каталог запасных частей к технике: KUHN PLANTER 3M. SUPPORT (AIR INFLATION INDICAT)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано CHALLENGER NSH (2011) FB 119 (2012) MULTI-LEADER T (2019) OPTIMER 1000 (2012) PLANTER 3M (2014) PLANTER II (2007)

Схема > Не выбрано CONNECTING FRAME (COMPACT <=4,4M) CONNECTING FRAME (COMPACT 5-6M) CONNECTING FRAME (COMPACT 9M) CONNECTING FRAME LINK PIN SET CAT.2 HOSE SUPPORT INTERMEDIATE HOUSING D5412-D9999 INTERMEDIATE HOUSING D7167-J0000 FAN (PM20-D125) FAN (PM20-D125) FAN PM20 (BLOWER) FAN (PM20) VACUUM GAUGE SUPPORT (AIR INFLATION INDICAT) POWER TAKE OFF (REAR) BLOWER SPEED KIT (470MIN) BLOWER SPEED KIT (540MIN-1) BLOWER SPEED KIT (870MIN-1) BLOWER SPEED KIT (1000MIN-1) DRIVE (HYDRAULIC) 2-WAY UNIT (5,00-6,00M) 2-WAY UNIT (9,00M) 2-WAY UNIT "ADS" ANTI-DRIFT SYSTEM PM20 SINGLE BAR FRAME (5,00M) SINGLE BAR FRAME (6,00M) SINGLE BAR FRAME (9,00M) PARKING STAND (ROW MARKER) PARKING STAND (REAR) PARKING STAND (FRONT) RIDGE WHEEL RIDGE WHEEL DRIVE WHEEL ARM D5412-E0970 DRIVE WHEEL ARM E0625-J0000 DRIVE WHEEL ARM D5412-E0372 DRIVE WHEEL ARM E0625-J0000 DRIVE WHEEL ARM D5412-J0000 DRIVE WHEEL ARM D5412-D6656 DRIVE WHEEL ARM D6657-J0000 WHEEL 26X12 (LEFT) WHEEL 26X12 (RIGHT) WHEEL 6,5X15 (LEFT) WHEEL 6,5X15 (RIGHT) WHEEL 5X15 (LEFT) WHEEL 5X15 (RIGHT) SCRAPER (WHEEL) SCRAPER (5X15) FOOT - BRIDGE (FOLDING) FOOT - BRIDGE (LEFT) FOOT - BRIDGE (RIGHT) GUARD (2ND) ANGLE GEARBOX (FOOT - BRIDGE) SPEED-CHANGE GEAR BOX D5412-D9999 SPEED-CHANGE GEAR BOX D7167-J0000 SEEDING UNIT FIXATION SET OF GEARS (LIMITER) SET OF GEARS (DECLUTCHING) SET OF GEARS (DECLUTCHING) COMPENSATION SPRING SOWING COMPONENT SOWING COMPONENT SOWING COMPONENT SOWING COMPONENT DISCS 1 (DISTRIBUTOR) DISCS 2 (DISTRIBUTOR) HOPPER (25 L) HOPPER (47 L) TRASH REMOVER (GAUGE WHEELS) TRASH REMOVER (OPENERS DISCS) CLOD CLEANER (GAUGE) CLOD CLEANER (OPENERS DISCS) CLOD CLEANER L (OPENERS DISCS) CLOD CLEANER (SWINGING ARM) DRIVE WHEEL ARM (SWINGING ARM) OPENERS DISCS NARROW GAUGE WHEELS WIDE GAUGE WHEELS SHARE SHARE (BEET) SHARE (OPENERS DISCS) EXTENDED COULTER (OPENERS DISC) SHORT COULTER (MAIZE) LONG COULTER (MAIZE) LONG COULTER EXTENDED (MAIZE) INTERMED. AXIAL RUBBER WHEEL STAINLESS STEEL AXIAL PRESS WH RUBBER V SHAPED ROLLER 2" G2 RUBBER V SHAPED ROLLER 2" G2 F RUBBER V SHAPED ROLLER 1" G2 NOTCHED V STEEL ROLLER G2 SMOOTH V STEEL ROLLER G2 OTIFLEX ROLLER + SCRAPERS OTIFLEX ROLLER 500 + SCRAPERS COVERING SCRAPERS MICRO SUPPLY->FURROW MICRO SUPPLY->REAR H MICROGRANULATOR SUPPLY TUBE MICROGRANULATOR I-A 6X D5412-J0000 MICROGRANULATOR I-A 6X D5412-D6644 MICROGRANULATOR I-A 6X D6645-J0000 MICROGRANULATOR H 6X D5412-J0000 MICROGRANULATOR H 6X D5412-D6644 MICROGRANULATOR H 6X D6645-J0000 MICROGRANULATOR I-A 9X D5412-J0000 MICROGRANULATOR I-A 9X D5412-J0000 MICROGRANULATOR H 9X D5412-J0000 MICROGRANULATOR H 9X D5412-J0000 TRANSMISSION (MICROGRANULATOR) HOPPER EXTENSION -MICRO- TRANS D5412-D6665 HOPPER EXTENSION -MICRO- TRANS D5979-D9999 HOPPER EXTENSION -MICRO- TRANS D7167-J0000 FERTILIZER UNIT 2X260L FERTILIZER UNIT 2X260L FERTILIZER UNIT GT1350L FERTILIZER UNIT GT1350L FERTILIZER UNIT GT1350L MUDGUARD (DISTRIBUTOR) FERTILIZER EXTENSION 12 ROWS D5412-D9999 FERTILIZER EXTENSION 12 ROWS D7167-J0000 TRANSMISSION (13-30TRS/100M) D5412-D9999 TRANSMISSION (13-30TRS/100M) D7167-J0000 SET OF GEARS 57DTS (8TRS/100M) EXTENSION (2-WAY UNIT) DIVIDER EXTENSIONS DIVIDER EXTENSIONS DISTRIBUTOR + VENTURI DRAINAGE HATCH VENTURI PNEUMATIC TRANSPORT BENT TUBE-RINGED TUBE D5412-J0000 BENT TUBE-RINGED TUBE D5412-J0000 SUPPORT (BENT TUBE-RINGED TUBE) D5412-J0000 HOSES AND PIPES DISTRIBUTION HEAD DISTRIBUTION HEAD (12) O50 DISTRIBUTION HEAD (6) O75 CYCLONE O50 CYCLONE O75 HOSES AND PIPES DISC COULTER (RIGHT) DISC COULTER (LEFT) SHOE COULTER (RIGHT) SHOE COULTER (LEFT) SHOE COULTER NS (RIGHT) SHOE COULTER NS (LEFT) OFF SETTING 160 OFF SETTING 88 FILLING AUGER (SUPPORT) FILLING AUGER HOSES AND PIPES SIDE MARKERS 6M00 D5412-E0785 SIDE MARKERS 6M00 E0786-J0000 SIDE MARKERS D5412-J0000 LIMITER (ROW MARKER) PAIR OFFSET BRACKETS MARKER OFFSETS (328 MM) MARKER EXTENSION CONTROL 6M00-6M55 (ROW MARKER) CONTROL 6M00 (ROW MARKER) CONTROL 9M00 (ROW MARKER) CONTROL 9M00 (ROW MARKER) HECTAREMETER D5412-E0792 HECTAREMETER E0871-J0000 HECTOR 3000 SUPPORT (BOX) BOX KMS208 BOX KMS412 (8R) BOX KMS412 (12R) BOX KMD112 (8R) D5412-E0583 BOX KMD112 (8R) E0341-J0000 BOX KMD112 (12R) D5412-E0583 BOX KMD112 (12R) E0341-J0000 WIRING HARNESS (TRAMLINING) DECLUTCHING (HECTOR) HOPPER BASE SENSOR (X1) HOPPER BASE SENSOR (X2) HOPPER BASE SENSOR (SPEED SENS) WIRING HARNESS (2 PINS) WIRING HARNESS (3 PINS) WIRING HARNESS (BUS CAN 6 PINS) WIRING HARNESS (8 PINS) SUCTION (UNLOADING) TRACK ERADICATORS SIGNALLING SIGNALLING SUPPORT (SIGNALLING) STICKERS STICKERS STICKERS STICKERS STICKERS STICKERS SET OF STICKERS (JP) STICKERS MISCELLANEOUS TRANSMISSION A620577 TRANSMISSION A621753 TRANSMISSION A621737 TRANSMISSION 4700050 TRANSMISSION B0000875 TRANSMISSION B0000929

1

2

3

4

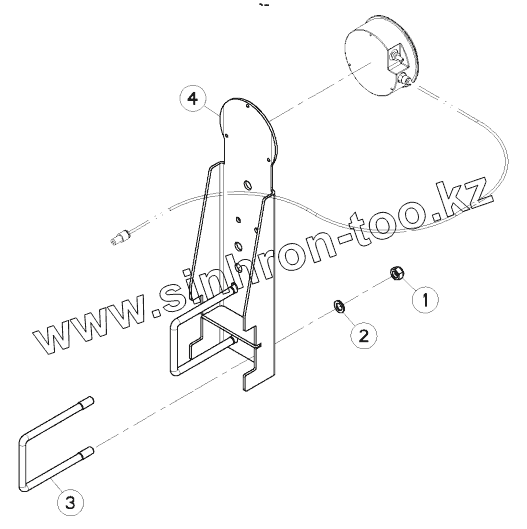

Позиция на иллюстрации	Заводской номер детали		Название детали
1	80201240		SELF-LOCKING NUT FE/ZNXC3
2	80251220		PLAIN WASHER FE/ZNXC3
3	FNB0758A		U-BOLT
4	K3613840		SUPPORT

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
