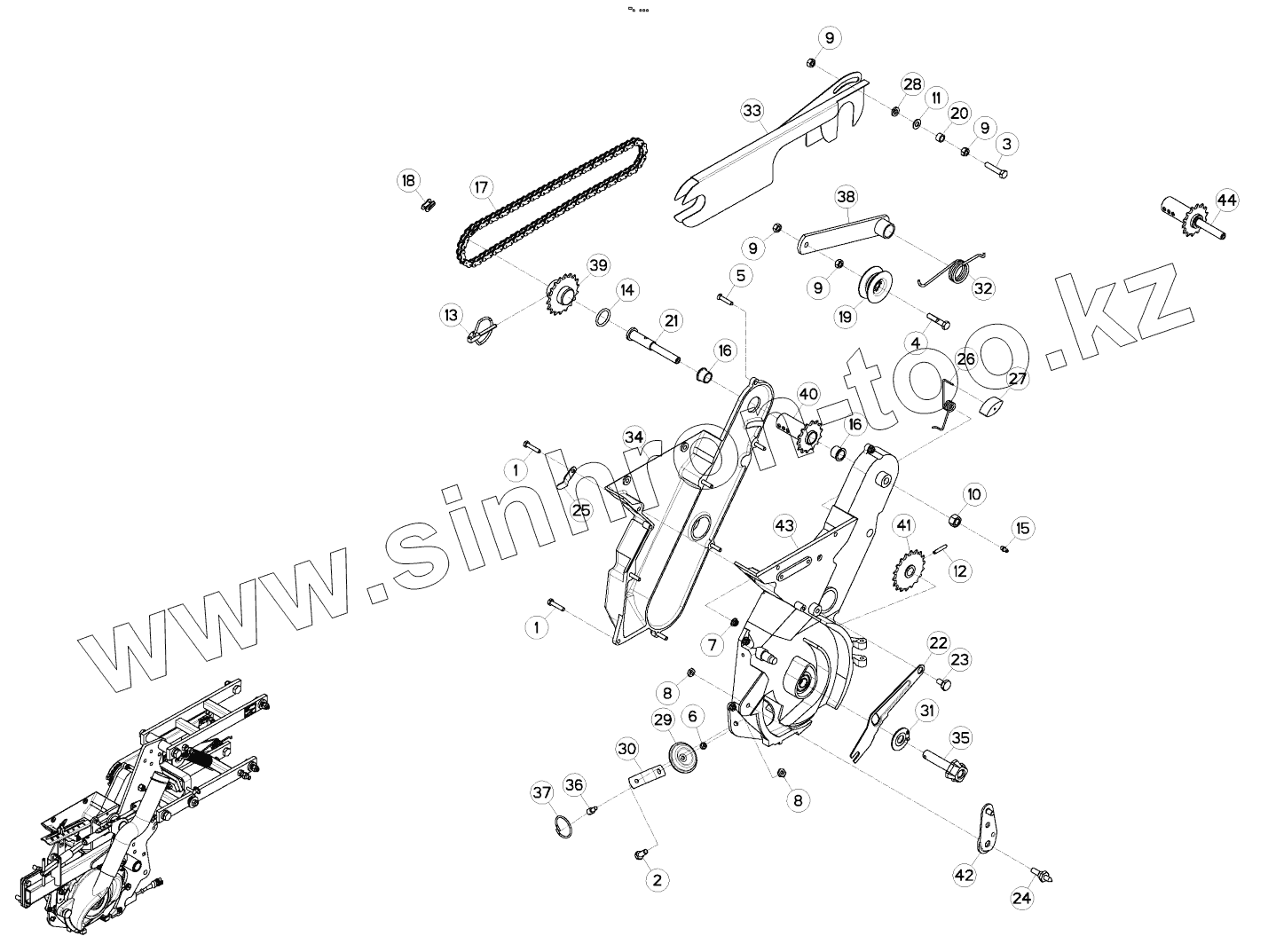

Каталог запасных частей к технике: KUHN PLANTER 3M. SOWING COMPONENT
1
1
2
3
4
5
6
7
8
8
9
9
9
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 80060630 | HEX BOLT FE/ZNXC3 | |
| 2 | 80060820 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 3 | 80060839 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 4 | 80060840 | HEX BOLT FE/ZNXC3 | |
| 5 | 80120630 | SLOT.COUNT.HEAD SCREW INOX | |
| 6 | 80200631 | SELF-LOCKING NUT INOX | |
| 7 | 80200665 | UNDERSERRAT.S.LOC.NUT FE/ZNXC3 | |
| 8 | 80200806 | NUT FE/ZNXC3 | |
| 9 | 80200870 | NUT FE/ZNXC3 | |
| 10 | 80201270 | NUT FE/ZNXC3 | |
| 11 | 80250823 | PLAIN WASHER FE/ZNXC3 | |
| 12 | 80450530 | ROLL PIN FLZNNC | |
| 13 | 80560540 | LINCH PIN FE/ZNXC3 | |
| 14 | 82062633 | O-RING | |
| 15 | 82200600 | GREASE NIPPLE FE/ZNXC3 | |
| 16 | 83011627 | SELF LUBRICATING BEARING | |
| 17 | 83121203 | CHAIN | |
| 18 | 83121231 | BRACKET | |
| 19 | BLA0158A | CAM ROLLER | |
| 20 | FJX0097D | SPACER | |
| 21 | FNB0093 | PIN | |
| 22 | FNB0121 | SELECTOR | |
| 23 | FNB0122 | PIN | |
| 24 | FNB0123 | PIN | |
| 25 | FNB0167 | PAWL | |
| 26 | FNB1105 | SPRING | |
| 27 | FNB1106 | SKID | |
| 28 | FNB1114 | WASHER | |
| 29 | FNB0411A | EMPTYING TRAP | |
| 30 | FNB0412B | SPRING | |
| 31 | FNB0479A | WASHER | |
| 32 | FNB1112 | SPRING | |
| 33 | K3615920 | HOOD | |
| 34 | MNB0004B | HOUSING | |
| 35 | MNB0005A | PIN | |
| 36 | N1000970 | GUIDE PIN | |
| 37 | N1000980 | RING | |
| 38 | N01149A0 | TENSIONER | |
| 39 | N01151A0 | PINION GEAR | |
| 40 | N01152A0 | GEAR, PINION | |
| 41 | N01155A0 | GEAR, PINION | |
| 42 | VNB0046 | ECCENTRIC | |
| 43 | VNB0050D | HOUSING | |
| 44 | VNB0053A | GEAR, PINION |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
