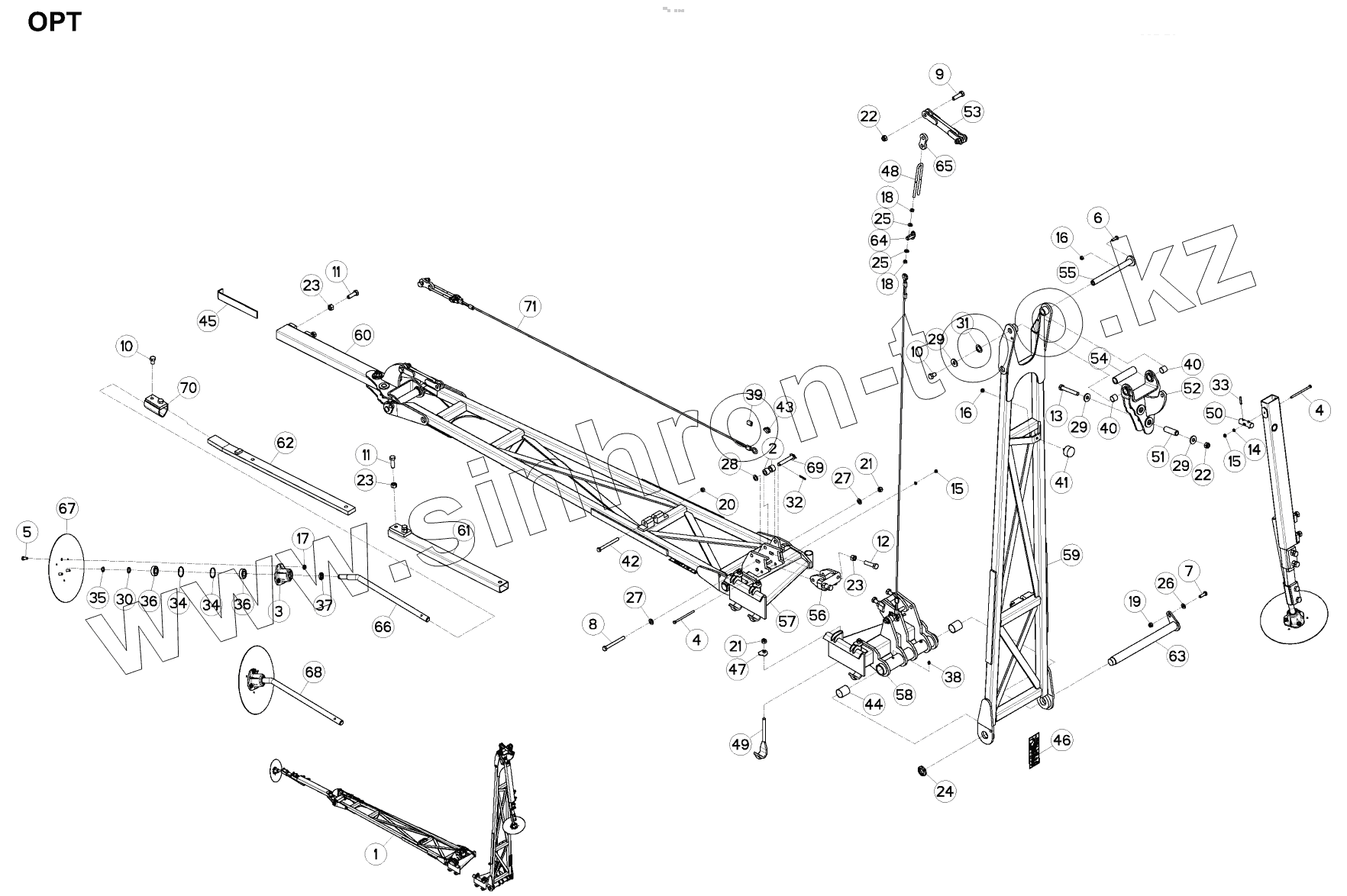

Каталог запасных частей к технике: KUHN PLANTER 3M. SIDE MARKERS D5412-J0000
1
2
3
4
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
16
16
17
18
18
19
20
21
21
22
22
23
23
23
24
25
25
26
27
27
28
29
29
29
30
31
32
33
34
34
35
36
36
37
38
39
40
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 1676559 | MARKER 9.00M H FRAME | |
| 2 | 53043700 | SPACER | |
| 3 | 53071600 | HUB | |
| 4 | 80060888 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 5 | 80061020 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 6 | 80061073 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 7 | 80061236 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 8 | 80061489 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 9 | 80061615 | HEXAGON HEAD SCREW FLZNNC | |
| 10 | 80061625 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 11 | 80061648 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 12 | 80061649 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 13 | 80061684 | HEXAGON HEAD SCREW FLZNNC | |
| 14 | 80200801 | HEXAGON THIN NUT | |
| 15 | 80200840 | SELF-LOCKING NUT FE/ZNXC3 | |
| 16 | 80201040 | SELF-LOCKING NUT FE/ZNXC3 | |
| 17 | 80201053 | UNDERSERRAT.S.LOC.NUT FE/ZNXC3 | |
| 18 | 80201070 | NUT FE/ZNXC3 | |
| 19 | 80201230 | SELF-LOCKING NUT FE/ZNXC3 | |
| 20 | 80201240 | SELF-LOCKING NUT FE/ZNXC3 | |
| 21 | 80201440 | SELF-LOCKING NUT FE/ZNXC3 | |
| 22 | 80201640 | SELF-LOCKING NUT FE/ZNXC3 | |
| 23 | 80201669 | NUT FE/ZNXC3 | |
| 24 | 80203565 | SELF-LOCKING NUT FE/ZNXC3 | |
| 25 | 80251021 | PLAIN WASHER M10 | |
| 26 | 80251225 | PLAIN WASHER FE/ZNXC3 | |
| 27 | 80251430 | PLAIN WASHER FE/ZNXC3 | |
| 28 | 80251638 | PLAIN WASHER FE/ZNXC3 | |
| 29 | 80251645 | PLAIN WASHER FE/ZNXC3 | |
| 30 | 80252029 | SUPPORTING RING SS 2 | |
| 31 | 80252542 | PLAIN WASHER FE/ZNXC3 | |
| 32 | 80450641 | ROLL PIN FLZNNC | |
| 33 | 80450841 | ROLL PIN FLZNNC | |
| 34 | 80594700 | RETAINING RING | |
| 35 | 80600066 | RETAINING RING | |
| 36 | 81002051 | BALL BEARING | |
| 37 | 82042535 | OIL SCRAPER SEAL | |
| 38 | 82201016 | SELF TAPPING GREASE NIPPLE | |
| 39 | 82300112 | THREADED SOCKET | |
| 40 | 83022525 | NYLON BEARING | |
| 41 | 83030015 | GUMMIPUFFER GOMMINO | |
| 42 | 800612A2 | HEXAGON HEAD SCREW FLZNNC | |
| 43 | 82300108 | POD | |
| 44 | 83014044 | WRAPPED BUSH | |
| 45 | FJA0284 | PLATE | |
| 46 | FJA0303 | STICKER | |
| 47 | FLA0954C | WASHER | |
| 48 | FNB1288 | U-BOLT | |
| 49 | FNB0429A | CLAMP | |
| 50 | K3613380 | PIN | |
| 51 | K3613390 | SPACER | |
| 52 | K3615630 | SUPPORT, ARM | |
| 53 | K3615650 | LINK | |
| 54 | K3615660 | TUBE | |
| 55 | K3615670 | TRUNNION | |
| 56 | K3615690 | CLEVIS | |
| 57 | K3615990 | CLAMP, MOUNT | |
| 58 | K3616000 | CLAMP, MOUNT | |
| 59 | K3616010 | ARM | |
| 60 | K3616020 | ARM | |
| 61 | K3616030 | TUBE | |
| 62 | K3616040 | FLAT | |
| 63 | K3616060 | PIN | |
| 64 | K3627300 | PIN | |
| 65 | K3627310 | LINK | |
| 66 | K3627480 | PIN | |
| 67 | K3627490 | DISC | |
| 68 | K3630010 | DISC | |
| 69 | K8015480 | PIN | |
| 70 | N4000920 | CLAMP | |
| 71 | VNB0554 | CABLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
