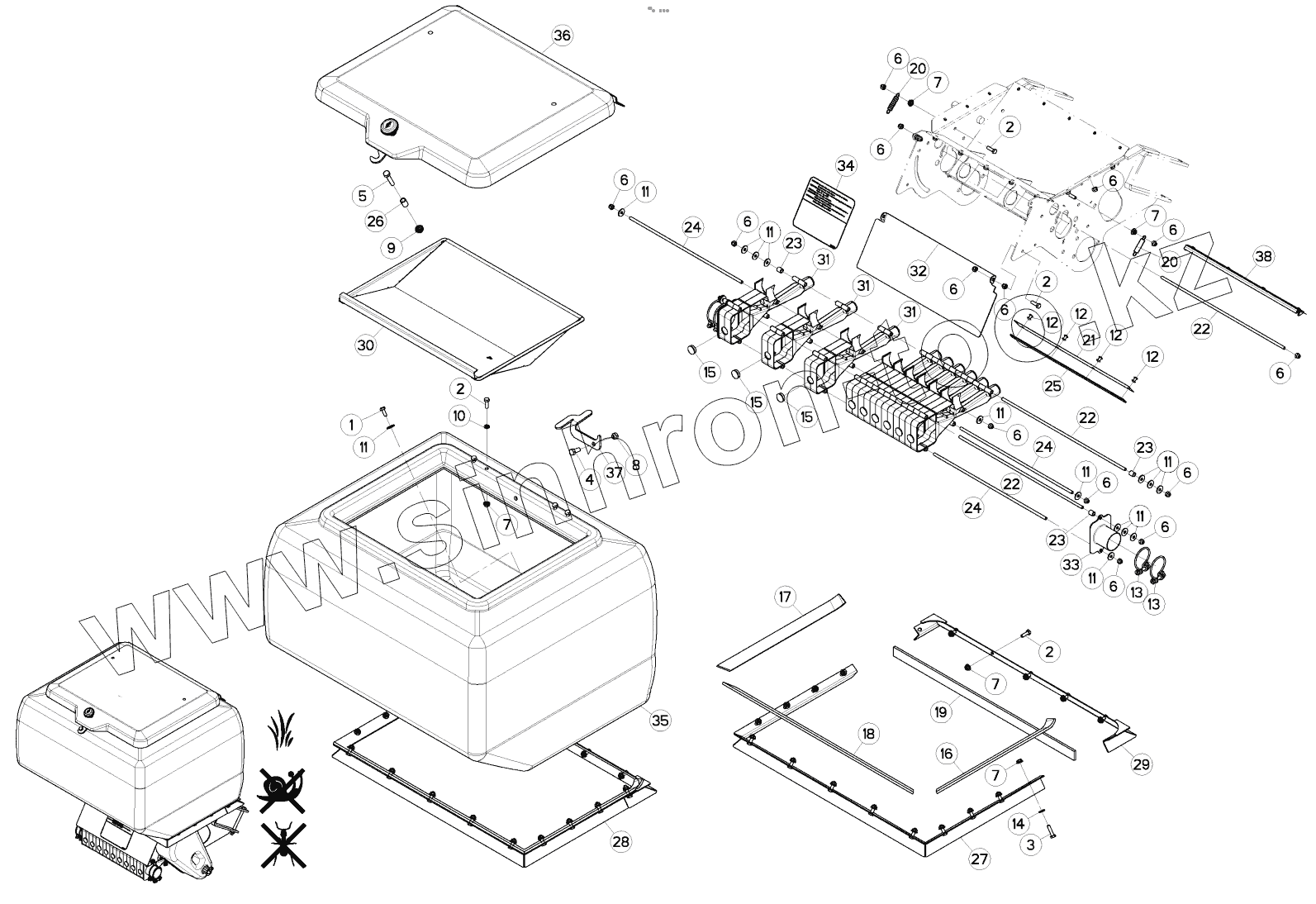

Каталог запасных частей к технике: KUHN PLANTER 3M. MICROGRANULATOR H 9X D5412-J0000
1
2
2
2
2
3
4
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
8
9
10
11
11
11
11
11
11
11
11
12
12
12
12
13
13
14
15
15
15
16
17
18
19
20
20
21
22
22
22
23
23
23
24
24
24
25
26
27
28
29
30
31
31
31
32
33
34
35
36
37
38
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 80060616 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 2 | 80060620 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 3 | 80060625 | HEX BOLT FE/ZNXC3 | |
| 4 | 80060821 | HEXAGON HEAD SCREW INOX | |
| 5 | 80060839 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 6 | 80200630 | SELF-LOCKING NUT FE/ZNXC3 | |
| 7 | 80200665 | UNDERSERRAT.S.LOC.NUT FE/ZNXC3 | |
| 8 | 80200831 | SELF-LOCKING NUT INOX | |
| 9 | 80200865 | UNDERSERRAT.S.LOC.NUT FE/ZNXC3 | |
| 10 | 80250611 | PLAIN WASHER FE/ZNXC3 | |
| 11 | 80250618 | PLAIN WASHER INOX A2 | |
| 12 | 80370502 | RIVET | |
| 13 | 83090138 | COLLAR INOX A2 | |
| 14 | 80250611 | PLAIN WASHER FE/ZNXC3 | |
| 15 | A621936 | PLUG | |
| 16 | A622467 | GASKET | |
| 17 | A622467 | GASKET | |
| 18 | A622467 | GASKET | |
| 19 | A622467 | GASKET | |
| 20 | FLA1638A | SPRING, EXTENSION | |
| 21 | FNB0896 | FLASHY | |
| 22 | FNB0921 | LIFT PLATE | |
| 23 | FNB0973 | SPACER | |
| 24 | FNB1011 | LIFT PLATE | |
| 25 | FNB0372A | BRACKET | |
| 26 | FPX0279B | SPACER | |
| 27 | K3607290 | FRAME | |
| 28 | K3607300 | FRAME | |
| 29 | K3608140 | FRAME | |
| 30 | K3623210 | SIEVE | |
| 31 | K3600190 | VENTURI | |
| 32 | N00067A0 | HAND SCREEN | |
| 33 | N00181A0 | PLATE | |
| 34 | N00193C0 | STICKER | |
| 35 | N00200B0 | HOPPER | |
| 36 | N02455A0 | LID | |
| 37 | N03490A0 | LATCH | |
| 38 | VNB0187 | FOIL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
