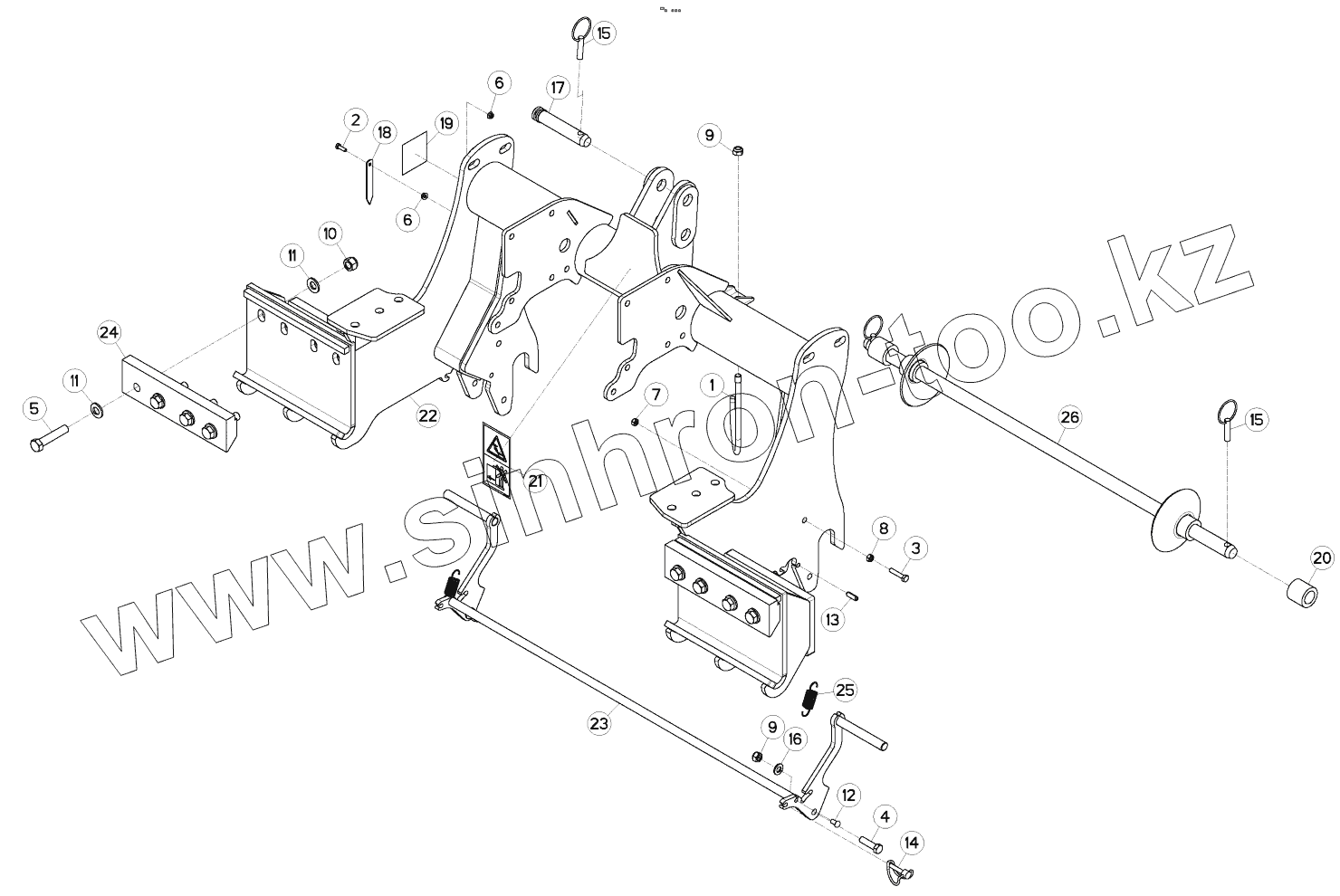

Каталог запасных частей к технике: KUHN PLANTER 3M. CONNECTING FRAME (COMPACT <=4,4M)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
CHALLENGER NSH (2011)
FB 119 (2012)
MULTI-LEADER T (2019)
OPTIMER 1000 (2012)
PLANTER 3M (2014)
PLANTER II (2007)
Схема
>
Не выбрано
CONNECTING FRAME (COMPACT <=4,4M)
CONNECTING FRAME (COMPACT 5-6M)
CONNECTING FRAME (COMPACT 9M)
CONNECTING FRAME
LINK PIN SET CAT.2
HOSE SUPPORT
INTERMEDIATE HOUSING D5412-D9999
INTERMEDIATE HOUSING D7167-J0000
FAN (PM20-D125)
FAN (PM20-D125)
FAN PM20 (BLOWER)
FAN (PM20)
VACUUM GAUGE
SUPPORT (AIR INFLATION INDICAT)
POWER TAKE OFF (REAR)
BLOWER SPEED KIT (470MIN)
BLOWER SPEED KIT (540MIN-1)
BLOWER SPEED KIT (870MIN-1)
BLOWER SPEED KIT (1000MIN-1)
DRIVE (HYDRAULIC)
2-WAY UNIT (5,00-6,00M)
2-WAY UNIT (9,00M)
2-WAY UNIT
"ADS" ANTI-DRIFT SYSTEM PM20
SINGLE BAR FRAME (5,00M)
SINGLE BAR FRAME (6,00M)
SINGLE BAR FRAME (9,00M)
PARKING STAND (ROW MARKER)
PARKING STAND (REAR)
PARKING STAND (FRONT)
RIDGE WHEEL
RIDGE WHEEL
DRIVE WHEEL ARM D5412-E0970
DRIVE WHEEL ARM E0625-J0000
DRIVE WHEEL ARM D5412-E0372
DRIVE WHEEL ARM E0625-J0000
DRIVE WHEEL ARM D5412-J0000
DRIVE WHEEL ARM D5412-D6656
DRIVE WHEEL ARM D6657-J0000
WHEEL 26X12 (LEFT)
WHEEL 26X12 (RIGHT)
WHEEL 6,5X15 (LEFT)
WHEEL 6,5X15 (RIGHT)
WHEEL 5X15 (LEFT)
WHEEL 5X15 (RIGHT)
SCRAPER (WHEEL)
SCRAPER (5X15)
FOOT - BRIDGE (FOLDING)
FOOT - BRIDGE (LEFT)
FOOT - BRIDGE (RIGHT)
GUARD (2ND)
ANGLE GEARBOX (FOOT - BRIDGE)
SPEED-CHANGE GEAR BOX D5412-D9999
SPEED-CHANGE GEAR BOX D7167-J0000
SEEDING UNIT FIXATION
SET OF GEARS (LIMITER)
SET OF GEARS (DECLUTCHING)
SET OF GEARS (DECLUTCHING)
COMPENSATION SPRING
SOWING COMPONENT
SOWING COMPONENT
SOWING COMPONENT
SOWING COMPONENT
DISCS 1 (DISTRIBUTOR)
DISCS 2 (DISTRIBUTOR)
HOPPER (25 L)
HOPPER (47 L)
TRASH REMOVER (GAUGE WHEELS)
TRASH REMOVER (OPENERS DISCS)
CLOD CLEANER (GAUGE)
CLOD CLEANER (OPENERS DISCS)
CLOD CLEANER L (OPENERS DISCS)
CLOD CLEANER (SWINGING ARM)
DRIVE WHEEL ARM (SWINGING ARM)
OPENERS DISCS
NARROW GAUGE WHEELS
WIDE GAUGE WHEELS
SHARE
SHARE (BEET)
SHARE (OPENERS DISCS)
EXTENDED COULTER (OPENERS DISC)
SHORT COULTER (MAIZE)
LONG COULTER (MAIZE)
LONG COULTER EXTENDED (MAIZE)
INTERMED. AXIAL RUBBER WHEEL
STAINLESS STEEL AXIAL PRESS WH
RUBBER V SHAPED ROLLER 2" G2
RUBBER V SHAPED ROLLER 2" G2 F
RUBBER V SHAPED ROLLER 1" G2
NOTCHED V STEEL ROLLER G2
SMOOTH V STEEL ROLLER G2
OTIFLEX ROLLER + SCRAPERS
OTIFLEX ROLLER 500 + SCRAPERS
COVERING SCRAPERS
MICRO SUPPLY->FURROW
MICRO SUPPLY->REAR
H MICROGRANULATOR SUPPLY TUBE
MICROGRANULATOR I-A 6X D5412-J0000
MICROGRANULATOR I-A 6X D5412-D6644
MICROGRANULATOR I-A 6X D6645-J0000
MICROGRANULATOR H 6X D5412-J0000
MICROGRANULATOR H 6X D5412-D6644
MICROGRANULATOR H 6X D6645-J0000
MICROGRANULATOR I-A 9X D5412-J0000
MICROGRANULATOR I-A 9X D5412-J0000
MICROGRANULATOR H 9X D5412-J0000
MICROGRANULATOR H 9X D5412-J0000
TRANSMISSION (MICROGRANULATOR)
HOPPER EXTENSION -MICRO- TRANS D5412-D6665
HOPPER EXTENSION -MICRO- TRANS D5979-D9999
HOPPER EXTENSION -MICRO- TRANS D7167-J0000
FERTILIZER UNIT 2X260L
FERTILIZER UNIT 2X260L
FERTILIZER UNIT GT1350L
FERTILIZER UNIT GT1350L
FERTILIZER UNIT GT1350L
MUDGUARD (DISTRIBUTOR)
FERTILIZER EXTENSION 12 ROWS D5412-D9999
FERTILIZER EXTENSION 12 ROWS D7167-J0000
TRANSMISSION (13-30TRS/100M) D5412-D9999
TRANSMISSION (13-30TRS/100M) D7167-J0000
SET OF GEARS 57DTS (8TRS/100M)
EXTENSION (2-WAY UNIT)
DIVIDER EXTENSIONS
DIVIDER EXTENSIONS
DISTRIBUTOR + VENTURI
DRAINAGE HATCH
VENTURI PNEUMATIC TRANSPORT
BENT TUBE-RINGED TUBE D5412-J0000
BENT TUBE-RINGED TUBE D5412-J0000
SUPPORT (BENT TUBE-RINGED TUBE) D5412-J0000
HOSES AND PIPES
DISTRIBUTION HEAD
DISTRIBUTION HEAD (12) O50
DISTRIBUTION HEAD (6) O75
CYCLONE O50
CYCLONE O75
HOSES AND PIPES
DISC COULTER (RIGHT)
DISC COULTER (LEFT)
SHOE COULTER (RIGHT)
SHOE COULTER (LEFT)
SHOE COULTER NS (RIGHT)
SHOE COULTER NS (LEFT)
OFF SETTING 160
OFF SETTING 88
FILLING AUGER (SUPPORT)
FILLING AUGER
HOSES AND PIPES
SIDE MARKERS 6M00 D5412-E0785
SIDE MARKERS 6M00 E0786-J0000
SIDE MARKERS D5412-J0000
LIMITER (ROW MARKER)
PAIR OFFSET BRACKETS
MARKER OFFSETS (328 MM)
MARKER EXTENSION
CONTROL 6M00-6M55 (ROW MARKER)
CONTROL 6M00 (ROW MARKER)
CONTROL 9M00 (ROW MARKER)
CONTROL 9M00 (ROW MARKER)
HECTAREMETER D5412-E0792
HECTAREMETER E0871-J0000
HECTOR 3000
SUPPORT (BOX)
BOX KMS208
BOX KMS412 (8R)
BOX KMS412 (12R)
BOX KMD112 (8R) D5412-E0583
BOX KMD112 (8R) E0341-J0000
BOX KMD112 (12R) D5412-E0583
BOX KMD112 (12R) E0341-J0000
WIRING HARNESS (TRAMLINING)
DECLUTCHING (HECTOR)
HOPPER BASE SENSOR (X1)
HOPPER BASE SENSOR (X2)
HOPPER BASE SENSOR (SPEED SENS)
WIRING HARNESS (2 PINS)
WIRING HARNESS (3 PINS)
WIRING HARNESS (BUS CAN 6 PINS)
WIRING HARNESS (8 PINS)
SUCTION (UNLOADING)
TRACK ERADICATORS
SIGNALLING
SIGNALLING
SUPPORT (SIGNALLING)
STICKERS
STICKERS
STICKERS
STICKERS
STICKERS
STICKERS
SET OF STICKERS (JP)
STICKERS
MISCELLANEOUS
TRANSMISSION A620577
TRANSMISSION A621753
TRANSMISSION A621737
TRANSMISSION 4700050
TRANSMISSION B0000875
TRANSMISSION B0000929
1
2
3
4
5
6
6
7
8
9
9
10
11
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
Позиция на иллюстрации
Заводской номер детали
Название детали
1
56861410
SUPPORT
2
80060620
HEXAGON HEAD SCREW FE/ZNXC3
3
80060839
HEXAGON HEAD SCREW FE/ZNXC3
4
80061287
HEXAGON HEAD SCREW INOX
5
80061636
HEXAGON HEAD SCREW FLZNNC
6
80200666
UNDERSERRAT.S.LOCK.NUT INOX
7
80200840
SELF-LOCKING NUT FE/ZNXC3
8
80200870
NUT FE/ZNXC3
9
80201240
SELF-LOCKING NUT FE/ZNXC3
10
80201630
SELF-LOCKING NUT FE/ZNXC3
11
80281600
CONICAL SPRING WASHER FLZNNC
12
80320800
ROUND HEAD RIVET
13
80450928
ROLL PIN FLZNNC
14
80560801
TUBE PIN FE/ZNXC3
15
80561040
SPRING COTTER PIN FE/ZNXC3
16
80251200
PLAIN WASHER INOX A2
17
A7160104
AXLE D25,4
18
FDR0163
POINTER
19
FLA2987
DECAL
20
FNB0734A
SPACER
21
H2404690
DECAL
22
K3608340
HITCH
23
N1505750
LATCH
24
N1511700
CLAMP
25
N00508A0
SPRING
26
VNB0324A
HITCH BAR
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
