Каталог запасных частей к технике: KUHN MULTI-LEADER T. HYDRAULIC TURNOVER C0000>G1032
1
1
2
3
4
5
6
7
7
8
8
9
9
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
18
19
20
21
22
23
24
25
26

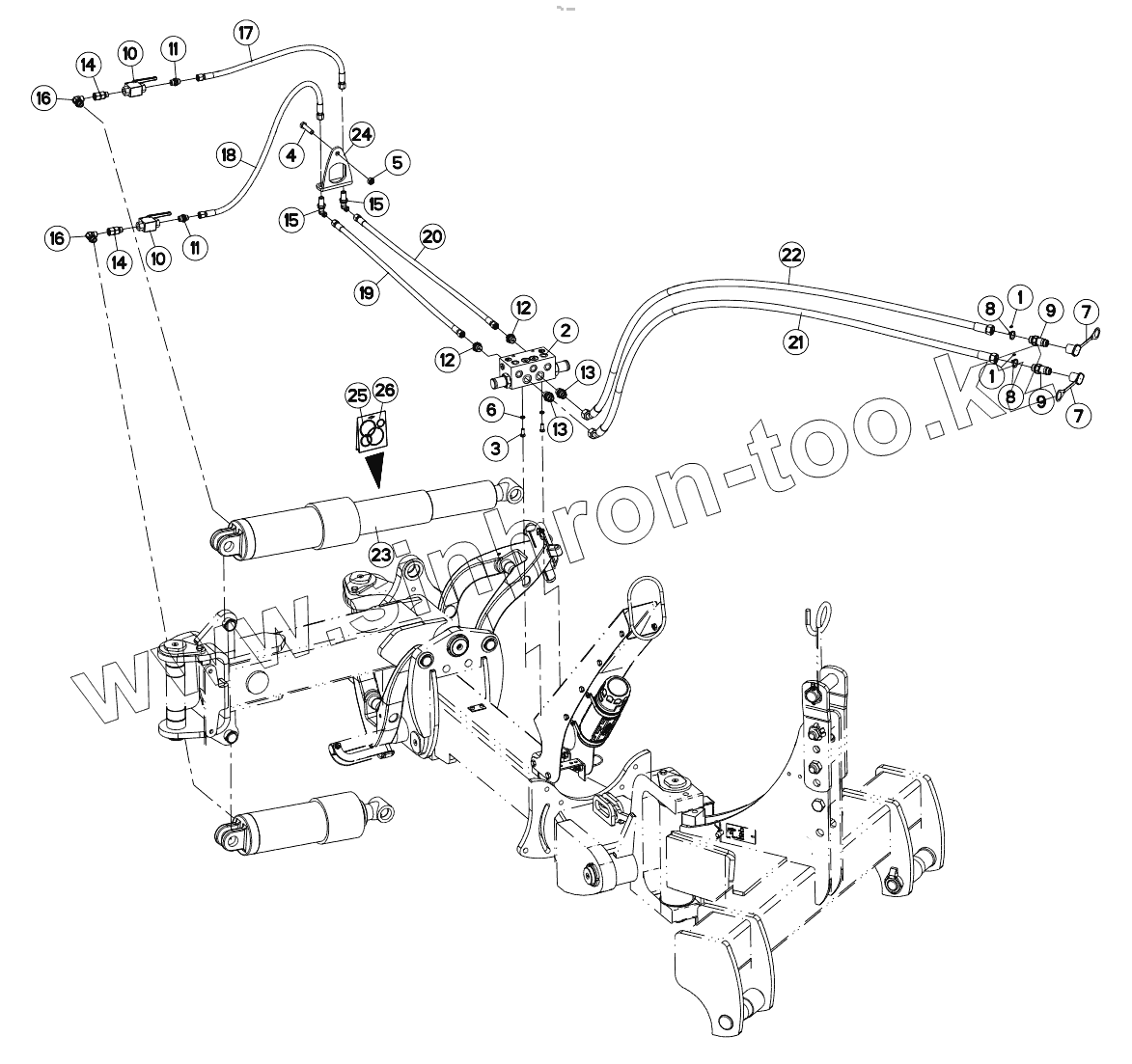

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 951209 | BUSHING | |
| 2 | 951409 | BLOCK | |
| 3 | 80060820 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 4 | 80061296 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 5 | 80201240 | SELF-LOCKING NUT FE/ZNXC3 | |
| 6 | 80270803 | SPRING WASHER M8 DIN127 | |
| 7 | 82300026 | CAP MALE CONNECTOR | |
| 8 | 83090093 | HOSE BINDER | |
| 9 | A4074018 | CONNECTOR MALE | |
| 10 | A4075005 | VALVE, BALL | |
| 11 | A4080401 | MALE STUD CONNECTOR | |
| 12 | A4080402 | MALE STUD CONNECTOR | |
| 13 | A4080430 | MALE STUD CONNECTOR | |
| 14 | A4080513 | SWIVEL CONNECTOR | |
| 15 | A4080750 | BULKHEAD ELBOW FE/ZNXC3 | |
| 16 | A4082615 | FITTING, HYDRAULIC, ELBOW | |
| 17 | A4921019 | HYDRAULIC HOSE | |
| 18 | A4921019 | HYDRAULIC HOSE | |
| 19 | A4921102 | HYDRAULIC HOSE | |
| 20 | A4921102 | HYDRAULIC HOSE | |
| 21 | A4923047 | HYDRAULIC HOSE | |
| 22 | A4923047 | HYDRAULIC HOSE | |
| 23 | H0204740 | CYLINDER, HYDRAULIC | |
| 24 | H0206040 | PLATE | |
| 25 | H0206650 | KIT, SEAL | |
| 26 | H0206670 | KIT, SEAL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
