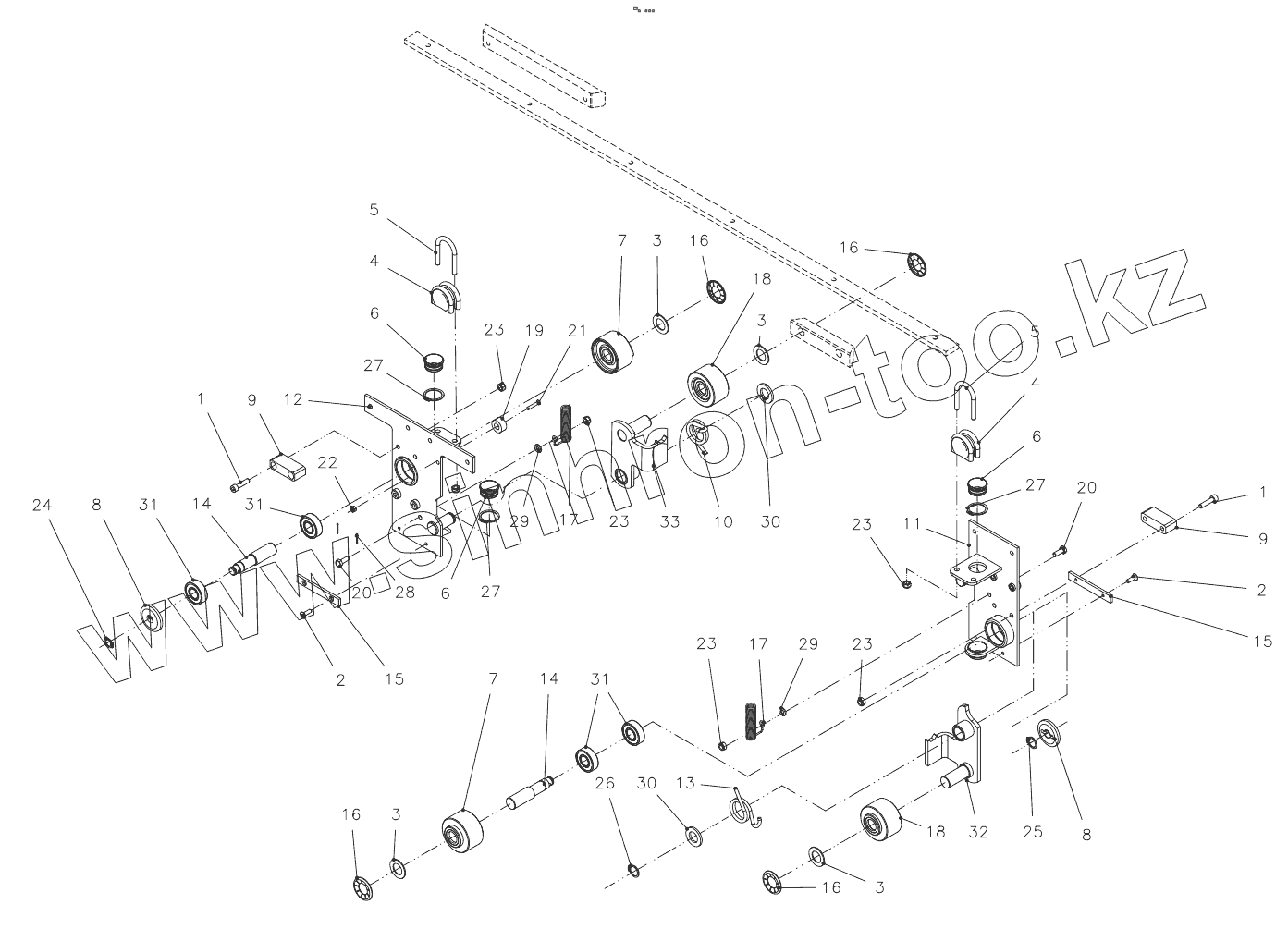

Каталог запасных частей к технике: KUHN FB 119. SKIDS
1
1
2
2
3
3
3
3
4
4
5
5
6
6
6
7
7
8
8
9
9
10
11
12
13
14
14
15
15
16
16
16
16
17
17
18
18
19
20
20
21
22
23
23
23
23
23
24
25
26
27
27
27
28
29
29
30
30
31
31
31
32
33
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 80080626 | SCREW, SOCKET HEAD FE/ZNXC3 | |
| 2 | 80540306 | GROOVED PIN FE/ZNXC3 | |
| 3 | Z4087080 | WASHER | |
| 4 | Z4087330 | PORCELAIN RING | |
| 5 | Z4517960 | BRACE | |
| 6 | Z4200040 | GUIDE | |
| 7 | Z4001080 | DRIVER ROLLER | |
| 8 | Z4009740 | SPROCKET | |
| 9 | Z4010100 | SLIDING BLOCK | |
| 10 | Z4109060 | SPRING | |
| 11 | Z4013030 | SKID LEFT | |
| 12 | Z4013170 | SKID RIGHT | |
| 13 | Z4145830 | TORSION SPRING | |
| 14 | Z4010580 | SHAFT | |
| 15 | Z4013800 | SLIDING STRIP | |
| 16 | 80271875 | LOCK WASHER FE/ZNXC3 | |
| 17 | Z4011650 | SPRING | |
| 18 | Z4001700 | DRIVER ROLLER | |
| 19 | Z4100080 | MAGNET D20MMX10X4 | |
| 20 | 80060619 | HEXAGON HEAD SCREW | |
| 21 | 80120421 | SLOTT.COUNT.HEAD SCRE.FE/ZNXC3 | |
| 22 | 80200401 | SELF-LOCKING NUT FE/ZNXC3 | |
| 23 | 80200640 | SELF-LOCKING NUT FE/ZNXC3 | |
| 24 | 80611200 | RETAINING RING | |
| 25 | 80581500 | RETAINING RING | |
| 26 | 80581600 | RETAINING RING | |
| 27 | 80582502 | RETAINING RING FLZNNC | |
| 28 | 80500112 | SPLIT PIN FE/ZNXC3 | |
| 29 | 80250611 | PLAIN WASHER FE/ZNXC3 | |
| 30 | 80251624 | PLAIN WASHER FE/ZNXC3 | |
| 31 | 81001535 | BALL BEARING | |
| 32 | Z4406060 | LEVER | |
| 33 | Z4406070 | LEVER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
