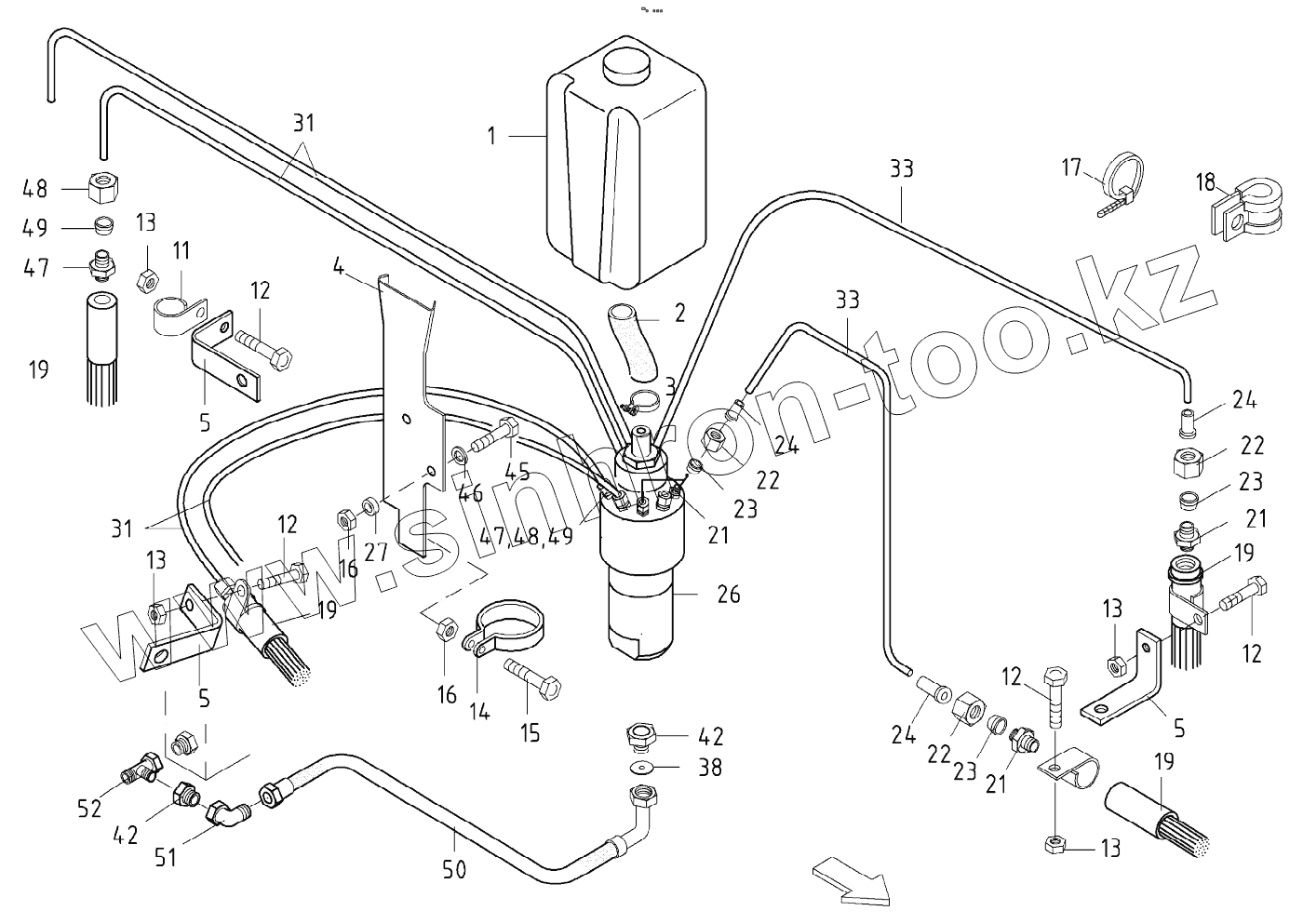

Каталог запасных частей к технике: KUHN FB 119. LUBRICATION
1
2
3
4
5
5
5
11
12
12
12
12
12
12
12
12
12
12
13
13
13
13
14
15
16
16
17
18
19
19
19
19
21
21
21
22
22
22
23
23
23
24
24
24
26
27
31
31
33
33
38
42
42
45
46
47
47
48
48
49
49
50
51
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | Z4001030 | TANK | |
| 2 | Z4006350 | PIPE | |
| 3 | 83090073 | COLLAR | |
| 4 | Z4099980 | BRACKET | |
| 5 | Z4400090 | BRACKET | |
| 11 | Z4087020 | PIPE CLIP | |
| 12 | 80060620 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 12 | 80060625 | HEX BOLT FE/ZNXC3 | |
| 13 | 80200640 | SELF-LOCKING NUT FE/ZNXC3 | |
| 14 | 83090245 | COLLAR FE/ZNXC3 | |
| 15 | 80060833 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 16 | 80200817 | SELF-LOCKING NUT FLZNNC | |
| 17 | Z4087150 | CABLE BINDER | |
| 18 | Z4000490 | CLAMP | |
| 19 | Z4000590 | BRUSH | |
| 21 | Z4005620 | NIPPLE | |
| 22 | A4080202 | NUT | |
| 23 | Z4000610 | CUTTING RING | |
| 24 | Z4000360 | STIFFENING SLEEVE | |
| 26 | Z4082580 | PUMP | |
| 27 | Z1197770 | PIPE, SPACING | |
| 31 | Z4080420 | POLYAMIDE TUBE | |
| 33 | Z4012080 | POLYAMIDE TUBE | |
| 38 | Z4087500 | SCREEN | |
| 40 | Z4080310 | PIPE CLIP | |
| 42 | Z4003800 | REDUCING PIECE | |
| 45 | 80060891 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 46 | 80250970 | PLAIN WASHER FE/ZNXC3 | |
| 47 | Z4000380 | SOCKET/ADAPTER | |
| 48 | A4080201 | NUT | |
| 49 | Z4000370 | CUTTING RING | |
| 50 | Z4087610 | HYDR.HOSE | |
| 51 | A4082711 | AJUSTABLE MALE STUD ELBOW | |
| 52 | Z4088440 | THREADED UNION |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
