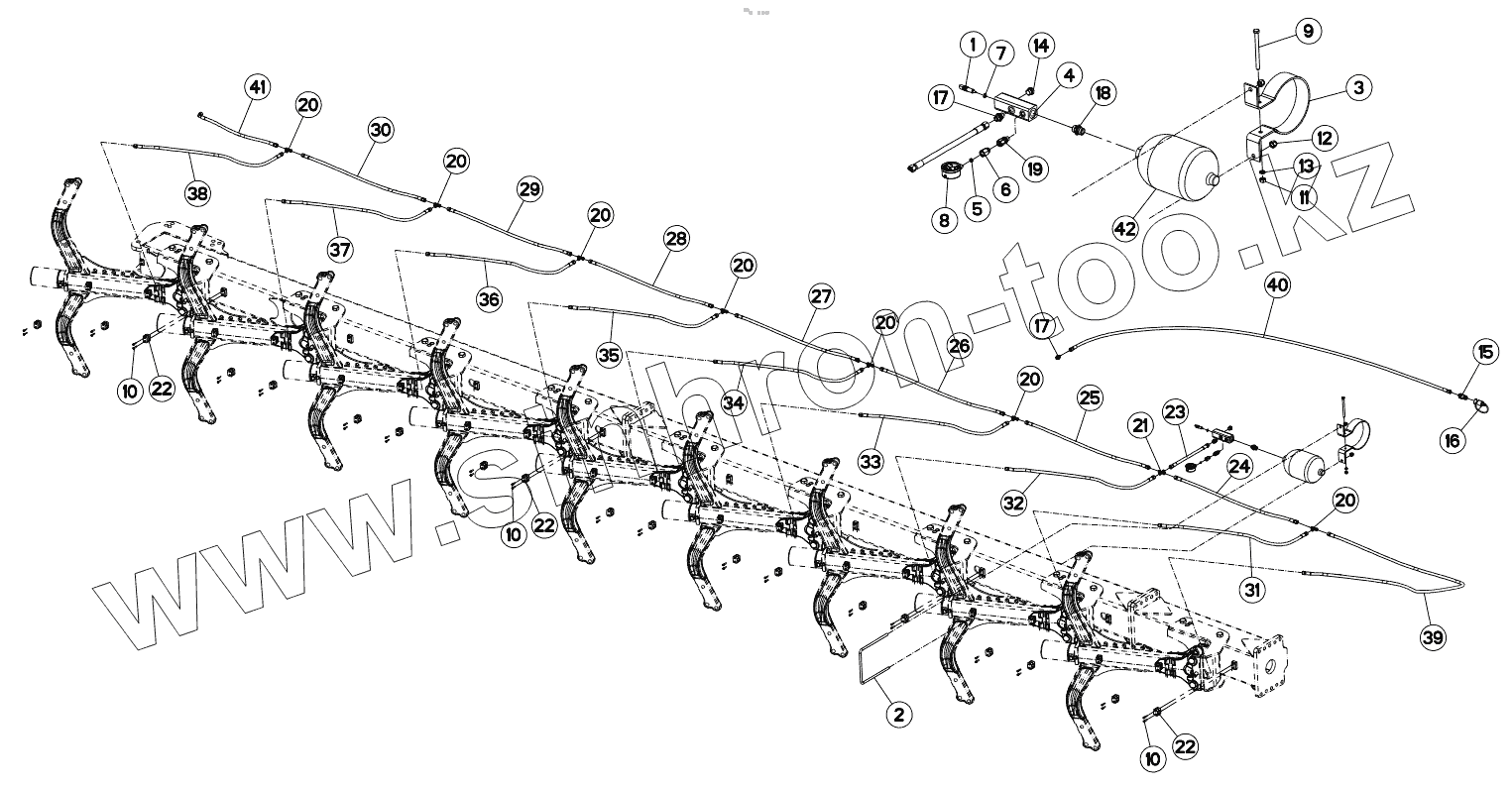

Каталог запасных частей к технике: KUHN CHALLENGER NSH. HYDRAULIC CHG13 (FRONT) CHG13H94: A0001-F0000
1
2
3
4
5
6
7
8
9
10
10
10
11
12
13
14
15
16
17
17
18
19
20
20
20
20
20
20
20
21
22
22
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 135011 | NEEDLE VALVE | |
| 2 | 140303 | U-BOLT | |
| 3 | 227567 | MOUNTING | |
| 4 | 344104 | FITTING | |
| 5 | 900845 | SEAL | |
| 6 | 900847 | FITTING, HYDRAULIC, UNION | |
| 7 | 920037 | RING R D 10,52 | |
| 8 | 921048 | MANOMETER | |
| 9 | 80061066 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 10 | 80080626 | SCREW, SOCKET HEAD FE/ZNXC3 | |
| 11 | 80201070 | NUT FE/ZNXC3 | |
| 12 | 80201230 | SELF-LOCKING NUT FE/ZNXC3 | |
| 13 | 80271084 | SPRING LOCK WASHER | |
| 14 | A4061802 | PLUG + SEAL | |
| 15 | A4074017 | CONNECTOR MALE | |
| 16 | 82300026 | CAP MALE CONNECTOR | |
| 17 | A4080401 | MALE STUD CONNECTOR | |
| 18 | A4080430 | MALE STUD CONNECTOR | |
| 19 | A4080518 | ADAPTER ZBC | |
| 20 | A4081002 | EQUAL TEE ZBC | |
| 21 | A4081203 | EQUAL CROSS FE/ZNXC3 | |
| 22 | A7260027 | CLAMP D.18 | |
| 23 | A4921015 | HYDRAULIC HOSE | |
| 24 | A4921023 | HYDRAULIC HOSE | |
| 25 | A4921023 | HYDRAULIC HOSE | |
| 26 | A4921023 | HYDRAULIC HOSE | |
| 27 | A4921023 | HYDRAULIC HOSE | |
| 28 | A4921023 | HYDRAULIC HOSE | |
| 29 | A4921023 | HYDRAULIC HOSE | |
| 30 | A4921023 | HYDRAULIC HOSE | |
| 31 | A4921024 | HYDRAULIC HOSE | |
| 32 | A4921024 | HYDRAULIC HOSE | |
| 33 | A4921024 | HYDRAULIC HOSE | |
| 34 | A4921024 | HYDRAULIC HOSE | |
| 35 | A4921024 | HYDRAULIC HOSE | |
| 36 | A4921024 | HYDRAULIC HOSE | |
| 37 | A4921024 | HYDRAULIC HOSE | |
| 38 | A4921024 | HYDRAULIC HOSE | |
| 39 | A4921037 | HYDRAULIC HOSE | |
| 40 | A4921052 | HYDRAULIC HOSE | |
| 41 | A4921067 | HYDRAULIC HOSE | |
| 42 | 900490 | ACCUMULATOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
