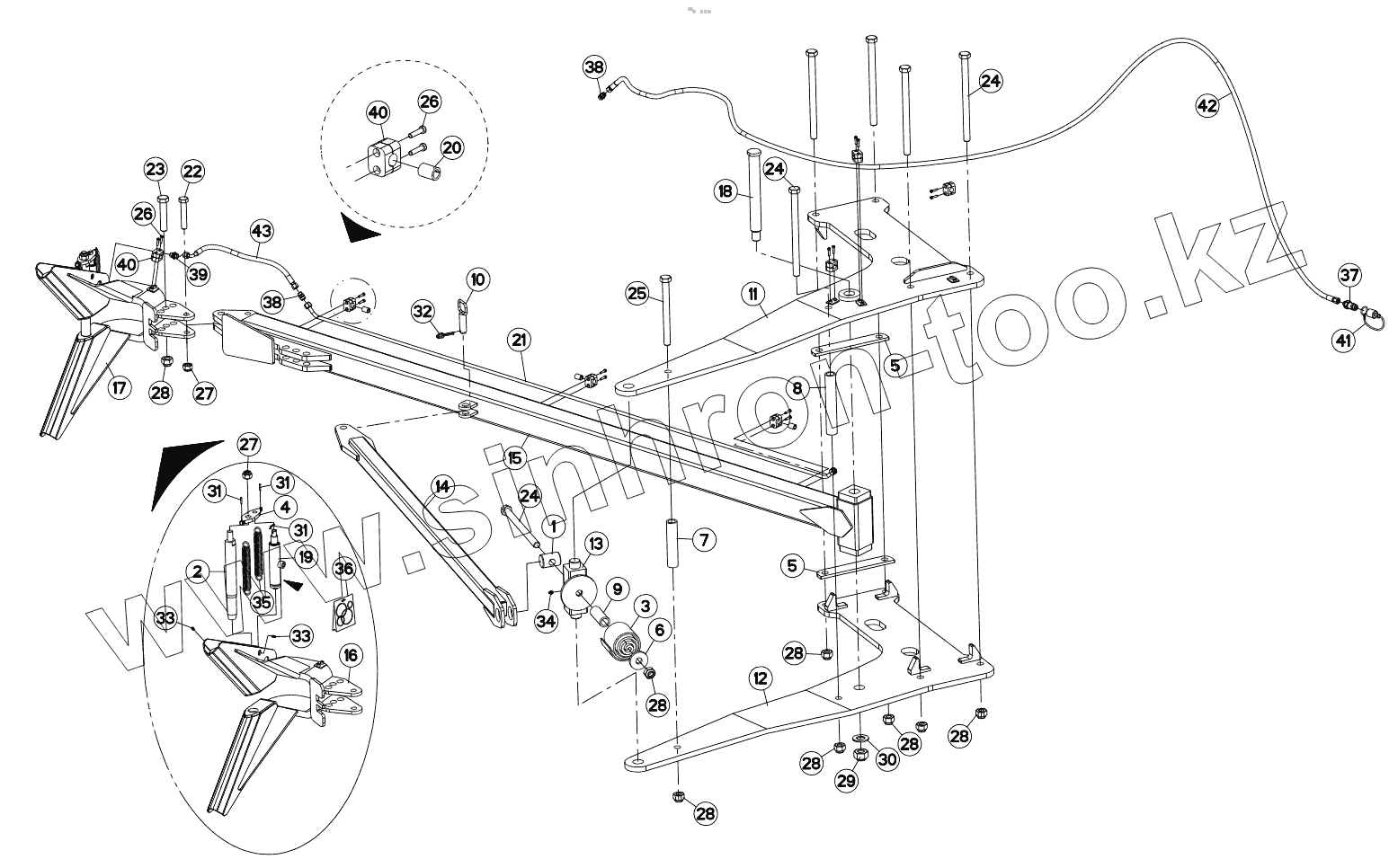

Каталог запасных частей к технике: KUHN CHALLENGER NSH. FURROW PRESS ARM CHALLENGER: A0001-F0000
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
24
25
26
26
27
27
28
28
28
28
28
28
28
29
30
31
31
31
32
33
33
34
35
36
37
38
38
39
40
40
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 130342 | AXE TIRANT | |
| 2 | 131036 | FINGER | |
| 3 | 194107 | SPRING | |
| 4 | 211228 | PLATE | |
| 5 | 212461 | FLAT | |
| 6 | 445475 | WASHER | |
| 7 | 445476 | SPACER | |
| 8 | 445561 | SPACER | |
| 9 | 445610 | SPACER | |
| 10 | 582262 | PIN | |
| 11 | 582434 | SUPPORT | |
| 12 | 582435 | SUPPORT | |
| 13 | 582538 | SUPPORT | |
| 14 | 582539 | TIE ROD | |
| 15 | 583708 | ARM | |
| 16 | 583710 | MOUNTING | |
| 17 | 583711 | KIT DE LARGAGE BOT | |
| 18 | 720181 | PIN | |
| 19 | 951184 | CYLINDER | |
| 20 | 951197 | SHEATHE | |
| 21 | 951506 | PIPE | |
| 22 | 80062080 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 23 | 80062489 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 24 | 80062497 | HEXAGON HEAD SCREW FLZNNC | |
| 25 | 80062498 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 26 | 80080626 | SCREW, SOCKET HEAD FE/ZNXC3 | |
| 27 | 80202030 | SELF-LOCKING NUT FE/ZNXC3 | |
| 28 | 80202447 | SELF-LOCKING NUT | |
| 29 | 80203031 | SELF-LOCKING NUT | |
| 30 | 80253034 | PLAIN WASHER FE/ZNXC3 | |
| 31 | 80450499 | ROLL PIN INOX | |
| 32 | 80570477 | SPRING COTTER PIN FE/ZNXC3 | |
| 33 | 82200616 | TAPPING GREASE NIPPLE FE/ZNXC3 | |
| 34 | 82201016 | SELF TAPPING GREASE NIPPLE | |
| 35 | 951185 | SPRING | |
| 36 | 951190 | SEALS PACKET 951184 | |
| 37 | A4074017 | CONNECTOR MALE | |
| 38 | A4080350 | STRAIGHT COUPLING ZBC | |
| 39 | A4080401 | MALE STUD CONNECTOR | |
| 40 | A7260027 | CLAMP D.18 | |
| 41 | 82300026 | CAP MALE CONNECTOR | |
| 42 | A4921054 | HYDRAULIC HOSE | |
| 43 | A4921066 | HYDRAULIC HOSE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
