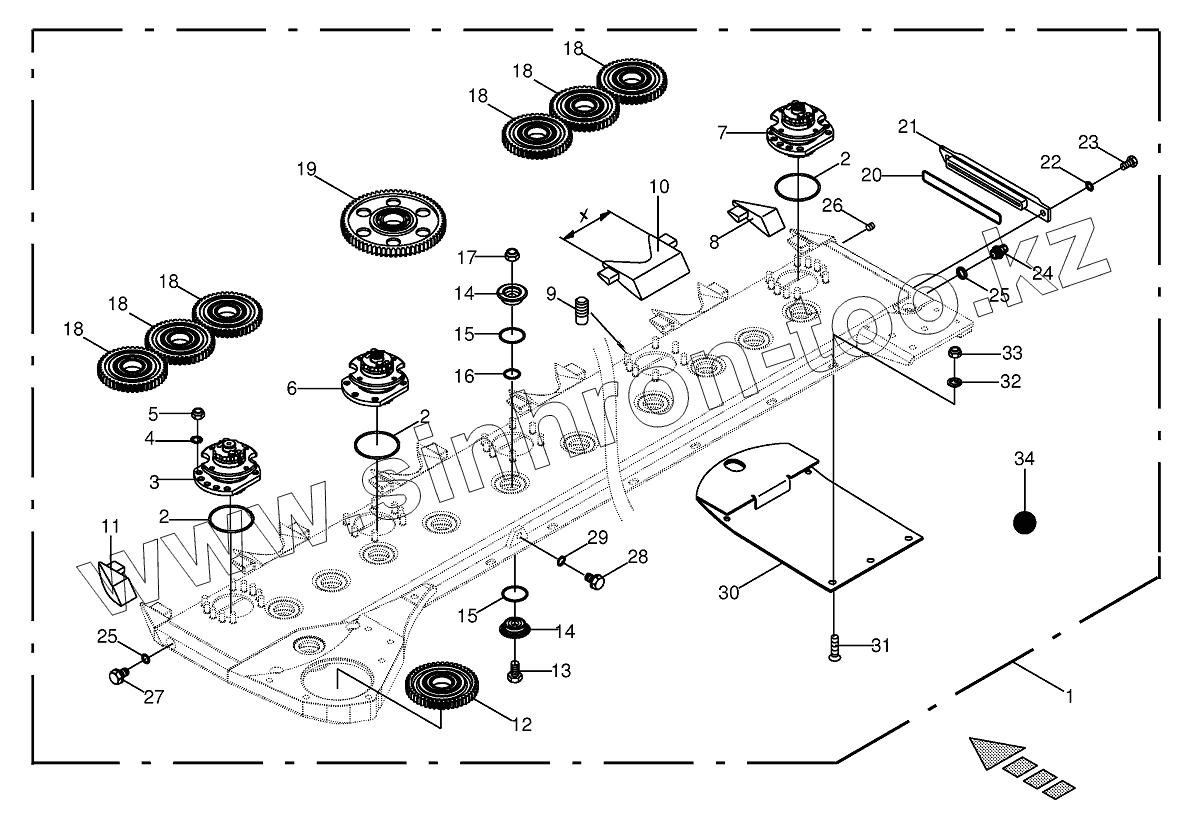

Каталог запасных частей к технике: KRONE X-Disc 6200. Cutter bar - shear protection 812001 - 824610
/6.gif)
1
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
17
18
18
18
18
18
18
19
20
21
22
23
24
25
25
26
27
28
29
30
31
31
32
33
34
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 200311300 | 200311300 | Bearing housing-right hand direction of rotation | |
| 1 | 200332020 | Cutter bar-shear protection-cpl. | |
| 2 | 009375760 | O-ring | |
| 3 | 200311280 | Bearing housing-right hand direction of rotation | |
| 4 | 900001230 | Detent edged washer | |
| 5 | 009087010 | Locknut | |
| 6 | 200311320 | Bearing housing-left hand direction of rotation | |
| 7 | 200311290 | Bearing housing-left hand direction of rotation | |
| 8 | 002530163 | Sheet edge-right | |
| 9 | 009064040 | Weld. pin | |
| 10 | 002535470 | Sheet edge | |
| 11 | 002530153 | Sheet edge-left | |
| 12 | 200331960 | Spur gear | |
| 13 | 009003351 | Hex head bolt | |
| 14 | 002530201 | Clamping piece | |
| 15 | 009375790 | O-ring | |
| 16 | 900001090 | O-ring | |
| 17 | 009096110 | Self-locking nut | |
| 18 | 200331970 | Spur gear | |
| 19 | 002530300 | Spur gear | |
| 20 | 009375680 | O-ring | |
| 21 | 002534214 | Cover | |
| 22 | 009099091 | Detent edged washer | |
| 23 | 009006340 | Hex head bolt | |
| 24 | 009198111 | Breather | |
| 25 | 009377270 | Gasket ring | |
| 26 | 009060310 | Screw plug | |
| 27 | 009060101 | Screw plug | |
| 28 | 009060071 | Screw plug | |
| 29 | 009377210 | Gasket ring | |
| 30 | 002534801 | Skid | |
| 31 | 009040631 | Countersunkscrew | |
| 31 | 009040711 | Countersunkscrew | |
| 32 | 009099101 | Detent edged washer | |
| 33 | 009087010 | Locknut | |
| 34 | 009261010 | Oil-Id.-no.=1ltr |
