Каталог запасных частей к технике: KRONE KW 8.50-8. Guard
1
2
2
3
3
4
4
5
5
5
5
6
6
7
8
8
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
13
14
14
15
16
17
18
18
19
19
20
20
21
21
22
22
23
24
25
26
26
27
27
28
29
30
31
32
33
33

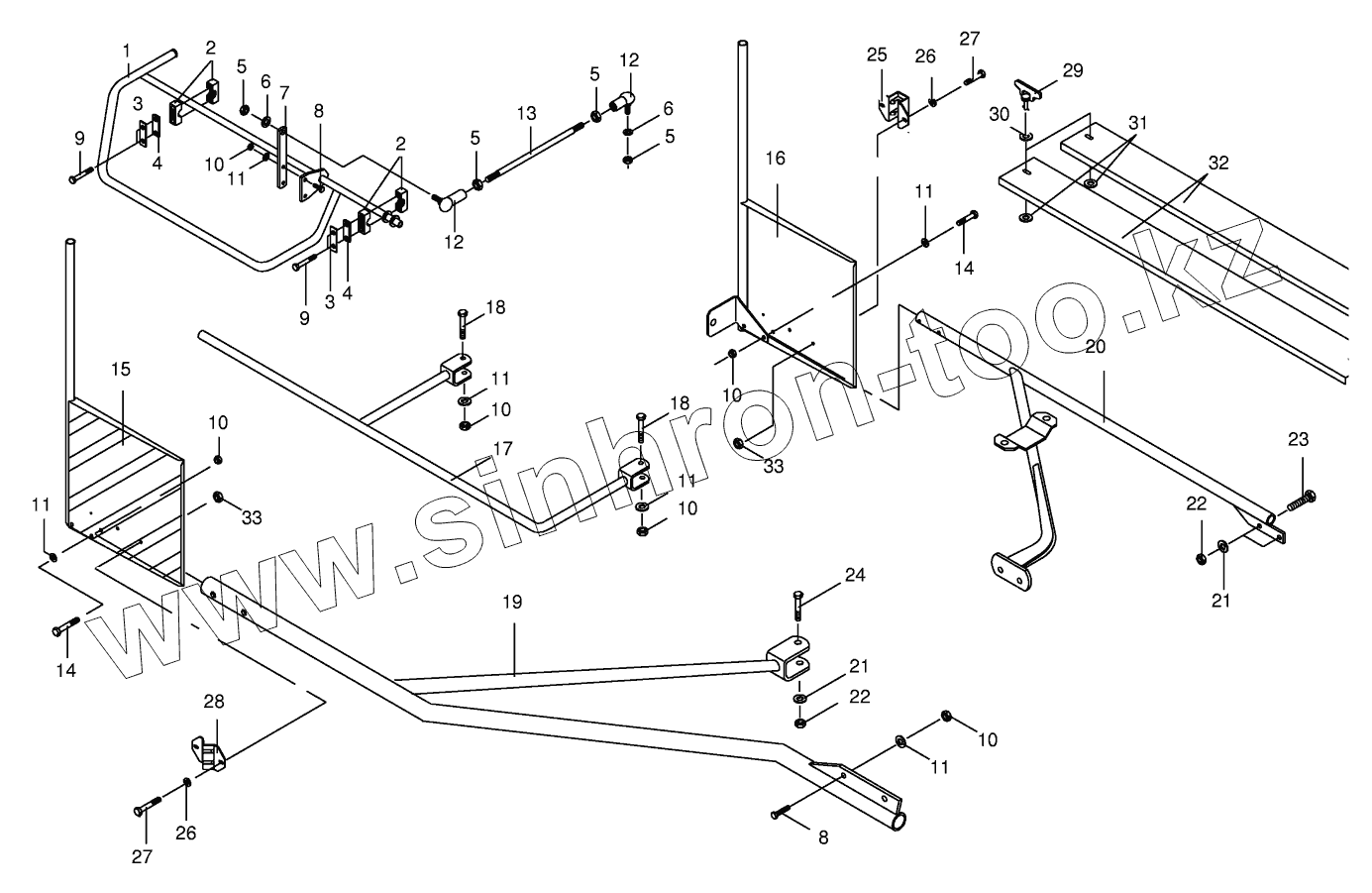

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00 260 157 0 | Guard -outside | |
| 2 | 00 925 128 0 | Tube clamp -2 halves | |
| 3 | 00 250 850 0 | Locking plate | |
| 4 | 00 925 125 1 | Cover plate | |
| 5 | 00 908 019 1 | Hex nut | |
| 6 | 00 910 013 0 | Spring washer | |
| 7 | 00 260 149 0 | Strap | |
| 8 | 00 900 637 0 | Hex head bolt | |
| 9 | 00 901 437 0 | Hex head bolt | |
| 10 | 00 908 758 0 | Locknut | |
| 11 | 00 910 414 0 | Washer | |
| 12 | 00 927 150 0 | Link | |
| 13 | 00 260 148 0 | Threaded rod | |
| 14 | 00 901 434 0 | Hex head bolt | |
| 15 | 00 260 155 0 | Guard -front right/back left | |
| 16 | 00 260 154 0 | Guard -front left/back right | |
| 17 | 00 260 156 0 | Guard -middle | |
| 18 | 00 901 435 0 | Hex head bolt | |
| 19 | 00 260 152 0 | Guard -left front | |
| 19 | 00 260 153 0 | Guard -right front | |
| 20 | 00 260 151 0 | Guard -back right | |
| 20 | 00 260 150 0 | Guard -back left | |
| 21 | 00 910 506 1 | Washer | |
| 22 | 00 908 711 1 | Locknut | |
| 23 | 00 900 657 0 | Hex head bolt | |
| 24 | 00 900 304 1 | Hex head bolt | |
| 25 | 00 145 912 3 | Illumination support -back | |
| 26 | 00 910 413 0 | Washer | |
| 27 | 00 900 614 0 | Hex head bolt | |
| 28 | 00 146 605 2 | Illumination support -front | |
| 29 | 00 924 244 0 | Wing nut | |
| 30 | 00 910 326 0 | Washer | |
| 31 | 00 924 251 0 | Retaining washer | |
| 32 | 00 153 862 0 | Lateral guard | |
| 33 | 00 908 706 0 | Locknut |
