Каталог запасных частей к технике: KRONE ECollect 753, 903, 1053. Hydraulics-locking mechanism
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
4
4
4
5
5
6
7
8
9
10
10
11
12
12
13
13
14
15
15
16
17
18
19
20

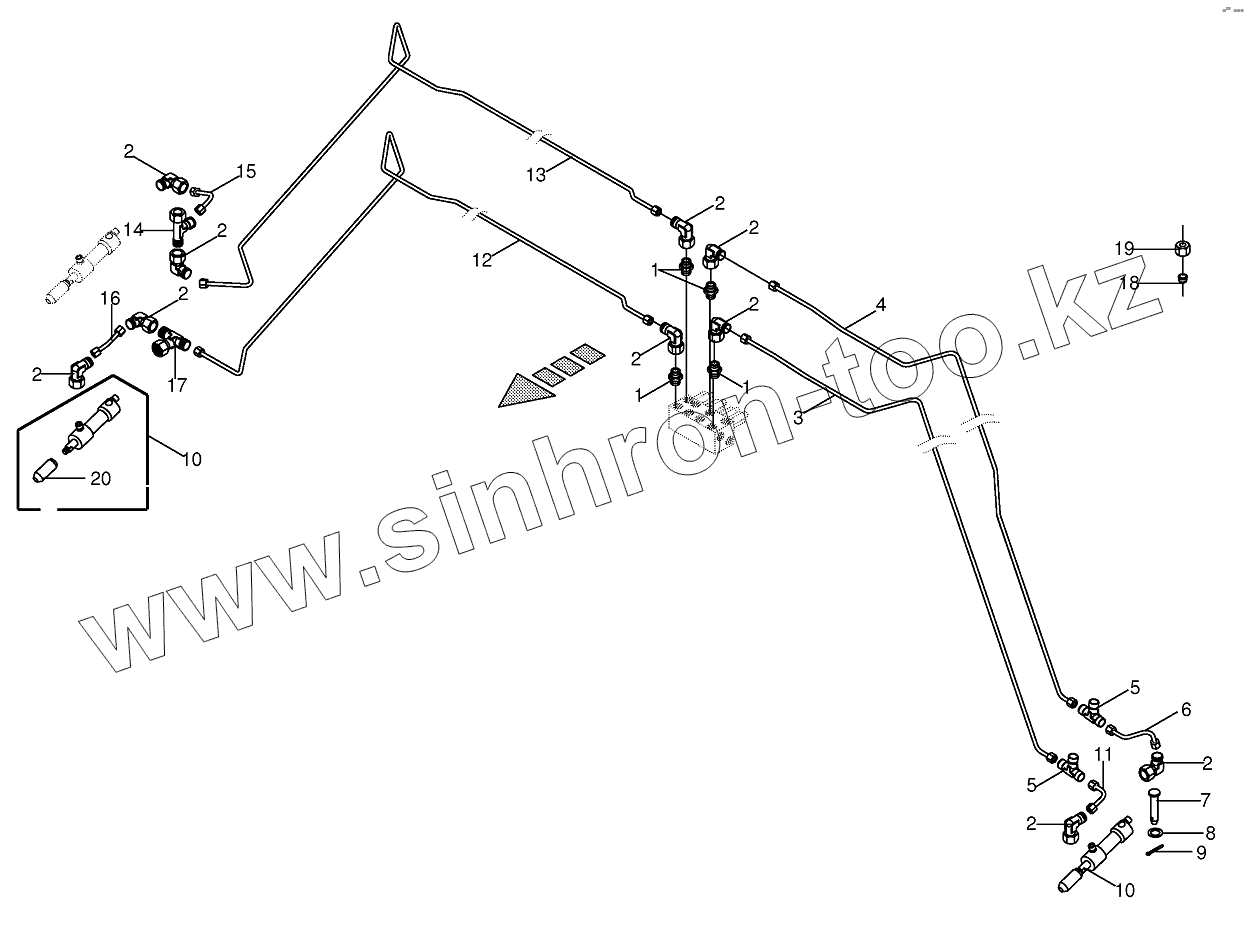

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 009199560 | 009199560 | Sealing set | |
| 1 | 009199640 | Male connector | |
| 2 | 009199650 | Angle lug | |
| 3 | 200910592 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 3 | 200910752 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 4 | 200910602 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 4 | 200910762 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 5 | 009199690 | T-connector | |
| 6 | 200910561 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 7 | 002777070 | Pin with small head | |
| 8 | 009103031 | Washer | |
| 9 | 009120671 | Cotter pin | |
| 10 | 009185491 | Hydraulic cylinder | |
| 11 | 200910551 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 12 | 200910682 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 12 | 200910732 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 13 | 200910672 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 13 | 200910742 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 14 | 009199670 | Adjustable L connection | |
| 15 | 200910651 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 16 | 200910661 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 17 | 009199680 | T connector | |
| 18 | 009199610 | Cutting ring | |
| 19 | 009199620 | Nozzle disc cap | |
| 20 | 270033600 | Piston rodug |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
