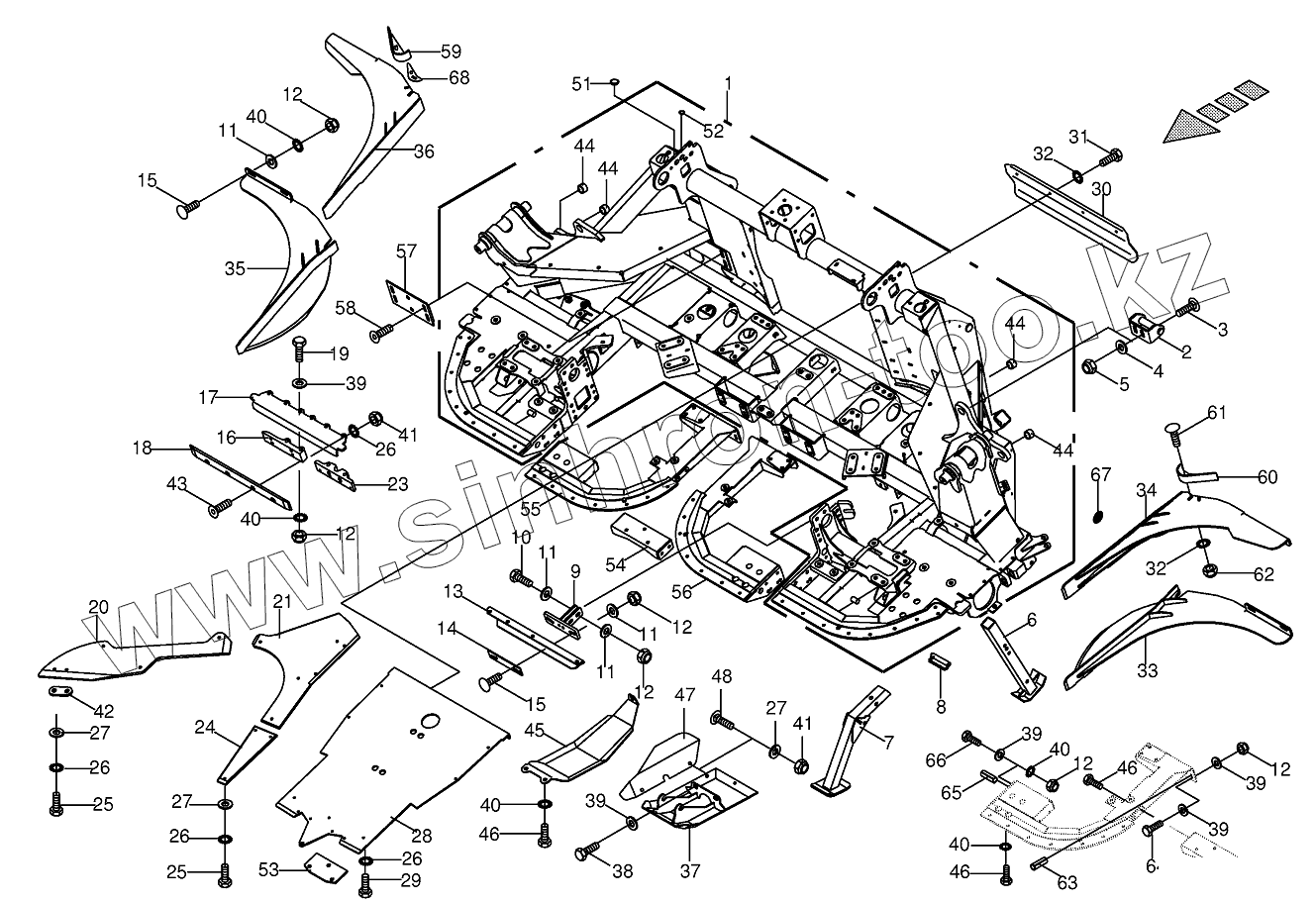

Каталог запасных частей к технике: KRONE ECollect 753, 903, 1053. Frame central/Mounting parts 784901-800000
1
1
2
3
4
5
6
6
7
8
9
10
11
11
11
11
12
12
12
12
12
12
13
13
13
13
13
14
15
15
16
17
17
18
18
19
20
20
20
20
20
21
23
24
25
25
25
25
25
26
26
26
26
26
27
27
27
28
29
29
30
30
31
32
32
33
33
33
34
35
36
37
38
39
39
39
39
39
39
40
40
40
40
40
40
41
41
42
43
43
44
44
44
44
45
46
46
46
46
47
47
48
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
66
67
68
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200930270 | Frame-middle | |
| 1 | 200927150 | Frame-middle | |
| 2 | 003522902 | Pendulum frame retainer-below | |
| 3 | 009047230 | Coach bolt | |
| 4 | 009103620 | Washer | |
| 5 | 009087190 | Locknut | |
| 6 | 200908172 | Supporting leg-back | |
| 7 | 200908271 | Supporting leg-front | |
| 8 | 009170050 | Spring stick bolt | |
| 9 | 200906720 | Support | |
| 10 | 009014540 | Hex head bolt | |
| 11 | 009106090 | Washer | |
| 12 | 009087010 | Locknut | |
| 13 | 200907081 | Screw-on profile-left | |
| 13 | 200907181 | Screw-on profile-left | |
| 13 | 200907091 | Screw-on profile-right | |
| 13 | 200907171 | Screw-on profile-right | |
| 14 | 200906741 | Plating | |
| 15 | 009047791 | Coach bolt | |
| 16 | 200915601 | Position adapter retrainer | |
| 17 | 200915592 | Position adapter angle | |
| 17 | 200915582 | Position adapter angle | |
| 18 | 200915351 | Position adapter bar | |
| 18 | 200915361 | Position adapter bar | |
| 19 | 009003090 | Hex head bolt | |
| 20 | 200915670 | Guide rail-right | |
| 20 | 200915690 | Guide rail-right middle | |
| 20 | 200915680 | Guide rail-left | |
| 20 | 200915700 | Guide rail-left middle | |
| 21 | 200928940 | Junction plate-right/left | |
| 23 | 200930260 | Position adapter retrainer | |
| 24 | 200907050 | Guide disc-right/left | |
| 25 | 009006340 | Hex head bolt | |
| 25 | 009006360 | Hex head bolt | |
| 25 | 009006370 | Hex head bolt | |
| 26 | 009099091 | Detent edged washer | |
| 27 | 009104140 | Washer | |
| 28 | 200908081 | Guide plate-middle | |
| 29 | 009002722 | Hex head bolt | |
| 29 | 009006320 | Hex head bolt | |
| 30 | 003527481 | Sealing plate | |
| 31 | 009006140 | Hex head bolt | |
| 32 | 009099081 | Detent edged washer | |
| 33 | 200906932 | Scraper-below left | |
| 34 | 200906842 | Scraper-top left | |
| 35 | 200906922 | Scraper-below right | |
| 36 | 200906832 | Scraper-top right | |
| 37 | 200906981 | Skid | |
| 38 | 009006570 | Hex head bolt | |
| 39 | 009105061 | Washer | |
| 40 | 009099101 | Detent edged washer | |
| 41 | 009087580 | Locknut | |
| 42 | 200930440 | Spacer plate | |
| 43 | 900003520 | Countersunkscrew | |
| 43 | 009040500 | Countersunkscrew | |
| 44 | 009349460 | Bearing bush | |
| 45 | 200928930 | Gearbox cover-middle | |
| 46 | 009006530 | Hex head bolt | |
| 47 | 200921480 | Broadening-left | |
| 47 | 200921470 | Broadening-right | |
| 48 | 009048501 | Coach bolt | |
| 51 | 009250240 | Sealing plug | |
| 52 | 009524330 | Sealing plug | |
| 53 | 200930460 | Spacer plate | |
| 54 | 200929080 | Support-middle | |
| 55 | 200927500 | Gearbox bow-right middle | |
| 56 | 200927510 | Gearbox bow-left middle | |
| 57 | 200929091 | Intermediate plate | |
| 58 | 009040260 | Countersunkscrew | |
| 59 | 200930690 | Stripper-right | |
| 60 | 200930700 | Stripper-left | |
| 61 | 009047322 | Coach bolt | |
| 62 | 009087060 | Locknut | |
| 63 | 009125400 | Roll pin | |
| 64 | 009006580 | Hex head bolt | |
| 65 | 009125120 | Roll pin | |
| 66 | 009006560 | Hex head bolt | |
| 66 | 009014510 | Hex head bolt | |
| 67 | 009246340 | Side light-yellow-self- adhesive | |
| 68 | 200931060 | Spacer plate |
