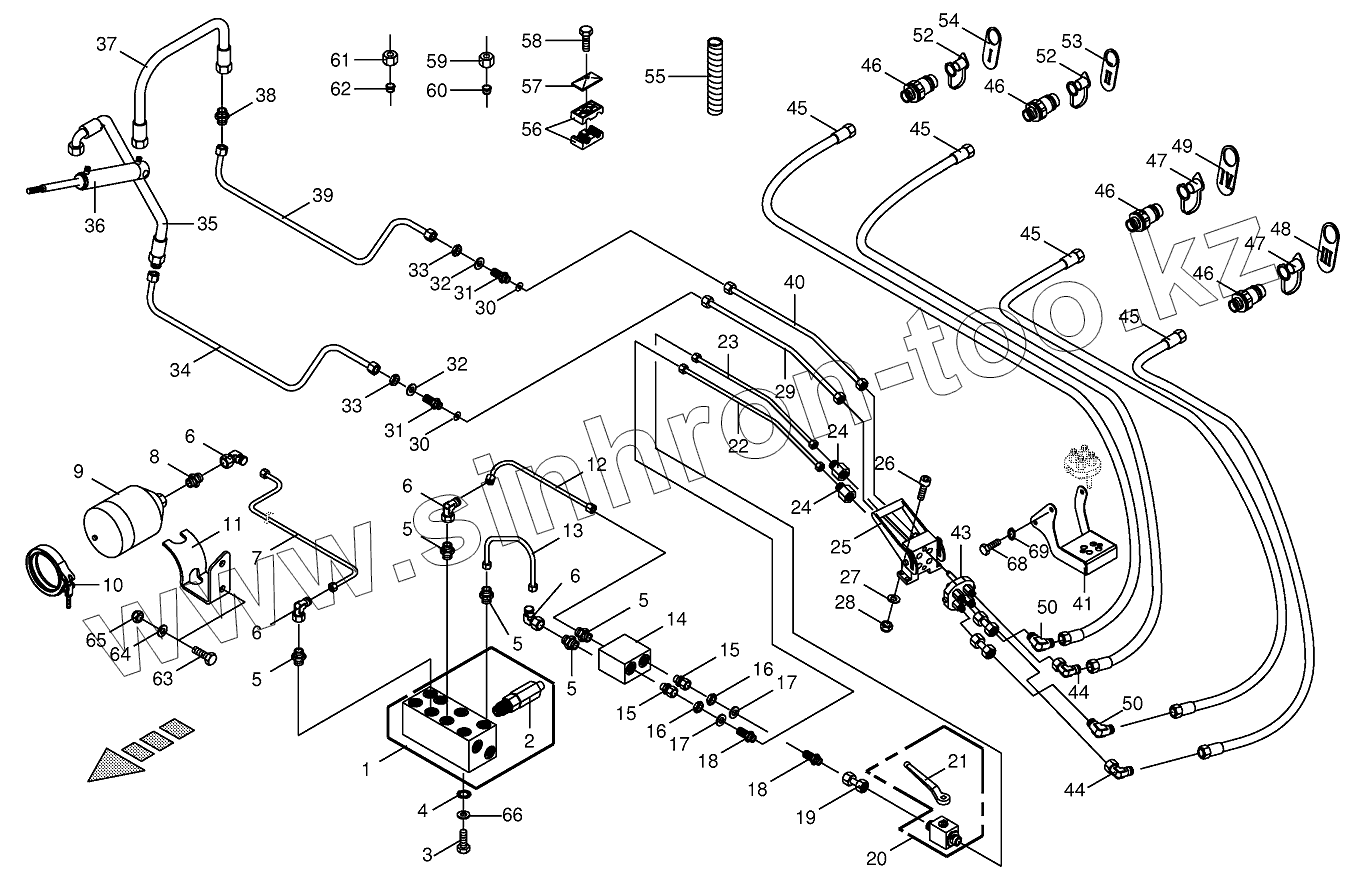

Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Hydraulics - control bloc 820001 - 855000

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
4
5
5
5
5
5
6
6
6
6
7
8
9
10
11
12
13
14
15
15
16
16
17
17
18
18
19
20
21
22
23
25
26
27
28
29
30
30
31
31
32
32
33
33
34
35
36
37
38
39
40
41
43
44
44
45
45
45
45
46
46
46
46
47
47
48
49
50
50
52
52
53
54
55
56
56
56
57
58
58
58
58
58
58
58
58
58
59
60
61
62
63
64
65
66
68
69
Позиция на иллюстрации Заводской номер детали Название детали
270082170 270082170 Sealing set
270034650 270034650 Sealing set
1 270082170 Sealing set
1 270003000 Control bloc
2 270006320 Sequence valve
3 009006140 Hex head bolt
4 009099081 Detent edged washer
5 009199640 Male connector
6 009199650 Angle lug
7 200922400 Hydraulic line-incl. nozzle disc cap, cutting ring
8 900000480 Male connector
9 009190650 Hydraulic-reservoir
10 009240300 Joint bolt-hose clamp
11 200922380 Accumulator support
12 200916461 Hydraulic line-incl. nozzle disc cap, cutting ring
13 200916451 Hydraulic line-incl. nozzle disc cap, cutting ring
14 270033590 Flow control valve
15 009193030 Male connector
16 009085060 Hex nut-low form
17 009105102 Washer
18 009199630 Straight 2-way connector
19 270029290 Double nipple
20 270033560 Ball cock
21 009196640 Hand lever-incl. screw, washer
22 200922430 Hydraulic line-incl. nozzle disc cap, cutting ring
23 200922440 Hydraulic line-incl. nozzle disc cap, cutting ring
25 009193300 Multi-clutch-fixed half
26 009030771 Allen screw
27 009104130 Washer
28 009087060 Locknut
29 200922410 Hydraulic line-incl. nozzle disc cap, cutting ring
30 009193210 Throttling disc
31 009210871 Straight 2-way connector
32 009107181 Supporting disc
33 009085242 Hex nut-low form
34 200916491 Hydraulic line-incl. nozzle disc cap, cutting ring
35 009210031 High pressure hose line
36 270003840 Hydraulic cylinder
37 009210121 High pressure hose line
38 009210541 Connector
39 200916481 Hydraulic line-incl. nozzle disc cap, cutting ring
40 200922420 Hydraulic line-incl. nozzle disc cap, cutting ring
41 200939101 Support
42 009006140 Hex head bolt
43 009193310 Multi-clutch-loose half
44 009210671 Angle lug
45 009209690 High pressure hose line
46 009193220 Connector plug
47 009211711 Dust cap-red
48 003601640 Plate-3
49 003601670 Plate-4
50 009210661 Elbow union
51 002307430 Double nipple
52 009212631 Dust cap-blue
53 003601630 Plate-2
54 003601620 Plate-1
55 009404780 Spiral strip-Id.-no.= 1m
56 009251590 Tube clamp-2 halves
56 009251050 Tube clamp-2 halves
57 009251340 Cover plate
58 009010421 Hex head bolt
58 009014230 Hex head bolt
58 009014250 Hex head bolt
58 009010081 Hex head bolt
58 009010542 Hex head bolt
59 009199620 Nozzle disc cap
60 009199610 Cutting ring
61 009212060 Nozzle disc cap
62 009210461 Cutting ring
63 009006380 Hex head bolt
64 009104140 Washer
65 009087580 Locknut
66 009106030 Washer
68 009006730 Hex head bolt
69 009099121 Detent edged washer
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
