  5. Frame central / Mounting parts 820001 -

Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Frame central / Mounting parts 820001 -

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
2
3
3
3
4
5
6
7
8
9
10
11
11
11
11
12
12
12
12
13
13
13
13
13
13
13
14
15
15
16
17
17
17
18
19
20
20
20
20
20
20
20
20
20
20
20
23
24
28
29
29
29
30
31
32
32
33
34
35
36
37
37
37
37
37
38
38
38
39
40
40
40
40
41
41
41
42
43
43
43
43
43
44
44
44
44
45
46
47
47
48
51
52
57
58
59
60
61
61
61
62
65
65
66
67
68
68
69
74
75
79
79
79
80
80
80
80
80
80
80
81
81
82
83
84

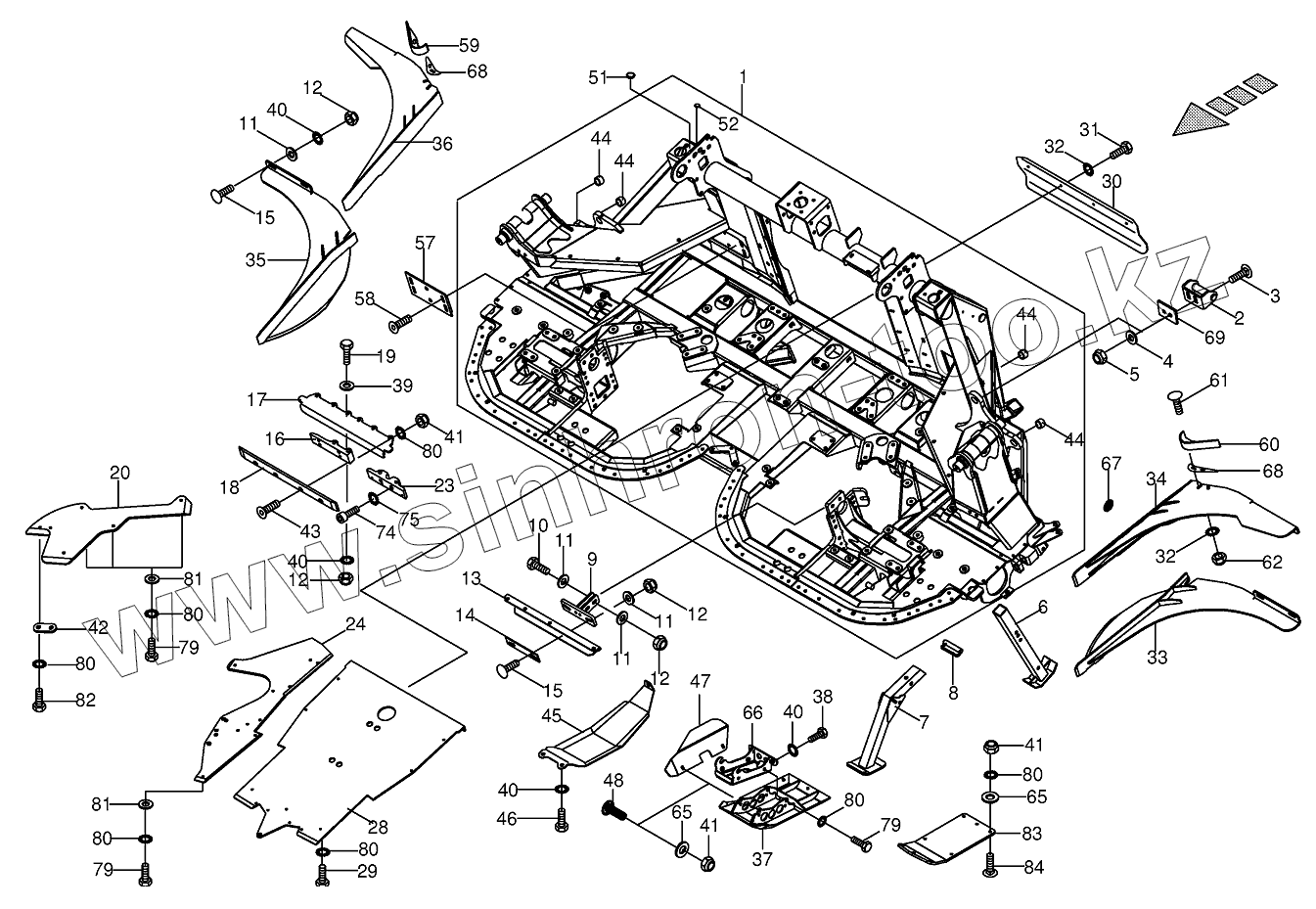

Позиция на иллюстрации Заводской номер детали Название детали
200952301 200952301 Rail Centre
1 200943341 Frame centre (1053) + bushings-middle
1 200943331 Frame centre 753/903 w. bushings-middle
2 003522902 Pendulum frame retainer-below
3 009047821 Coach bolt-optional
3 009047230 Coach bolt
4 009103620 Washer
5 009087190 Locknut
6 200908172 Supporting leg-back
7 200908272 Supporting leg-front
8 009170050 Spring stick bolt
9 200906720 Support
10 009014540 Hex head bolt
11 009106090 Washer
12 009087010 Locknut
13 200907181 Screw-on profile-left
13 200907171 Screw-on profile-right
13 200907091 Screw-on profile-right
13 200907081 Screw-on profile-left
14 200906741 Plating
15 009047791 Coach bolt
16 200915601 Position adapter retrainer
17 200915583 Position adapter angle-middle
17 200915593 Position adapter angle-middle
18 200952291 Guide Bracket
19 009003090 Hex head bolt
20 200915671 Sliding rail centre rh.
20 200961250 Sliding rail centre rh.
20 200915691 Sliding rail centre rh.
20 200915681 Sliding rail centre lh.
20 200961270 Sliding rail centre lh.
20 200915701 Sliding rail centre lh.
23 200930260 Position adapter retrainer
24 200938890 Guide disc
28 200908081 Guide plate-middle
29 009002722 Hex head bolt
29 009006320 Hex head bolt
30 003527481 Sealing plate
31 009006140 Hex head bolt
32 009099081 Detent edged washer
33 200906932 Scraper-below left
34 200906843 Scraper top lh
35 200906922 Scraper-below right
36 200906833 Scraper top, right
37 200934740 Ground skid
37 200940320 Ground skid
37 200934740 Ground skid
38 009006560 Hex head bolt
38 009006570 Hex head bolt
39 009105061 Washer
40 009099101 Detent edged washer
41 009087580 Locknut
42 200930440 Spacer plate
43 009040500 Countersunkscrew
43 900003520 Countersunkscrew
43 900020900 Countersunkscrew
44 009349460 Bearing bush
45 200928931 Gearbox cover-middle
46 009006530 Hex head bolt
47 200921481 Broadening-left
47 200921471 Broadening-right
48 009048501 Coach bolt
51 009250240 Sealing plug
52 009524330 Sealing plug
57 200929091 Intermediate plate
58 009040260 Countersunkscrew
59 200930691 Scraper-right
60 200930701 Scraper-left
61 009047322 Coach bolt
61 009048131 Coach bolt
62 009087060 Locknut
64 009006580 Hex head bolt
65 900001210 Washer
66 200934690 Ground skid
67 009246340 Side light-yellow-self- adhesive
68 200931061 Spacer plate
69 003527990 Spacer plate-optional
74 009031100 Allen screw
75 009099070 Detent edged washer
79 009006340 Hex head bolt
80 009099091 Detent edged washer
81 009104140 Washer
82 009006360 Hex head bolt
83 200940281 Wear skid-plastic
84 009040490 Countersunkscrew
