Каталог запасных частей к технике: KRONE ECollect753, 903, 1053. Cover 21.0

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
2
2
2
2
3
3
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
6
7
7
7
7
7
7
7
7
7
7
7
8
8
8
8
8
8
8
9
9
10
11
11
11
11
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
13
13
14
14
14
14
14
14
15
16
17
18
18
19
20
21
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
32
32
33
33
34
34
35
36
36
37
37
37
38
38
38

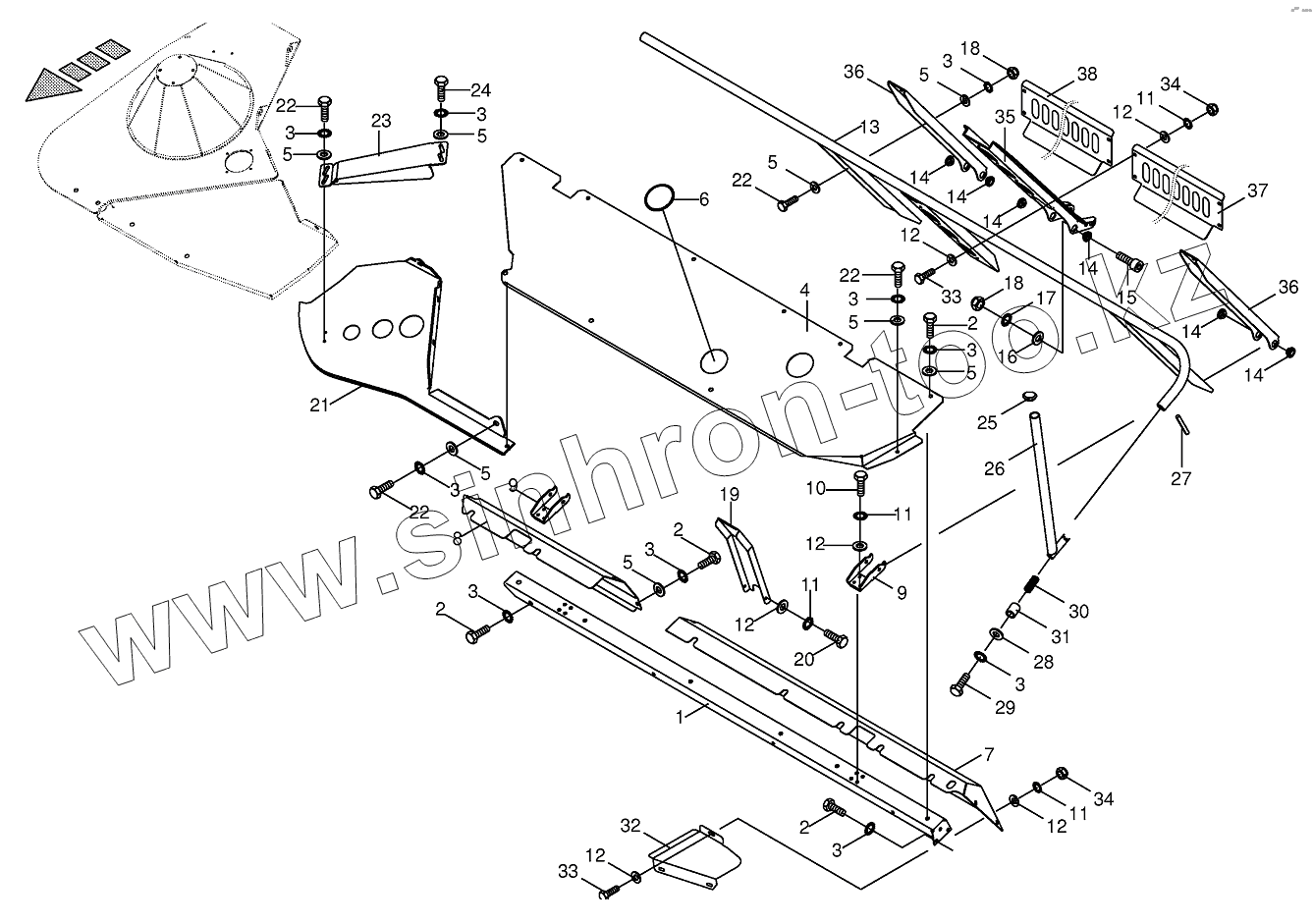

Позиция на иллюстрации Заводской номер детали Название детали
1 200909440 Protective depot
1 200909490 Protective depot
1 200916190 Protective depot
2 009006340 Hex head bolt
3 009099091 Detent edged washer
4 200916231 Protective cover-left
4 200909741 Protective cover-left
4 200909781 Protective cover-left
4 200916201 Protective cover-right
4 200909711 Protective cover-right
4 200909751 Protective cover-right
5 009103530 Washer
6 009249300 Sealing cap
7 200909650 Collector protection-outside left
7 200909630 Collector protection-outside right
7 200909720 Collector protection-outside right
7 200916170 Collector protection-outside right
7 200909760 Collector protection-outside left
7 200916220 Collector protection-outside left
8 200909770 Collector protection-inside left
8 200909700 Collector protection-inside left
8 200909730 Collector protection-inside right
8 200909690 Collector protection-inside right
9 200921210 Tube bow link
10 009006160 Hex head bolt
11 009099081 Detent edged washer
12 009106030 Washer
13 200909201 Tube bow-right
13 200909241 Tube bow-right
13 200916151 Tube bow-right
13 200909221 Tube bow-left
13 200909261 Tube bow-left
13 200916161 Tube bow-left
14 003521911 Bearing ring
15 009031061 Allen screw
16 009104140 Washer
17 009099070 Detent edged washer
18 009087580 Locknut
19 200908960 Cover
20 009006120 Hex head bolt
21 200908071 Scraper plate-left
21 200908061 Scraper plate-right
22 009006360 Hex head bolt
23 200908970 Strut
24 009006320 Hex head bolt
25 009250050 Sealing plug
26 200921300 Reflector retainer
27 009126752 Roll pin
28 900001210 Washer
29 009002871 Hex head bolt
30 004613810 Pressure spring
31 200921270 Bushing
32 200921330 Inflow sheet-left
32 200921260 Inflow sheet-right
33 009006140 Hex head bolt
34 009087060 Locknut
35 200909180 Support-middle
36 200909140 Support-outside
37 200921340 Cob catch-plate
37 200921310 Cob catch-plate-outside
38 200921340 Cob catch-plate
38 200921350 Cob catch-plate-inside
