Каталог запасных частей к технике: KRONE EColl.6000-7500-9000-6000CL/JD. Main transmission - Addition CL
1
2
3
4
5
5
5
5
6
6
7
7
8
9
9
10
11
12
13
14
15
15
16
16
17
17
18
19
20
20
20
21
22
23
24
25
26
27
28
28
28
28
29
30
31
32
33
33
34
35

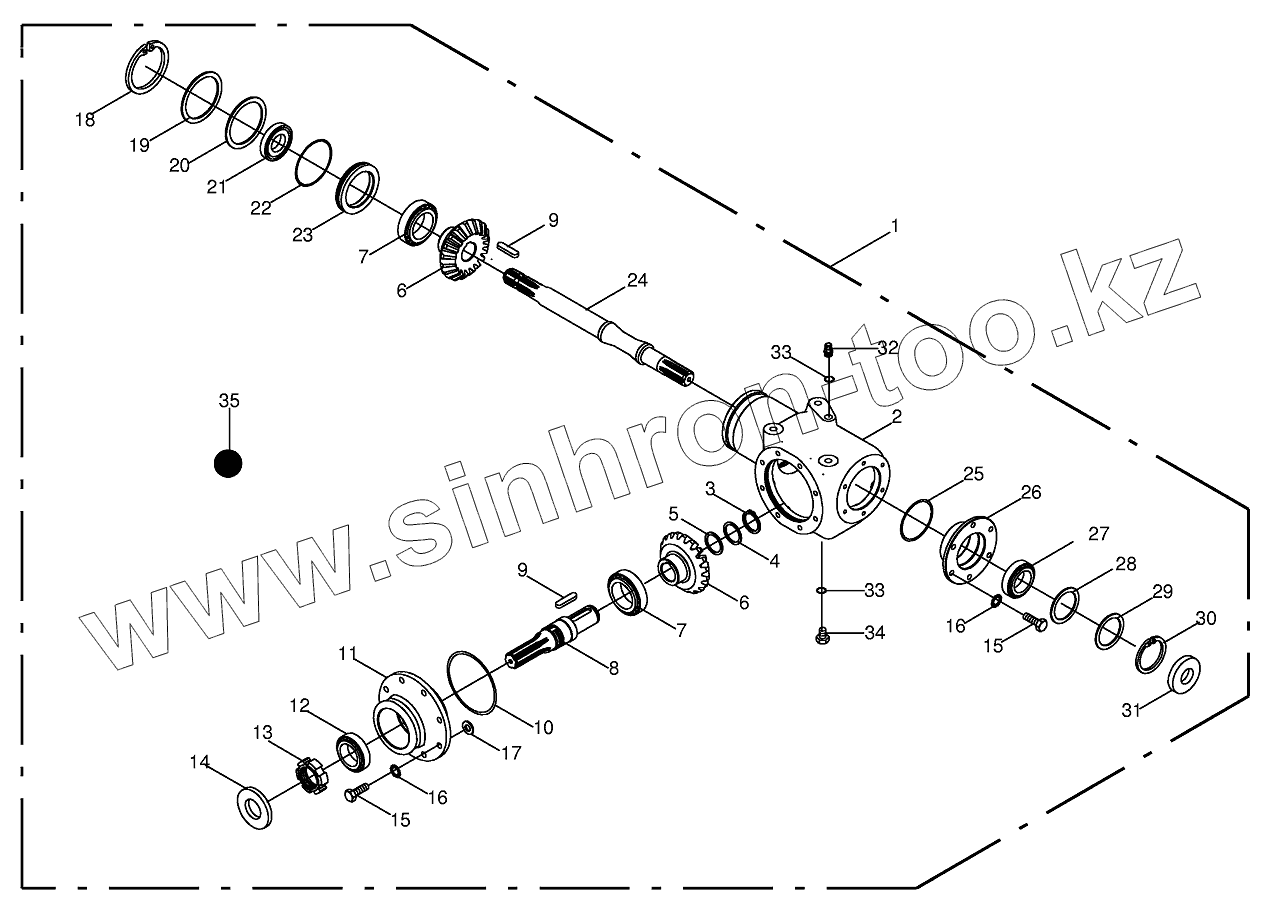

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 003520381 | Main gearbox | |
| 2 | 003520321 | Housing | |
| 3 | 009115450 | Circlip | |
| 4 | 009107300 | Supporting disc | |
| 5 | 009108880 | Shim ring | |
| 5 | 009108890 | Shim ring | |
| 5 | 009108900 | Shim ring | |
| 5 | 009108910 | Shim ring | |
| 6 | 003515431 | Bevel wheel | |
| 7 | 009321410 | Taper roller bearing | |
| 8 | 003520330 | Input shaft | |
| 9 | 009153560 | Fit-in key | |
| 10 | 009375460 | O-ring | |
| 11 | 003520340 | Flange | |
| 12 | 009321090 | Taper roller bearing | |
| 13 | 009095070 | Slotted nut-special | |
| 14 | 009360590 | Radial-shaft sealing ring | |
| 15 | 009031412 | Allen screw | |
| 16 | 009099110 | Detent edged washer | |
| 17 | 009108020 | Shim ring | |
| 17 | 009108070 | Shim ring | |
| 18 | 009116040 | Circlip | |
| 19 | 009107070 | Supporting disc | |
| 20 | 009108750 | Shim ring | |
| 20 | 009108350 | Shim ring | |
| 20 | 009109070 | Shim ring | |
| 21 | 009363621 | Radial-shaft sealing ring | |
| 22 | 009375810 | O-ring | |
| 23 | 003515401 | Adapter ring | |
| 24 | 003520390 | Outlet shaft | |
| 25 | 009375600 | O-ring | |
| 26 | 003520451 | Flange | |
| 27 | 009301670 | Grooved ball bearing | |
| 28 | 009109620 | Shim ring | |
| 28 | 009109650 | Shim ring | |
| 28 | 009109640 | Shim ring | |
| 28 | 009109630 | Shim ring | |
| 29 | 009107411 | Supporting disc | |
| 30 | 009116730 | Circlip | |
| 31 | 009363391 | Radial-shaft sealing ring | |
| 32 | 009198111 | Breather | |
| 33 | 009377270 | Gasket ring | |
| 34 | 009060101 | Screw plug | |
| 35 | 009261010 | Oil-Id.-no.=1ltr |
