1. Каталоги запчастей к технике
2. Сельхозтехника
3. KRONE
4. EColl.6000,7500,6000FP
5. Pto drive shaft-JD/NH

Каталог запасных частей к технике: KRONE EColl.6000,7500,6000FP. Pto drive shaft-JD/NH

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Adapter frame Boom/Roller Frame/Knife Skid/Wearing rail Frame centring device Collector wheel Collector Series tips/Centre tip Drive-Main gearbox Main gearbox Drive cpl. Auxiliary gearbox Angle gear Fettler gear left 822346-860000 Fettler gear left 822346- Fettler gear right 822346-860000 Fettler gear right 822346- Fettler gear left-inside 822346-860000 Fettler gear left-inside 822346- Fettler gear right-inside 822346-860000 Fettler gear right-inside 822346- Collector gear left Collector gear right Cover holder/Centre tower Rotating tower Guard cpl. Side part Lateral tip Row detection Adaptation to ground contoure AutoScan Sunflower plate Hydraulics-Plant divider Hydraulics-lift 822346-842000 Hydraulics-lift 842001- Tip protection/Indiator Lighting Wiring harness Adapter frame Wiring harness Adapter frame-AutoScan Wiring Harness-Schneidwerk Wiring harness-Mittelspitze Main Pto shaft P.T.O shafts-W2300-SC25 P.T.O shafts-W2300-SC25/1-2060 P.T.O shafts-W2300-SC15-660 P.T.O shafts Walterscheid-W2300-SC15-560 P.T.O shafts-ZW2300-SC25 P.T.O shafts-W2300-SC15-450 Double universal joint SX/DX Tag Additional weights-optional-BIG X V8, V12 Additional weights-optional-BIG X 650, 800, 1000 Additional weights-optional-BIG X 700, 850, 1100 Additional weights-optional-BIG X 500 Supporting leg Gearbox inside-Addition JD/NH Gearbox outside-Addition JD/NH Main transmission-Addition CL 493/494 Train of change-Al Pivoting frame-Addition CL 491/492/493/494 Adapter frame swinging-Addition Drive Adapter frame/Pivoting frame-Addition CL 491 Pivoting frame-Addition NH-FX Pivoting frame-Addition JD Support panel-Addition NH-FR Drive pivoting frame-addition JD/NH Centre tip-Addition JD/CL/NH Lateral tip-Addition CL Protective cover-Addition JD/CL/NH Hydraulics-pivoting frame 822346-842000 Hydraulics-lift 842001- Lighting-JD/CL/NH Pto drive shaft-JD/NH Pto drive shaft-CL Pto drive shaft-JD/NH Pto drive shaft-JD Pto drive shaft-NH Double universal joint-CL 493/494 Pto drive shaft-CL 491/492 Pto drive shaft-NH

1

11

12

21

22

23

24

25

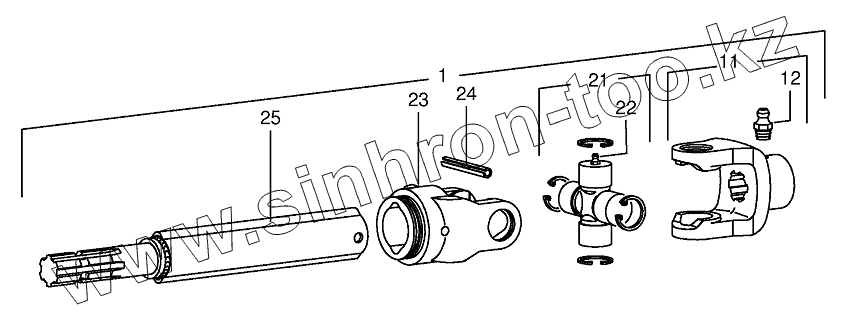

Позиция на иллюстрации	Заводской номер детали		Название детали
1	270013030		Pto drive shaft
11	009554860		Outer yoke
12	009191050		Grease niple
21	009493971		Cross assy
22	009190020		Grease niple
23	009494360		Grooved yoke
24	009127211		Roll pin
25	009554880		Intermediate shaft

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
