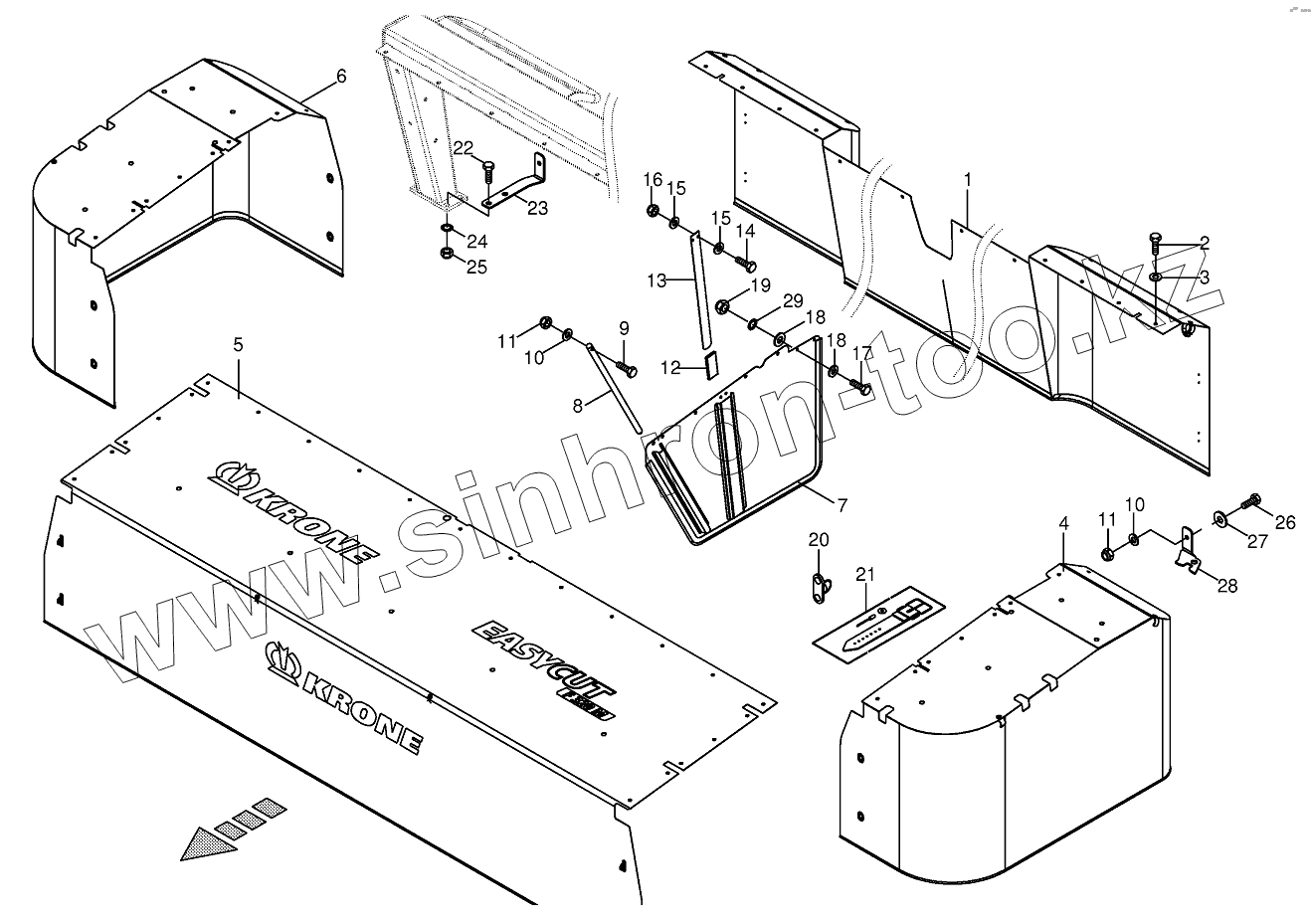

Каталог запасных частей к технике: KRONE EC F320M/F360M. Rubber skirts
1
2
3
4
5
6
7
8
9
10
10
11
11
12
13
14
15
15
16
17
18
18
19
20
21
22
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 200355471 | 200355471 | GUARD CLOTH REAR 1,2 | |
| 200355860 | 200355860 | Swath cloth -optional | |
| 200355460 | 200355460 | Guard cloth front | |
| 1 | 200327231 | Protecting skirt back | |
| 2 | 009006140 | Hex head bolt | |
| 3 | 009106040 | Washer | |
| 4 | 200327260 | Protecting skirt-left | |
| 5 | 200327240 | Protecting skirt-front | |
| 6 | 200327250 | Protecting skirt-right | |
| 7 | 200327270 | Swathing deflector | |
| 8 | 200327290 | Round steel | |
| 9 | 009014340 | Hex head bolt | |
| 10 | 009104140 | Washer | |
| 11 | 009087580 | Locknut | |
| 12 | 009385570 | Cover | |
| 13 | 200327280 | Steel strip | |
| 14 | 009006080 | Hex head bolt | |
| 15 | 009103511 | Washer | |
| 16 | 009087041 | Locknut | |
| 17 | 009006140 | Hex head bolt | |
| 18 | 009106030 | Washer | |
| 19 | 009087060 | Locknut | |
| 20 | 270050780 | Screw lock with fastening material | |
| 21 | 270050790 | Belt | |
| 22 | 009014510 | Hex head bolt | |
| 22 | 009006580 | Hex head bolt | |
| 23 | 200362750 | Guard cloth support right | |
| 24 | 009099101 | Detent edged washer | |
| 25 | 009087010 | Locknut | |
| 26 | 009006360 | Hex head bolt | |
| 27 | 009103530 | Washer | |
| 28 | 200362740 | Guard cloth support left | |
| 29 | 009099081 | Detent edged washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
