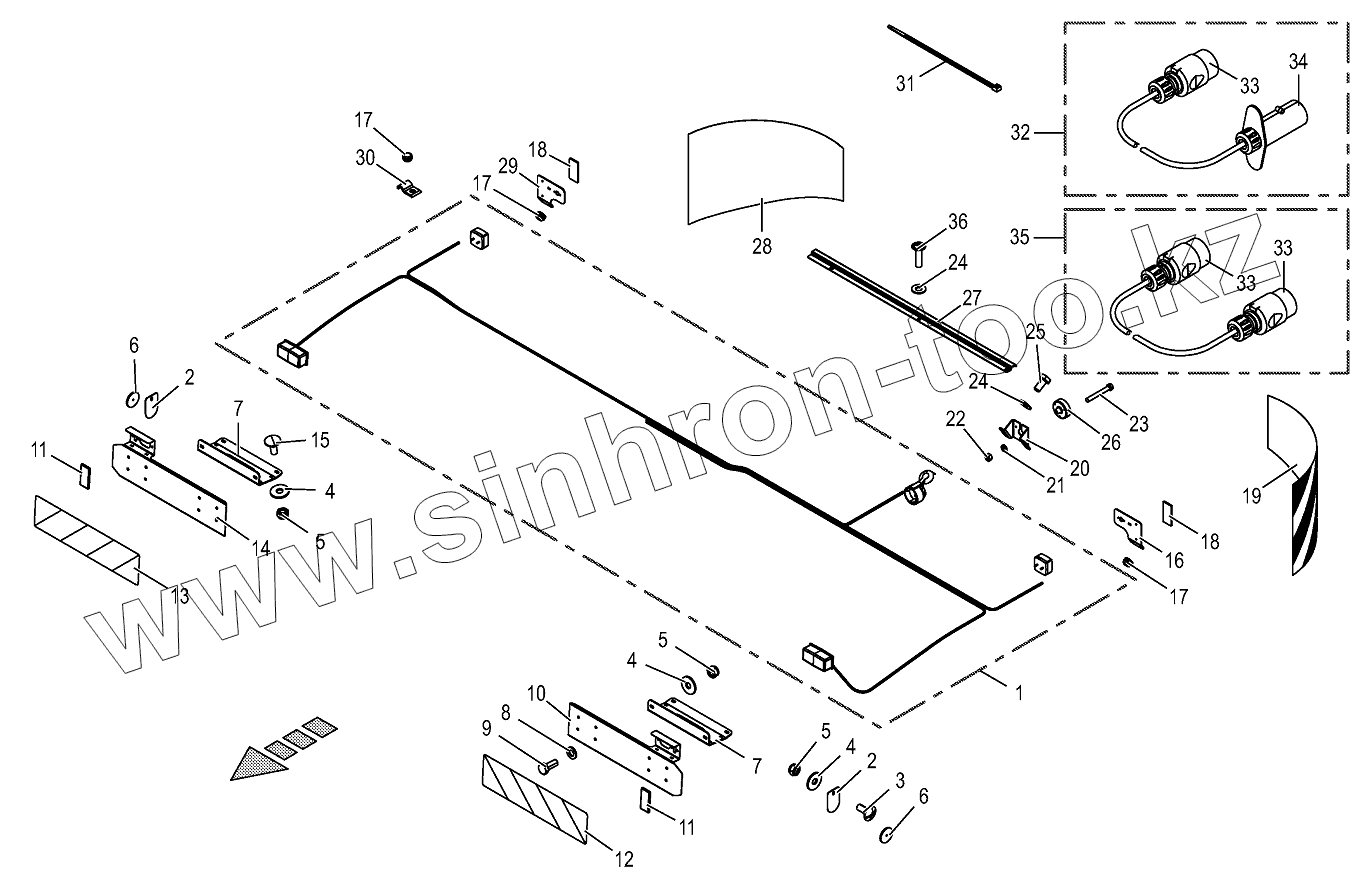

Каталог запасных частей к технике: KRONE EC F280/320/360. Lighting
1
2
2
3
4
4
4
5
5
5
6
6
7
7
8
9
10
11
11
12
13
14
15
16
17
17
17
18
18
18
19
20
21
22
23
24
24
25
26
27
27
27
28
28
29
30
31
32
33
33
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200829130 | Lighting cpl. | |
| 2 | 200375930 | Retaining sheet side lobe | |
| 3 | 009052311 | Coach bolt | |
| 4 | 900005850 | Washer | |
| 5 | 009087060 | Locknut | |
| 6 | 009246340 | Side light-yellow-self- adhesive | |
| 7 | 200372770 | Warning panel support front | |
| 8 | 009104130 | Washer | |
| 9 | 009006140 | Hex head bolt | |
| 10 | 200373160 | Warning panel support lh. | |
| 11 | 270114850 | Rear reflector white adhesive | |
| 12 | 270119490 | Label war. foil rh. fully refl. type II. | |
| 13 | 270119500 | Label war. foil lh. fully refl. type II. | |
| 14 | 200373150 | Warning panel support rh. | |
| 15 | 009047312 | Coach bolt | |
| 16 | 200375870 | Light holder rear, left | |
| 17 | 009147020 | Blind rivet | |
| 18 | 270114840 | Rear reflector red adhesive | |
| 19 | 270106060 | Label warn. foil sw. drum left | |
| 20 | 200375910 | Support socket | |
| 21 | 009100310 | Spring washer | |
| 22 | 009082071 | Hex nut | |
| 23 | 009034531 | Allen screw | |
| 24 | 009099081 | Detent edged washer | |
| 25 | 009006120 | Hex head bolt | |
| 26 | 009245170 | Socket base | |
| 27 | 200375860 | Cable cover | |
| 27 | 200382930 | Cable cover | |
| 27 | 200382920 | Cable cover | |
| 28 | 270106050 | Label warning foil swath drum right | |
| 29 | 200375920 | Light holder rear, right | |
| 30 | 009251121 | Tube support | |
| 31 | 009226711 | Cable band | |
| 32 | 009247820 | Extension cable-7-pole | |
| 33 | 009245760 | Plug-7-pole | |
| 34 | 009247830 | Plug-7-pole | |
| 35 | 009247282 | Extension cable-7-pole | |
| 36 | 900018490 | Fillister head screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
