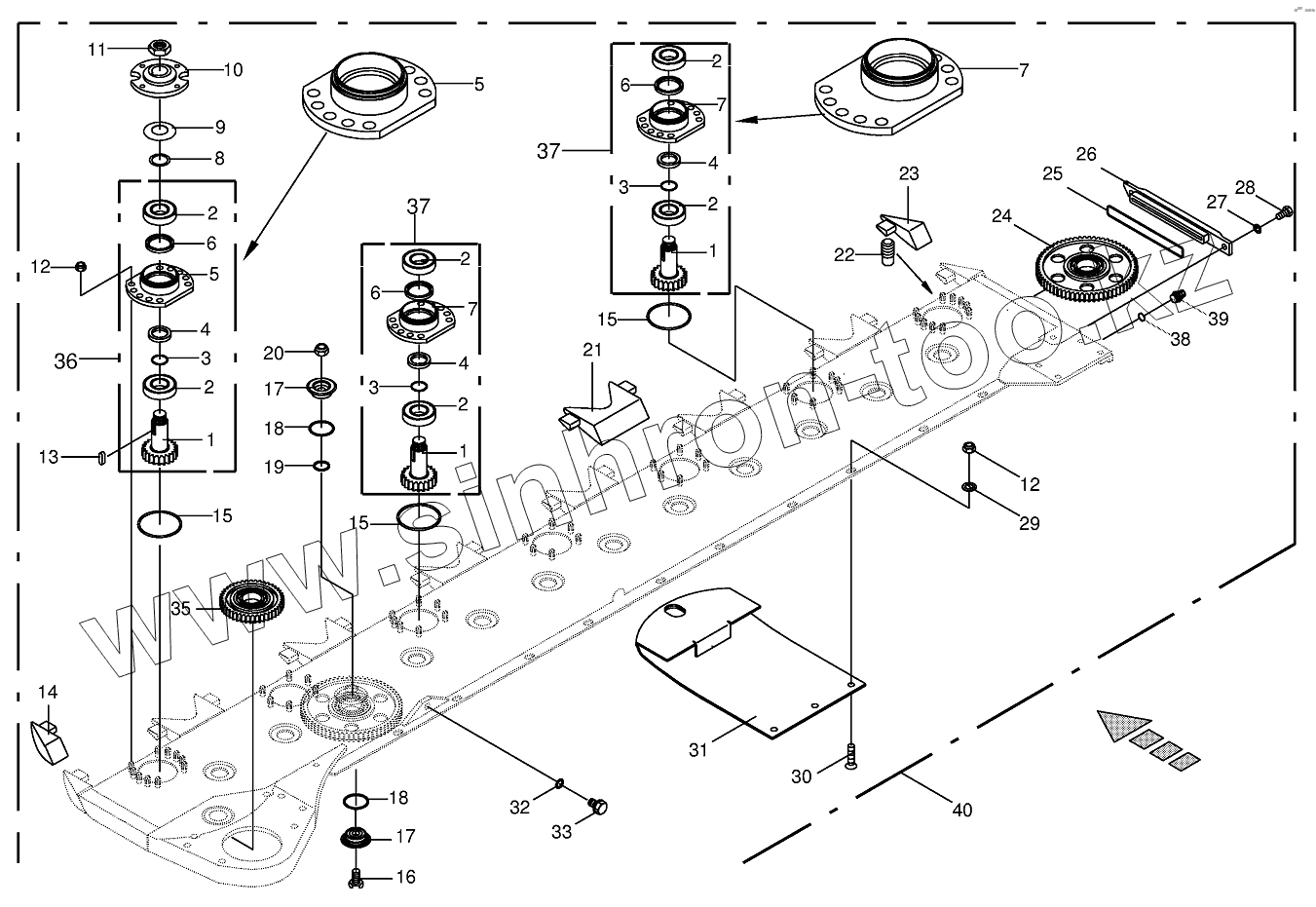

Каталог запасных частей к технике: KRONE EC 32CRI. Cutter bar with bearings
1
1
1
2
2
2
2
2
2
3
3
3
4
4
4
5
5
6
6
7
7
7
8
9
10
11
12
12
13
14
15
15
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
30
30
31
32
33
35
36
37
37
38
39
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 926 101 0 | 00 926 101 0 | Oil -Id.-no.=1ltr | |
| 1 | 00 253 027 4 | Pinion | |
| 2 | 00 930 341 0 | Grooved ball bearing | |
| 3 | 00 937 502 0 | O-ring | |
| 4 | 00 253 026 5 | Spacer ring | |
| 5 | 00 253 023 3 | Bearing housing -single | |
| 6 | 00 936 049 1 | Radial-shaft sealing ring | |
| 7 | 00 253 024 3 | Bearing housing -Changing | |
| 8 | 00 911 133 0 | Shim ring | |
| 9 | 00 253 028 1 | Spring washer | |
| 10 | 00 253 025 6 | Rotor hub | |
| 11 | 00 908 536 4 | Hex nut | |
| 12 | 00 908 701 0 | Locknut | |
| 13 | 00 915 108 0 | Fit-in key | |
| 14 | 00 253 015 3 | Sheet edge -left | |
| 15 | 00 937 576 0 | O-ring | |
| 16 | 00 900 335 1 | Hex head bolt | |
| 17 | 00 253 020 1 | Clamping piece | |
| 18 | 00 937 579 0 | O-ring | |
| 19 | 00 937 578 0 | O-ring | |
| 20 | 00 909 611 0 | Self-locking nut | |
| 21 | 00 253 547 0 | Sheet edge | |
| 22 | 00 906 404 0 | Weld. pin | |
| 23 | 00 253 016 3 | Sheet edge -right | |
| 24 | 00 253 030 0 | Spur gear | |
| 25 | 00 937 568 0 | O-ring | |
| 26 | 00 253 421 4 | Cover | |
| 27 | 00 909 909 1 | Detent edged washer | |
| 28 | 00 900 636 0 | Hex head bolt | |
| 29 | 00 909 910 1 | Detent edged washer | |
| 30 | 00 904 062 2 | Countersunkscrew | |
| 30 | 00 904 071 1 | Countersunkscrew | |
| 31 | 00 253 480 1 | Skid | |
| 32 | 00 937 721 0 | Gasket ring | |
| 33 | 00 906 007 1 | Screw plug | |
| 35 | 00 253 033 0 | Spur gear | |
| 36 | 00 253 021 3 | Bearing housing -10 hole, single | |
| 37 | 00 253 022 3 | Bearing housing -10 hole, changing | |
| 38 | 00 937 727 0 | Gasket ring | |
| 39 | 00 919 811 1 | Breather | |
| 40 | 00 253 343 1 | Cutter bar -cpl. |
