Каталог запасных частей к технике: KRONE EC 28/32P. Pendular bent/Lower link adapter
1
2
2
3
4
5
6
7
8
9
10
10
10
11
12
12
13
14
15
16
17
17
17
18
19
19
20
21
22
23
24
25
26
26
27
28
29
29
29
30
31
31
32
33
34
35
35
36
37

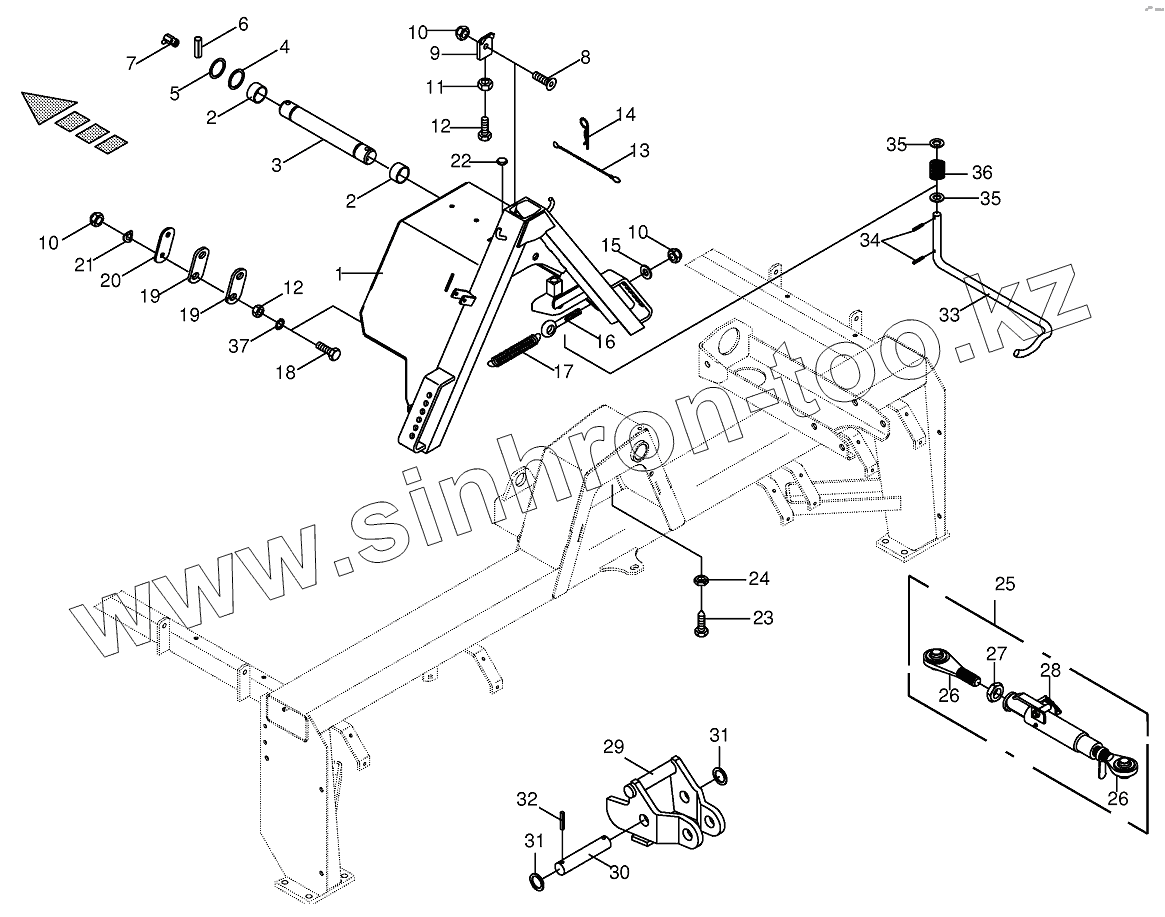

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002545530 | Pendular bent-incl. bushing | |
| 2 | 009349540 | Bearing bush | |
| 3 | 002545251 | Hinge pin | |
| 4 | 009108990 | Shim ring | |
| 5 | 009107321 | Supporting disc | |
| 6 | 009125003 | Roll pin | |
| 7 | 009191070 | Grease niple | |
| 8 | 009040060 | Countersunkscrew | |
| 9 | 001515621 | Limit stop | |
| 10 | 009087010 | Locknut | |
| 11 | 009082150 | Hex nut | |
| 12 | 009003061 | Hex head bolt | |
| 13 | 009226512 | Chain | |
| 14 | 009171050 | Spring clip | |
| 15 | 009105061 | Washer | |
| 16 | 009183001 | Eyebolt | |
| 17 | 200305560 | Tension spring | |
| 17 | 001516661 | Tension spring | |
| 18 | 009003090 | Hex head bolt | |
| 19 | 200309950 | Rasp plate | |
| 20 | 002601280 | Strap | |
| 21 | 009099221 | Belleville spring | |
| 22 | 009538230 | Sealing plug | |
| 23 | 009024010 | Hex head bolt | |
| 24 | 009085151 | Hex nut-low form | |
| 25 | 009232220 | Teelescoping top link-cat. II | |
| 26 | 009232240 | Hinged spindle | |
| 27 | 009085401 | Hex nut-low form | |
| 28 | 000030283 | Tension spring | |
| 29 | 001401823 | Lower link adapter-left | |
| 29 | 001401833 | Lower link adapter-right | |
| 30 | 001401911 | Lower link pin | |
| 31 | 009107021 | Supporting disc | |
| 32 | 009126752 | Roll pin | |
| 33 | 001519145 | Pto drive shaft support | |
| 34 | 009126432 | Roll pin | |
| 35 | 009105122 | Washer | |
| 36 | 004906070 | Pressure spring | |
| 37 | 009099091 | Detent edged washer |
