Каталог запасных частей к технике: KRONE EC 28/32P. Guard/Rubber skirts
1
1
1
2
3
3
3
3
3
3
3
4
4
4
5
5
5
5
5
6
7
8
9
10
10
10
10
10
11
12
13
13
13
13
14
14
14
15
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
31
31
32
33
34
35

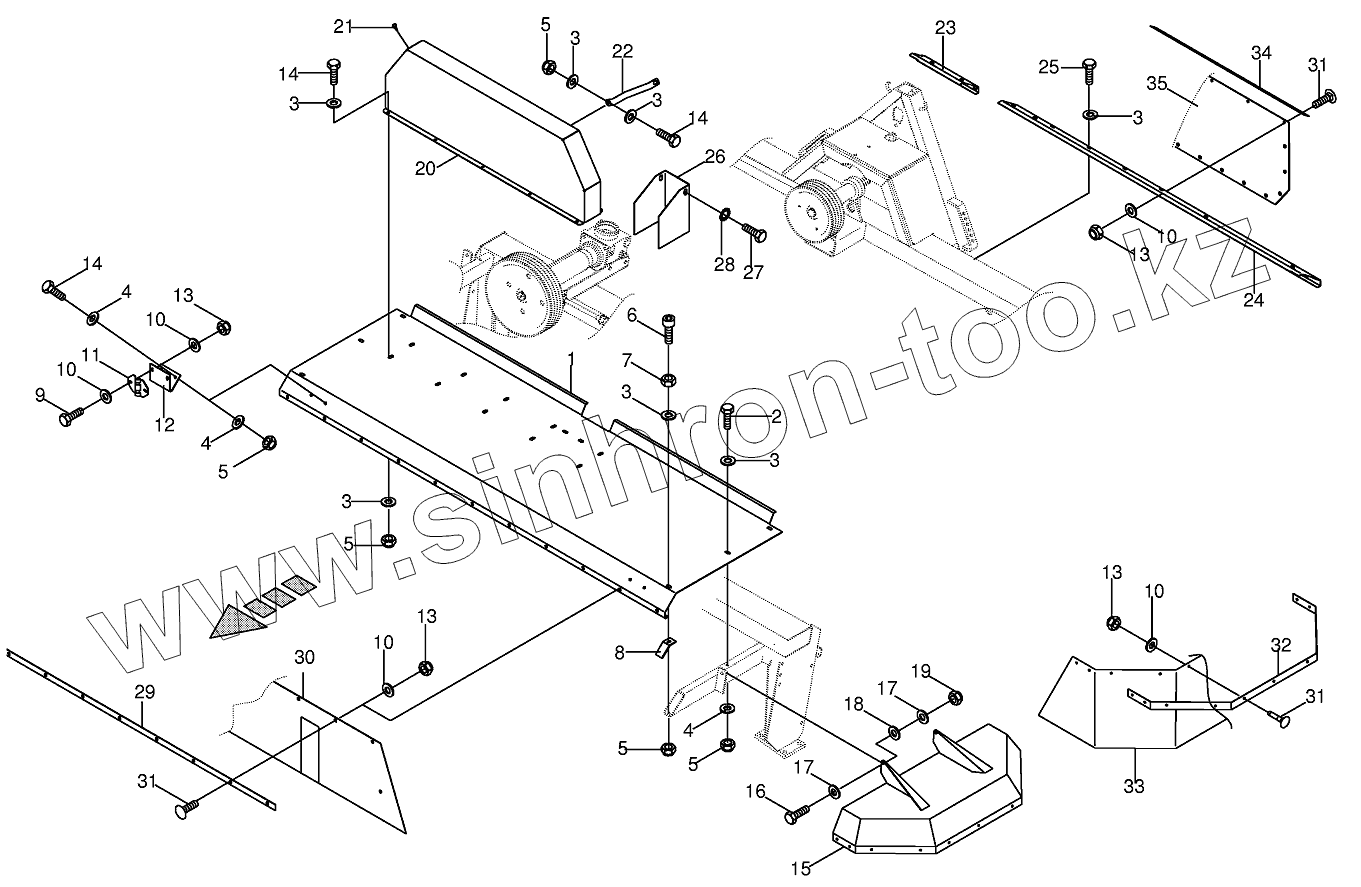

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 002545670 | 002545670 | Guard-back left | |
| 002541040 | 002541040 | Clamping strap-front | |
| 002540652 | 002540652 | Plastic cloth-front | |
| 002540670 | 002540670 | Plastic cloth-right | |
| 002540971 | 002540971 | V-belt guard | |
| 1 | 002540911 | Guard-front | |
| 1 | 002540901 | Guard-front | |
| 2 | 009010721 | Hex head bolt | |
| 3 | 009104140 | Washer | |
| 4 | 009103530 | Washer | |
| 5 | 009087580 | Locknut | |
| 6 | 009031161 | Allen screw | |
| 7 | 009082120 | Hex nut | |
| 8 | 002540290 | Angle | |
| 9 | 900001910 | Hex head bolt-special | |
| 10 | 900005850 | Washer | |
| 11 | 001466052 | Illumination support-front | |
| 12 | 002541680 | Support | |
| 13 | 900001920 | Locknut-special | |
| 14 | 009006360 | Hex head bolt | |
| 15 | 002540922 | Fold-away guard | |
| 16 | 009006560 | Hex head bolt | |
| 17 | 009105061 | Washer | |
| 18 | 009108030 | Shim ring | |
| 19 | 009087010 | Locknut | |
| 20 | 002540961 | V-belt guard | |
| 21 | 009242620 | Ruber grommet | |
| 22 | 002545260 | Support | |
| 23 | 002540891 | Guard-back right | |
| 24 | 002545660 | Guard-back left | |
| 25 | 009006320 | Hex head bolt | |
| 26 | 002540380 | Gearbox guard | |
| 27 | 009006720 | Hex head bolt | |
| 28 | 009099121 | Detent edged washer | |
| 29 | 002541031 | Clamping strap | |
| 30 | 002540642 | Plastic cloth-front | |
| 31 | 900005840 | Coach bolt | |
| 32 | 002541021 | Clamping strap | |
| 33 | 002540660 | Plastic cloth-left | |
| 34 | 002541051 | Clamping strap-back | |
| 35 | 002540492 | Plastic cloth-back |
