Каталог запасных частей к технике: KRONE EC28CV/C32CV/32CV-F. Blade quick coupler
1
2
3
4
4
4
4
4
4
5
5
6
6
6
6
7
7
7
8
8
8
9
9
9
10
10
10
11
11
11
12
12
13
13
14
14
15
15
16
16
16
17
17
17
18
19
20
21
22
23
24
25

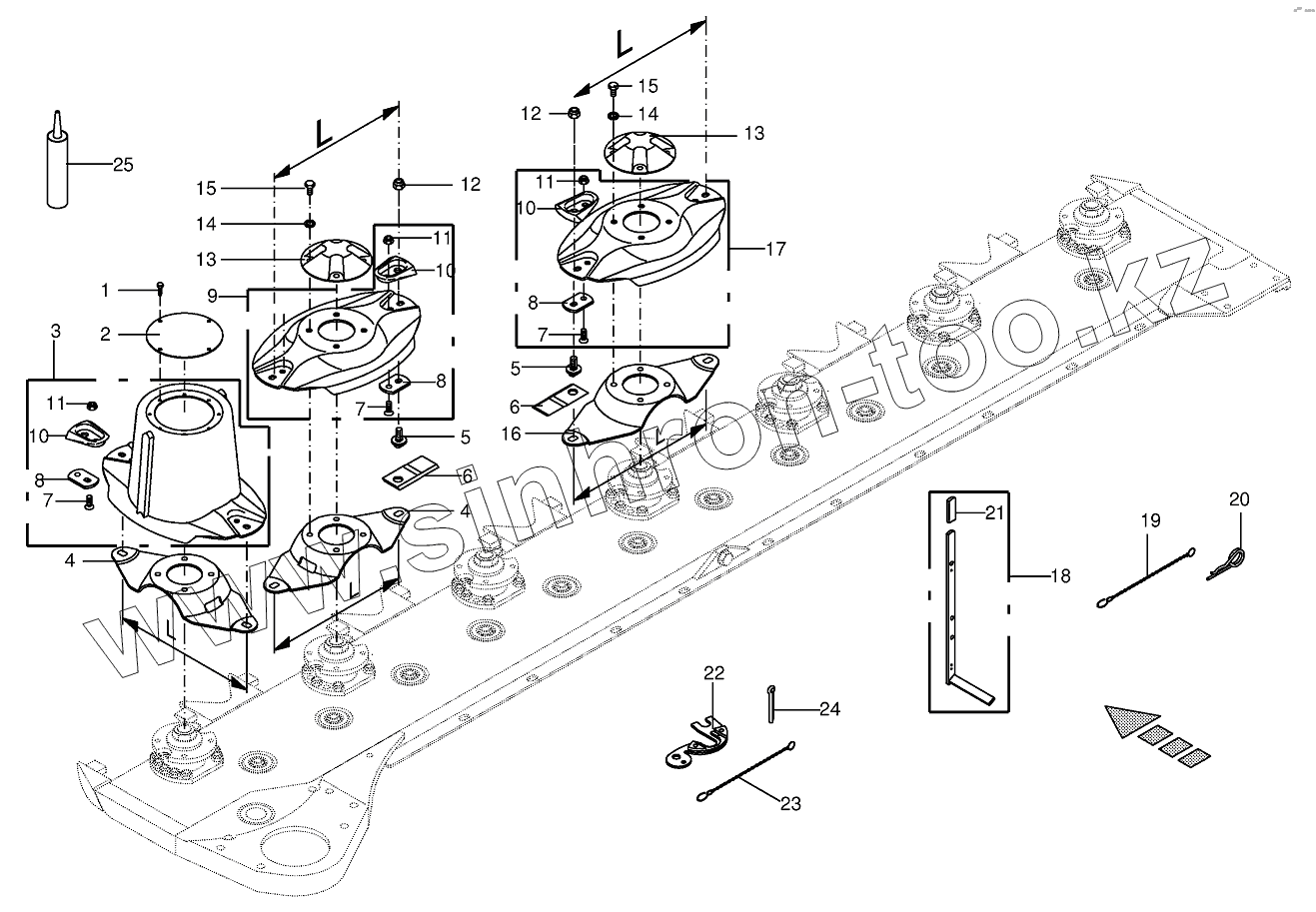

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 009069490 | Self-tapping screw | |
| 2 | 002530521 | Cover | |
| 3 | 200310630 | Mower drum | |
| 4 | 002530455 | Knife support-dmAdm | |
| 4 | 002530455 | Knife support-dmAdm | |
| 4 | 002530455 | Knife support-dmAdm | |
| 5 | 002537450 | Mower pin | |
| 6 | 001398883 | Knife-left | |
| 6 | 001398893 | Knife-right | |
| 7 | 009040453 | Countersunkscrew | |
| 8 | 002530423 | Knife support | |
| 9 | 200310620 | Mower disc | |
| 9 | 200310620 | Mower disc | |
| 10 | 002537431 | Guard | |
| 11 | 009087580 | Locknut | |
| 12 | 009080560 | Self-locking nut | |
| 13 | 002530470 | Cover | |
| 14 | 009099091 | Detent edged washer | |
| 15 | 009006370 | Hex head bolt | |
| 16 | 002530465 | Knife support-dmBdm | |
| 16 | 002530465 | Knife support-dmBdm | |
| 17 | 200310610 | Mower disc-B | |
| 17 | 200310610 | Mower disc-B | |
| 18 | 002535180 | Special key for blades | |
| 19 | 009226512 | Chain | |
| 20 | 009171041 | Spring clip | |
| 21 | 009250160 | Handle | |
| 22 | 200310070 | Gauge | |
| 23 | 900003380 | Chain | |
| 24 | 009120661 | Cotter pin | |
| 25 | 009402360 | Sealant-silicone-free |
