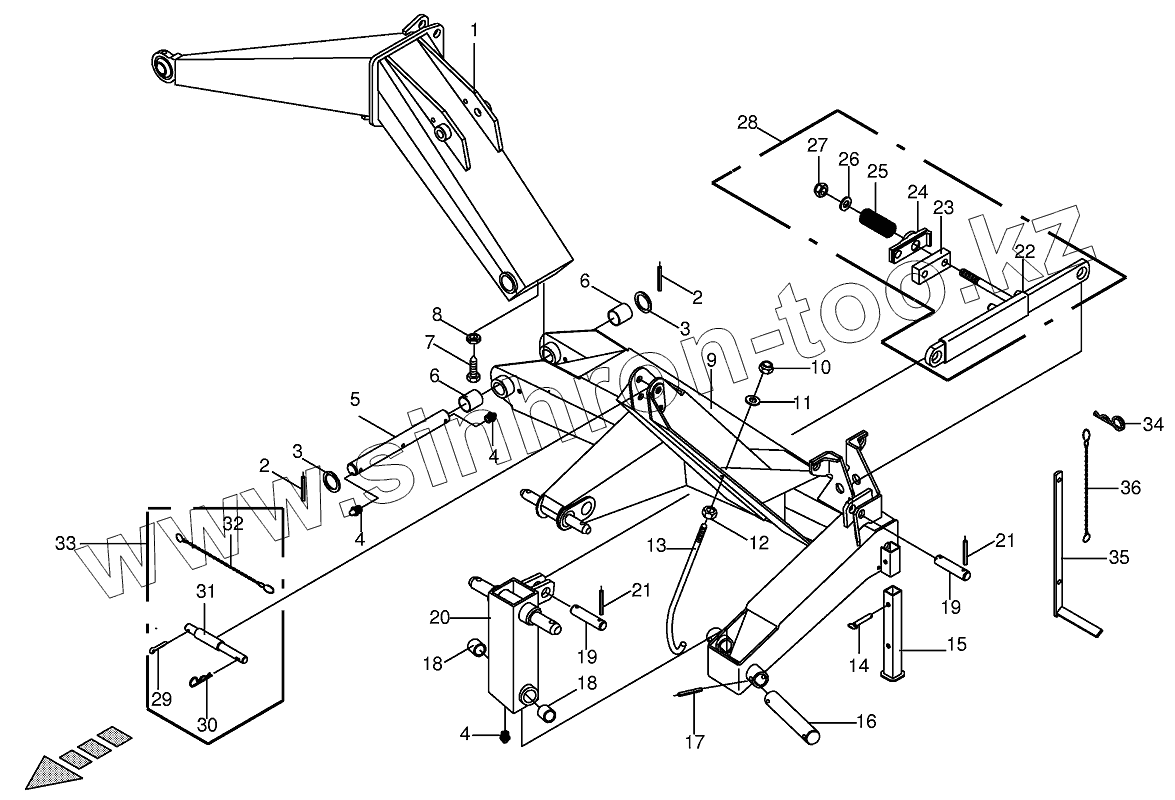

Каталог запасных частей к технике: KRONE EC280CV/320CV. Headstock/Control lever
1
1
2
2
3
3
4
4
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 002534301 | Extension arm | |
| 1 | 002534291 | Extension arm | |
| 2 | 009125001 | Roll pin | |
| 3 | 009107321 | Supporting disc | |
| 4 | 009191050 | Grease niple | |
| 5 | 002532080 | Hinge pin | |
| 6 | 009349540 | Bearing bush | |
| 7 | 009024010 | Hex head bolt | |
| 8 | 009085150 | Hex nut-low form | |
| 9 | 002539001 | Headstock | |
| 10 | 009087010 | Locknut | |
| 11 | 009099221 | Belleville spring | |
| 12 | 009082150 | Hex nut | |
| 13 | 002538511 | Pto drive shaft support | |
| 14 | 002539400 | Pin | |
| 15 | 002539350 | Jack stand | |
| 16 | 002538502 | Pin | |
| 17 | 009127162 | Roll pin | |
| 18 | 009349200 | Bearing bush | |
| 19 | 001394730 | Pin | |
| 20 | 002538190 | Guide arm-incl. bushing, grease nipple | |
| 21 | 009126161 | Roll pin | |
| 22 | 002538411 | Safety break-away | |
| 23 | 002538471 | Strap | |
| 24 | 001390540 | Ratchet | |
| 25 | 001391780 | Pressure spring | |
| 26 | 009106490 | Washer | |
| 27 | 009087210 | Locknut | |
| 28 | 002538400 | Safety break-away-cpl. | |
| 29 | 009122871 | Cotter pin | |
| 30 | 009171041 | Spring clip | |
| 31 | 000631250 | Top link pin cat. I + II | |
| 32 | 009226500 | Chain | |
| 33 | 001441412 | Top link pin-cat. I + II | |
| 34 | 009171030 | Spring clip | |
| 35 | 002563900 | Special key for blades | |
| 36 | 009226512 | Chain |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
