Каталог запасных частей к технике: KRONE Easycollect. Cover holder / Centre tower
1
1
2
3
3
4
5
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
13
14
15
15
16
17
18
18
19
19
20
20
20
21
21
22
23
23
24
25
25
26
27
28
29
30
31
31
32
33
33
34
35
36
37
37
38
39
40
41

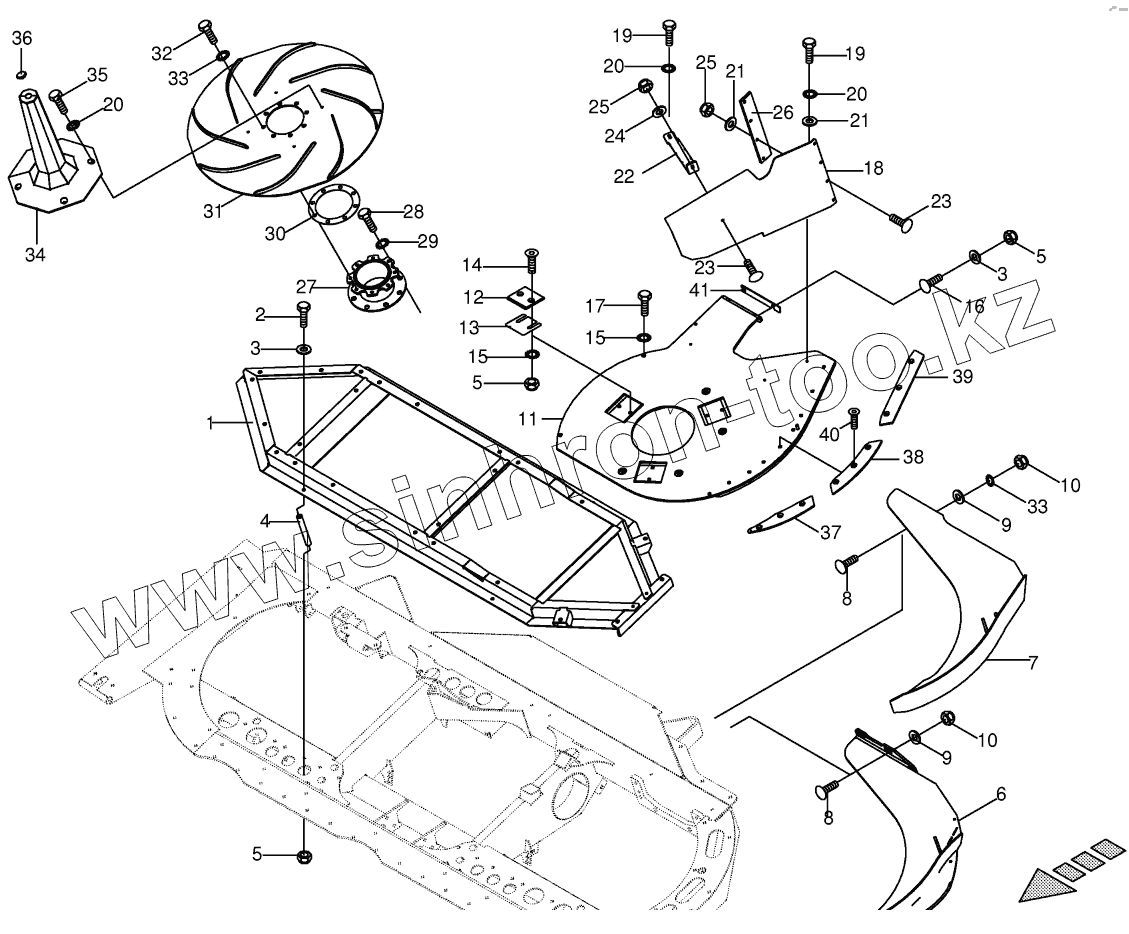

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00 352 592 4 | Cover holder | |
| 1 | 00 352 591 4 | Cover holder | |
| 2 | 00 900 347 0 | Hex head bolt | |
| 3 | 00 910 353 0 | Washer | |
| 4 | 00 352 590 0 | Bushing | |
| 5 | 00 908 758 0 | Locknut | |
| 6 | 00 352 577 5 | Scraper bottom rh. | |
| 6 | 00 352 578 5 | Scraper bottom lh | |
| 7 | 00 352 580 5 | Stripper -top right | |
| 7 | 00 352 579 5 | Scraper -top left | |
| 8 | 00 904 779 1 | Coach bolt | |
| 9 | 00 910 378 0 | Washer | |
| 10 | 00 908 701 0 | Locknut | |
| 11 | 00 352 946 2 | INNER COVER RH -inside right | |
| 11 | 00 352 945 3 | Cover plate -inside left | |
| 12 | 00 281 540 1 | Friction disc | |
| 13 | 00 283 676 0 | Filler plate | |
| 14 | 00 904 045 3 | Countersunkscrew | |
| 15 | 00 909 909 1 | Detent edged washer | |
| 16 | 00 904 755 2 | Coach bolt | |
| 17 | 00 900 634 0 | Hex head bolt | |
| 18 | 00 352 938 1 | Guide plate -right | |
| 18 | 00 352 937 1 | Guide plate -left | |
| 19 | 00 900 612 0 | Hex head bolt | |
| 20 | 00 909 908 1 | Detent edged washer | |
| 21 | 00 910 603 0 | Washer | |
| 22 | 00 352 939 0 | Support | |
| 23 | 00 904 732 2 | Coach bolt | |
| 24 | 00 910 413 0 | Washer | |
| 25 | 00 908 706 0 | Locknut | |
| 26 | 00 352 953 0 | Gum-jointing | |
| 27 | 00 352 940 1 | Hub | |
| 28 | 00 901 132 1 | Hex head bolt | |
| 29 | 00 909 912 1 | Detent edged washer | |
| 30 | 00 352 916 0 | Spacer ring | |
| 31 | 00 352 931 1 | Turntable -left | |
| 31 | 00 352 932 1 | Turntable -right | |
| 32 | 00 900 655 0 | Hex head bolt | |
| 33 | 00 909 910 1 | Detent edged washer | |
| 34 | 00 352 927 1 | Centre tower | |
| 35 | 00 900 253 1 | Hex head bolt | |
| 36 | 00 925 029 0 | Sealing plug | |
| 37 | 20 093 627 0 | Wearing plate -right front | |
| 37 | 20 093 626 0 | Wearing plate -left front | |
| 38 | 20 093 625 0 | Wearing plate -middle | |
| 39 | 20 093 624 0 | Wearing plate -back | |
| 40 | 90 001 753 0 | Countersunkscrew | |
| 41 | 20 094 306 0 | Spacer plate -left/right |
