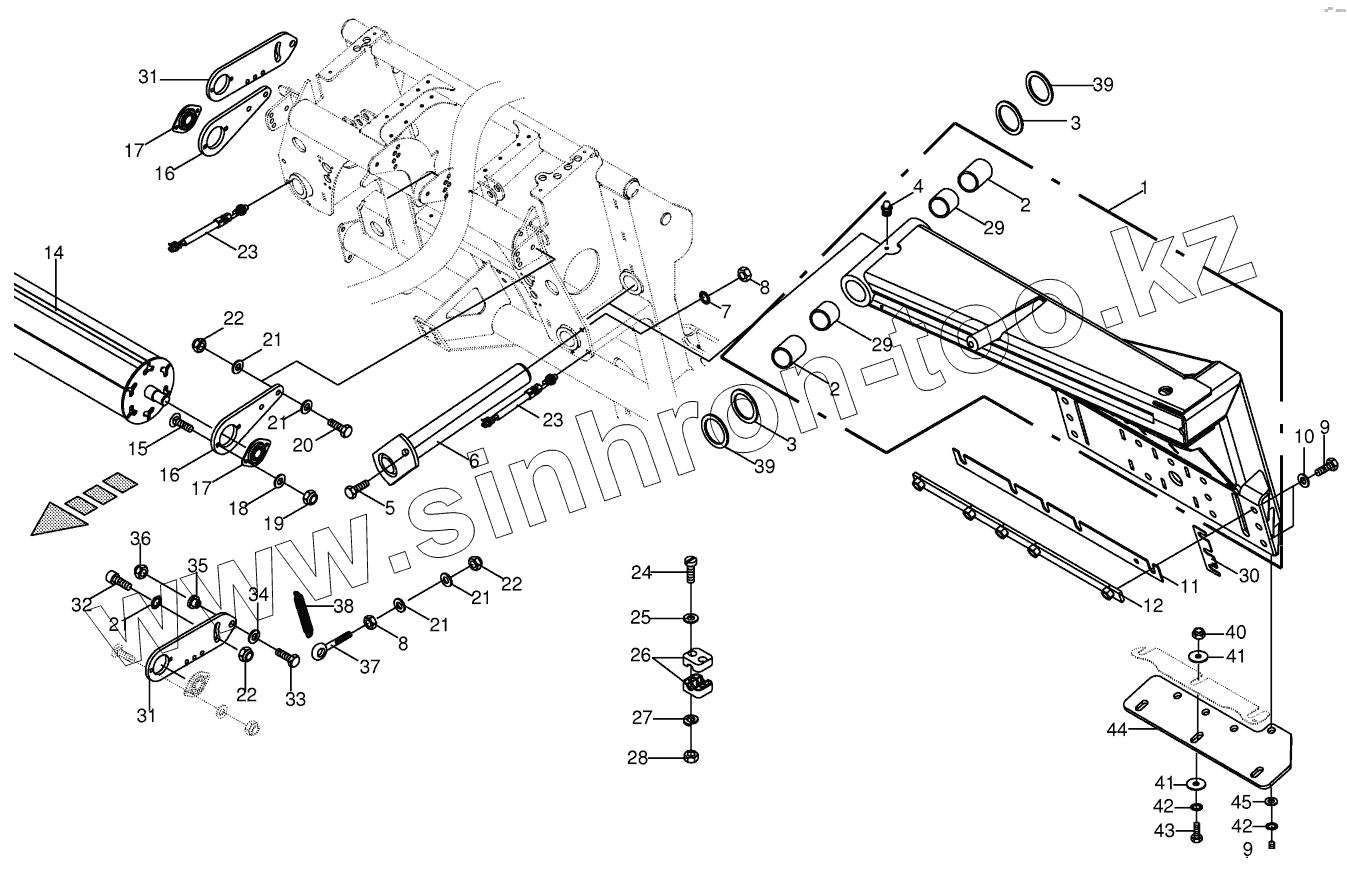

Каталог запасных частей к технике: KRONE Easycollect. Boom / Roller
1
1
2
2
3
3
4
5
6
7
8
8
9
9
10
11
11
12
14
15
16
16
17
17
18
19
20
21
21
21
21
21
22
22
22
23
23
24
25
26
27
28
29
29
30
30
31
31
32
33
34
35
36
37
38
39
39
40
41
41
42
42
43
44
45
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00 352 264 6 | Cantilever -right | |
| 1 | 00 352 263 6 | Cantilever -left | |
| 2 | 00 934 939 0 | Bearing bush | |
| 3 | 00 441 098 1 | Washer | |
| 4 | 00 919 105 0 | Grease niple | |
| 5 | 00 900 657 0 | Hex head bolt | |
| 6 | 00 352 250 1 | Pin | |
| 7 | 00 909 910 1 | Detent edged washer | |
| 8 | 00 908 215 0 | Hex nut | |
| 9 | 00 900 356 0 | Hex head bolt | |
| 10 | 00 910 303 1 | Washer | |
| 11 | 00 352 446 1 | Intermediate housing | |
| 11 | 20 097 558 0 | Intermediate plate | |
| 12 | 00 352 287 1 | Hole reinforcement | |
| 14 | 00 352 925 2 | Roller | |
| 15 | 00 904 732 2 | Coach bolt | |
| 16 | 00 352 924 0 | Roller support | |
| 17 | 00 934 012 0 | Flange bearing | |
| 18 | 00 910 413 0 | Washer | |
| 19 | 00 908 706 0 | Locknut | |
| 20 | 00 900 656 0 | Hex head bolt | |
| 21 | 00 909 911 0 | Detent edged washer | |
| 22 | 00 908 701 0 | Locknut | |
| 23 | 00 302 409 2 | Namur sensor | |
| 24 | 00 903 453 1 | Allen screw | |
| 25 | 00 910 500 1 | Washer | |
| 26 | 00 925 107 1 | Tube clamp -2 halves | |
| 27 | 00 910 031 0 | Spring washer | |
| 28 | 00 908 207 1 | Hex nut | |
| 29 | 00 934 938 0 | Bearing bush | |
| 30 | 00 352 845 2 | Intermediate housing | |
| 30 | 20 097 557 0 | Intermediate plate arm | |
| 31 | 20 091 724 1 | Roller support | |
| 32 | 00 903 011 1 | Allen screw | |
| 33 | 00 900 639 0 | Hex head bolt | |
| 34 | 00 910 414 0 | Washer | |
| 35 | 00 334 364 0 | Spacer | |
| 36 | 00 908 758 0 | Locknut | |
| 37 | 00 918 305 0 | Eyebolt | |
| 38 | 00 281 806 1 | Tension spring | |
| 39 | 00 910 904 0 | Shim ring | |
| 40 | 00 908 719 0 | Locknut | |
| 41 | 00 910 327 0 | Washer | |
| 42 | 00 909 912 1 | Detent edged washer | |
| 43 | 00 901 132 1 | Hex head bolt | |
| 44 | 20 093 458 0 | Reinforcing sheet -optional | |
| 45 | 00 910 303 1 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
