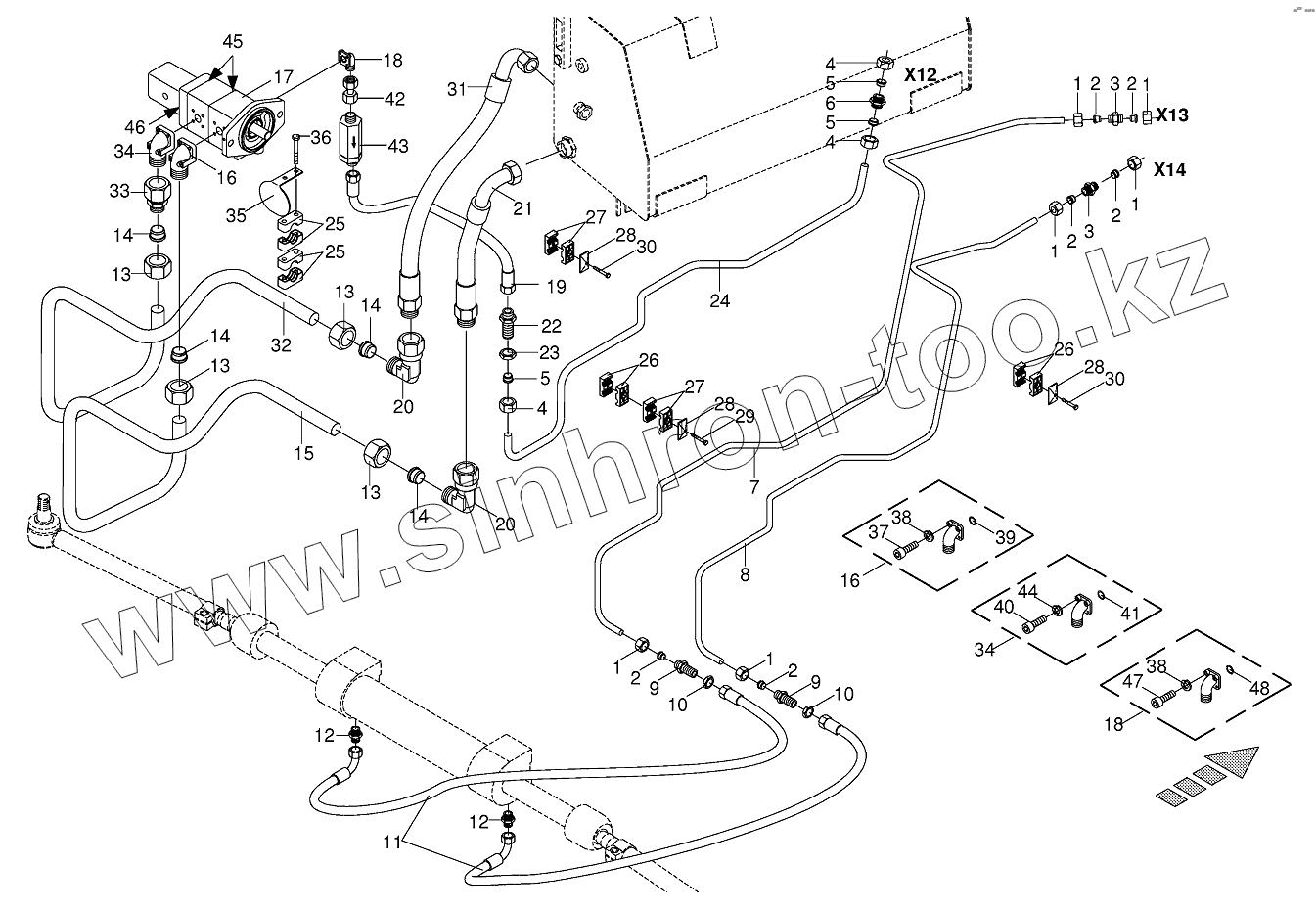

Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. Hydraulics - Drivers Part 2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
1
2
2
2
2
2
2
3
3
4
4
4
5
5
5
6
7
8
9
9
10
10
11
12
12
13
13
13
13
14
14
14
14
15
16
16
17
18
18
19
20
20
21
22
23
24
25
25
26
26
27
27
28
28
28
29
30
30
31
32
33
34
34
35
36
37
37
38
38
39
40
40
41
42
43
44
45
46
47
47
48
Позиция на иллюстрации Заводской номер детали Название детали
003600320 003600320 Hydraulic line
003600340 003600340 Hydraulic line
009192260 009192260 Pump-3 times
270083020 270083020 Sealing set
009403670 009403670 Рrеssurе соntrоl vаlvе
1 009212060 Nozzle disc cap
2 009210461 Cutting ring
3 009210541 Connector
4 009210430 Nozzle disc cap
5 009210471 Cutting ring
6 009210531 Connector
7 003600650 Нуdrаuliс linе
8 003600660 Нуdrаuliс linе
9 009210871 Straight 2-way connector
10 009085242 Hex nut-low form
11 009200611 High pressure hose line
12 009209011 Male connector
13 009208050 Nozzle disc cap
14 009197490 Cutting ring
15 002287480 Hydraulic line-incl. nozzle disc cap, cutting ring
16 009197570 Flange connection
17 002220450 Рump-3 timеs
18 009197560 Flange connection
19 009200940 High pressure hose line
20 009208220 Angle lug
21 009197931 High pressure hose line
22 009212500 Straight 2-way connector
23 009210741 Hex nut-low form
24 003600670 Hydraulic line-incl. nozzle disc cap, cutting ring
25 009251041 Tube clamp-2 halves
26 009251050 Tube clamp-2 halves
27 009251460 Tube clamp-2 halves
28 009251340 Cover plate
29 009010481 Hex head bolt
30 009010421 Hex head bolt
31 009200792 High pressure hose line
32 002191200 Hydraulic line
33 009196600 Reducer fitting
34 009197580 Flange connection
35 003601230 Warmth-leading plate
36 009010721 Hex head bolt
37 009030451 Allen screw
37 009030512 Allen screw
38 009099061 Detent edged washer
39 009376280 O-ring
40 009030771 Allen screw
40 009016700 Allen screw
41 270009880 O-ring
42 002307440 Double nipple
43 009191690 High pressure filter
44 009099030 Detent edged washer
45 270083020 Sealing set
46 270037700 Sealing set
47 009030451 Allen screw
47 009030491 Allen screw
48 009376290 O-ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
