Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-X-V8/BIG-X-V12

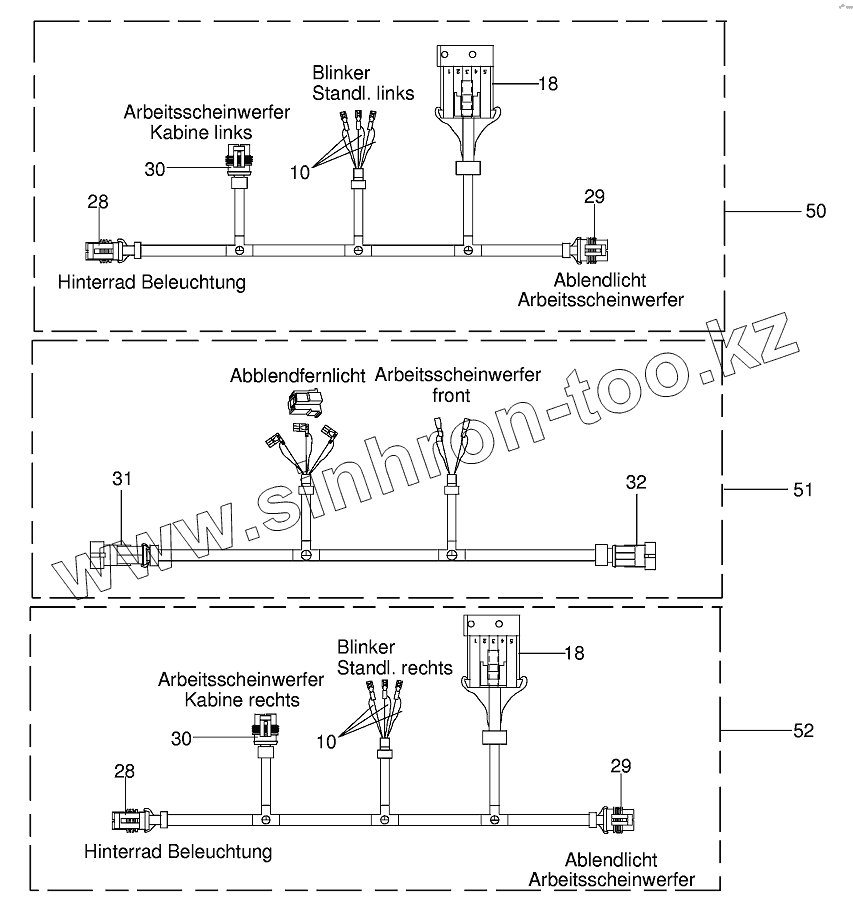

Wiring Harness - Front lighting
Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. Wiring Harness - Front lighting
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Feeder
Feeder Housing with support foot
Grain collecting plate / slotted cover
Lower feed rollers
Lower feed roller bearing
Top feed rollers
Top feed roller bearing
Cover- Feeder Housing
Auxiliary gearbox
Spreader drive
Roller gear
Roller gearbox part 2
Top roller gearbox
Oscillating levers/Tension spring
P.T.O shafts
Pivoting frame / linkage
Lateral flotation system
Lateral flotation system/Locking mech.
Angle sensor- Pivoting frame
Chopping aggregate -cpl.
Chopping drum support with locking devic
Chopping aggregate
Chopping drum bearing
Tensioning device- main drive
Belt guide - main drive
Angle sensor / securing key
Shear bar adjustment
Lift.mechan. feeder hous./front attachm.
Mounting part sharpening device
Chain carriage- sharpening device
Sharpening
Sharpening device drive
Cover plate- sharpening device
Transfer channel
Grass channel
Duct
Cracker housing
Roller basin
Roller front
Roller back
Adjustment mandril w. angle sensor
E-motor and
Pulley for changing directions
Cracker drive / tensioning device
Rope winch
Installation car
Discharge accelerator
Discharge accelerator /Roller
Discharge accelerator housinge
Discharge chute rotation drive
Mounting parts discharge chute rotation
Channel union
Discharge chute drive flange
Live ring with obstacle protection
Upper discharge chute with wear plates
Hydraulic components-discharge
Discharge flap-end piece
Discharge chute extension 10-row
Discharge chute extension 12-row
Hydraulic components discharge chute
Work light to upper discharge chute
Cab
Cab
Control panel (roof)
Cab - glazing
Steering columm
Wear parts - driver's seat
Cab - Sound deadening
Cab - Cab lining, aerial
Cab suspension / Deacon light / Horn
Control box
Control switsches
Control box - wiring loom
Multifunction lever / Circuit board
Camera surveillance / Rear view mirror
Panelling frame
Frame / Plastic panelling
Panelling top / roof flap
Cab access
Platform right
Front panel / Headlight
Lateral guard
Joint / Wheel chock
Dividing wall
Warning panel for excess width
Plastic panelling engine compartment
Rear side panel
Mudguard
Ascending ladder
Battery box
Fire extinguisher
Trailer hitch / installation parts frame
Tyres
Parking brake
Steering axle
Steering axle rocker arm
Steering sensor
Hydraulic tank
Variable disqlacement pump
Suction line - auxiliary line
Cam lobe motor
Traction drive wheel engine -front
Traction drive wheel engine -rear
Cooling line - ground drive part 1
Cooling line - ground drive part 2
Charge pressure line - part 1
Charge pressure line - part 2
Hydr.line speed range shifting front
Hydr.line speed range shifting back
Leak.line ground drive (oil tank)
Leak.line ground drive fr.final drive
Leak.line ground drive raer final drive
Suction line hydraulic system
Suction line hydraulic system
Hydraulic pumps OM502- OM444
HP line hydraulic system
SP variable delivery pump/fix.displ.m.
Batery mounting (hydraulics)
Diverter vave bloc
Valve block part 1
Steering line Part 1
Steering line Part 2
Hydraulic parts parking brake
Brake line tank/valve block
Brake line brake valve/fr.final drive
Trailer control valve
Pressure line valve block/hydr.system
Lines lift.hydraulics
Lines lift.hydraulics part 2
Lines discharge chute / flap
Lines front attachement
Lines transv.ground following
Lines sharpening device
Lines autopiot
Lines main clutch
Gear molasses pump
Auxiliary valve
Diesel fuel tank
Diesel fuel pipe
Diesel engine / Clutch
Engine support
Motor output drive (OM502)
Motor output drive (OM444)
Silencer OM502 (V8)
Silencer OM444 (V12)
Exhaust gas equipment
Air cleaning equipment OM 502 (V8)
Air cleaning equipment OM 444 (V12)
Cooling system /Radiator frame
Rotor / Air conditioner mounting
Sieve drum
Suction manifold
Suction duct
Suction fan
Suction system drive
Lines sieve drum
Sieve drum
Fan
Fan
Fan drive
Mounting parts radiator door
Turbo air pipes OM502 (V8)
Turbo air pipes OM444 (V12)
Cooling water pipes OM502 (V8)
Cooling water pipes OM444 (V12)
Cooling water compensating system OM502 (V8)
Cooling water compensating system OM 444 (V12)
Compressor OM502 (V8)
Compressor OM444 (V12)
Air pressure container OM502- OM444
Blow-out gun
Heater OM502- OM444
Air conditioning
Air conditioner drive
Additional generator
Terminals and connectors
Terminals and connectors
Secondary distributor (SD1,SD2,SD3)
Wir.loom conn. SD1,SD2,SD3,hydr. block
Wiring loom hydraulic pumps
Wiring loom SD1,sensors,senders
Wiring Harness CAN
Wiring loom supply lead SD1,SD2,SD3, SN 570001 - 580974
Wiring loom supply lead SD1,SD2,SD3, SN 580975 - 600600
Wiring loom conn. chopping drum SD2,SD3
Wiring Harness - chopping aggregate
Wiring loom (hydr.block)
Wiring loom cab
Wiring loom control area (4x6)
Wiring loom cab (4x2 & 4x5)
Wiring loom cab (4x2 & 4x5)
Wiring loom cab (4x3)
Wiring loom cab (4x4)
Wiring loom discharge chute sensors
Backlash-alarm impeller fan
Several wiring looms
Battery and ground cable (V8)
Battery and ground cable (V12)
Wiring Harness - Front lighting
Backing-up lights
Central lubrication
P.T.O shafts -roller drive
P.T.O shafts
P.T.O shafts -roller gear -below
Warning signs
General information labels
Label - Electric part
10
10
18
18
28
28
29
29
30
30
31
32
50
51
52
Позиция на иллюстрации
Заводской номер детали
Название детали
10
009246940
Flat sleeve-red
18
003030840
Plug-10-pole
28
003023510
Plug-2-pole
29
003023520
Plug-3-pole
30
003023530
Plug-4-pole
31
003023560
Coupling socket-2-pole
32
003023550
Coupling socket-3-pole
50
003035820
Wiring harness-left
51
003031930
Wiring harness-middle
52
003035830
Wiring harness-right
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/199.gif)
