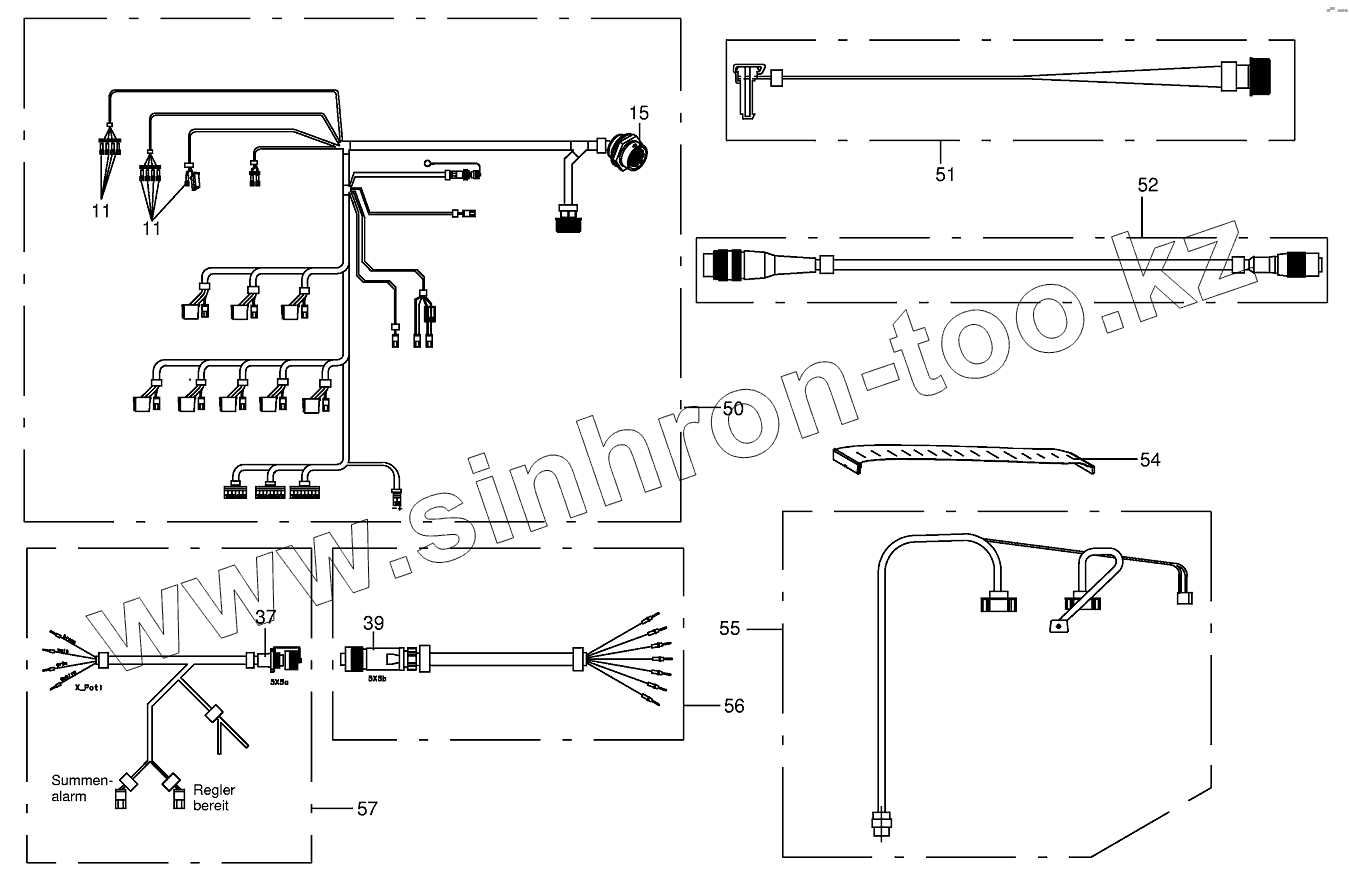

Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. Control box - wiring loom

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Feeder Feeder Housing with support foot Grain collecting plate / slotted cover Lower feed rollers Lower feed roller bearing Top feed rollers Top feed roller bearing Cover- Feeder Housing Auxiliary gearbox Spreader drive Roller gear Roller gearbox part 2 Top roller gearbox Oscillating levers/Tension spring P.T.O shafts Pivoting frame / linkage Lateral flotation system Lateral flotation system/Locking mech. Angle sensor- Pivoting frame Chopping aggregate -cpl. Chopping drum support with locking devic Chopping aggregate Chopping drum bearing Tensioning device- main drive Belt guide - main drive Angle sensor / securing key Shear bar adjustment Lift.mechan. feeder hous./front attachm. Mounting part sharpening device Chain carriage- sharpening device Sharpening Sharpening device drive Cover plate- sharpening device Transfer channel Grass channel Duct Cracker housing Roller basin Roller front Roller back Adjustment mandril w. angle sensor E-motor and Pulley for changing directions Cracker drive / tensioning device Rope winch Installation car Discharge accelerator Discharge accelerator /Roller Discharge accelerator housinge Discharge chute rotation drive Mounting parts discharge chute rotation Channel union Discharge chute drive flange Live ring with obstacle protection Upper discharge chute with wear plates Hydraulic components-discharge Discharge flap-end piece Discharge chute extension 10-row Discharge chute extension 12-row Hydraulic components discharge chute Work light to upper discharge chute Cab Cab Control panel (roof) Cab - glazing Steering columm Wear parts - driver's seat Cab - Sound deadening Cab - Cab lining, aerial Cab suspension / Deacon light / Horn Control box Control switsches Control box - wiring loom Multifunction lever / Circuit board Camera surveillance / Rear view mirror Panelling frame Frame / Plastic panelling Panelling top / roof flap Cab access Platform right Front panel / Headlight Lateral guard Joint / Wheel chock Dividing wall Warning panel for excess width Plastic panelling engine compartment Rear side panel Mudguard Ascending ladder Battery box Fire extinguisher Trailer hitch / installation parts frame Tyres Parking brake Steering axle Steering axle rocker arm Steering sensor Hydraulic tank Variable disqlacement pump Suction line - auxiliary line Cam lobe motor Traction drive wheel engine -front Traction drive wheel engine -rear Cooling line - ground drive part 1 Cooling line - ground drive part 2 Charge pressure line - part 1 Charge pressure line - part 2 Hydr.line speed range shifting front Hydr.line speed range shifting back Leak.line ground drive (oil tank) Leak.line ground drive fr.final drive Leak.line ground drive raer final drive Suction line hydraulic system Suction line hydraulic system Hydraulic pumps OM502- OM444 HP line hydraulic system SP variable delivery pump/fix.displ.m. Batery mounting (hydraulics) Diverter vave bloc Valve block part 1 Steering line Part 1 Steering line Part 2 Hydraulic parts parking brake Brake line tank/valve block Brake line brake valve/fr.final drive Trailer control valve Pressure line valve block/hydr.system Lines lift.hydraulics Lines lift.hydraulics part 2 Lines discharge chute / flap Lines front attachement Lines transv.ground following Lines sharpening device Lines autopiot Lines main clutch Gear molasses pump Auxiliary valve Diesel fuel tank Diesel fuel pipe Diesel engine / Clutch Engine support Motor output drive (OM502) Motor output drive (OM444) Silencer OM502 (V8) Silencer OM444 (V12) Exhaust gas equipment Air cleaning equipment OM 502 (V8) Air cleaning equipment OM 444 (V12) Cooling system /Radiator frame Rotor / Air conditioner mounting Sieve drum Suction manifold Suction duct Suction fan Suction system drive Lines sieve drum Sieve drum Fan Fan Fan drive Mounting parts radiator door Turbo air pipes OM502 (V8) Turbo air pipes OM444 (V12) Cooling water pipes OM502 (V8) Cooling water pipes OM444 (V12) Cooling water compensating system OM502 (V8) Cooling water compensating system OM 444 (V12) Compressor OM502 (V8) Compressor OM444 (V12) Air pressure container OM502- OM444 Blow-out gun Heater OM502- OM444 Air conditioning Air conditioner drive Additional generator Terminals and connectors Terminals and connectors Secondary distributor (SD1,SD2,SD3) Wir.loom conn. SD1,SD2,SD3,hydr. block Wiring loom hydraulic pumps Wiring loom SD1,sensors,senders Wiring Harness CAN Wiring loom supply lead SD1,SD2,SD3, SN 570001 - 580974 Wiring loom supply lead SD1,SD2,SD3, SN 580975 - 600600 Wiring loom conn. chopping drum SD2,SD3 Wiring Harness - chopping aggregate Wiring loom (hydr.block) Wiring loom cab Wiring loom control area (4x6) Wiring loom cab (4x2 & 4x5) Wiring loom cab (4x2 & 4x5) Wiring loom cab (4x3) Wiring loom cab (4x4) Wiring loom discharge chute sensors Backlash-alarm impeller fan Several wiring looms Battery and ground cable (V8) Battery and ground cable (V12) Wiring Harness - Front lighting Backing-up lights Central lubrication P.T.O shafts -roller drive P.T.O shafts P.T.O shafts -roller gear -below Warning signs General information labels Label - Electric part

11

11

15

37

39

50

51

52

54

55

56

57

Позиция на иллюстрации	Заводской номер детали		Название детали
003026890	003026890		Flat sleeve-blue
11	003026880		Flat sleeve-red
15	003024300		Socket-31-pole
37	003020311		Plug-7-pole
39	003020481		Attaching housing-7-pole
50	003027086		Wiring harness-panel
51	003029783		Wiring harness-display
52	003029790		Wiring harness-display
54	003027160		Cable
55	003028741		Wiring harness-display
56	003032990		Addition. wiring harness Hein.
57	003032980		Addition. wiring harness Hein.
