Blow-out gun
Heater OM502- OM444
Air conditioning
Air conditioner drive
Additional generator
Terminals and connectors
Terminals and connectors
Secondary distributor (SD1,SD2,SD3)
Wir.loom conn. SD1,SD2,SD3,hydr. block
Wiring loom hydraulic pumps
Wiring loom SD1,sensors,senders
Wiring Harness CAN
Wiring loom supply lead SD1,SD2,SD3, SN 570001 - 580974
Wiring loom supply lead SD1,SD2,SD3, SN 580975 - 600600
Wiring loom conn. chopping drum SD2,SD3
Wiring Harness - chopping aggregate
Wiring loom (hydr.block)
Wiring loom cab
Wiring loom control area (4x6)
Wiring loom cab (4x2 & 4x5)
Wiring loom cab (4x2 & 4x5)
Wiring loom cab (4x3)
Wiring loom cab (4x4)
Wiring loom discharge chute sensors
Backlash-alarm impeller fan
Several wiring looms
Battery and ground cable (V8)
Battery and ground cable (V12)
Wiring Harness - Front lighting
Backing-up lights
Central lubrication
P.T.O shafts -roller drive
P.T.O shafts
P.T.O shafts -roller gear -below
Warning signs
General information labels
Label - Electric part

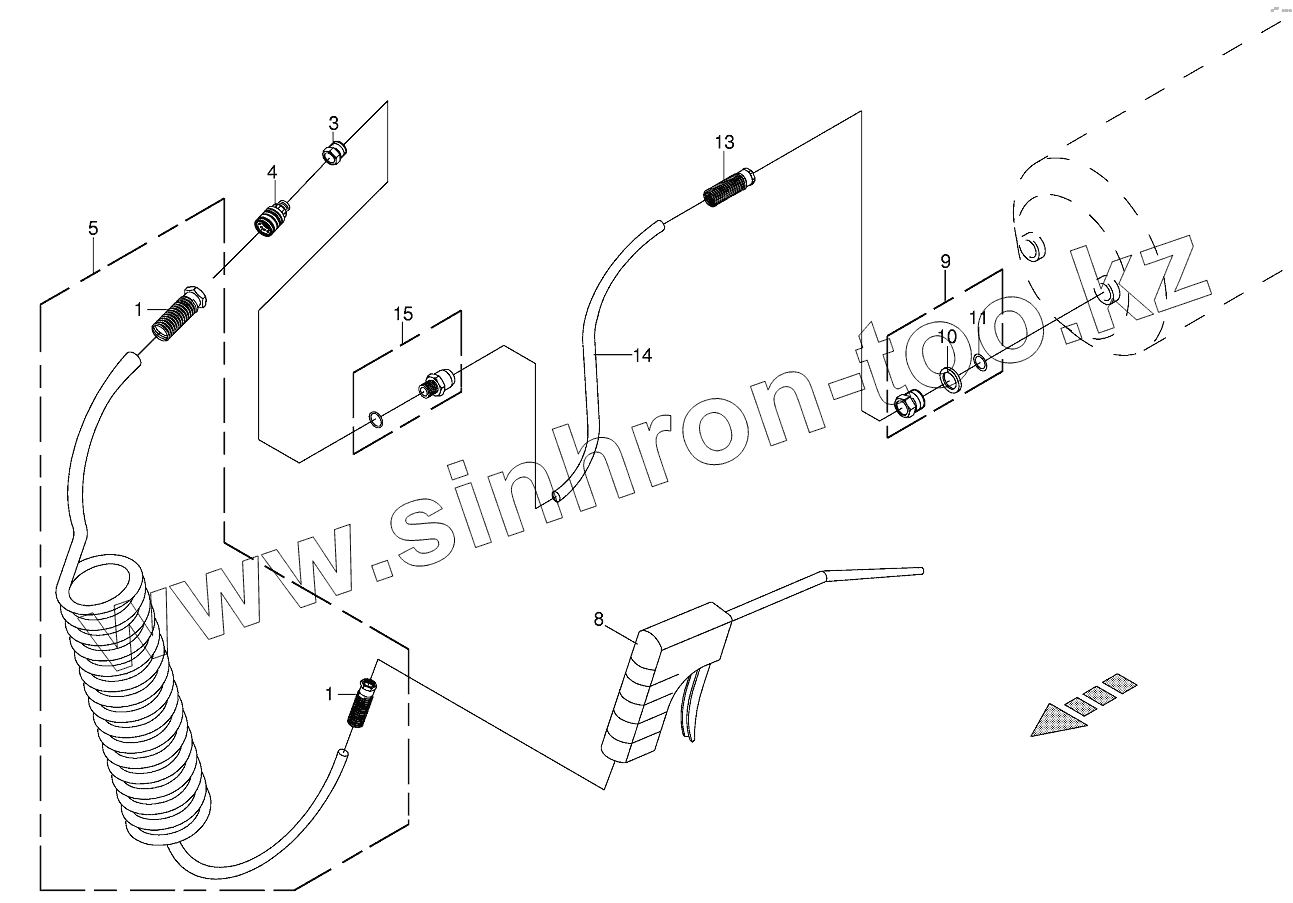

1
1
3
4
5
8
9
10
11
13
14
15
Позиция на иллюстрации
Заводской номер детали
Название детали
1
009403610
Straight screw-in connection
3
009402640
Sleeve bulkhead
4
009402650
Clutch w. external screw threa
5
009402151
Spiral hose
8
009402670
Blow-out gun
9
009455460
Reducing piece
10
009450880
Thrust ring
11
009450890
O-ring
13
009402660
Plugnipple with bend protectio
14
009402141
Plastic tubing-Id.-no.= 1m
15
009402630
Straight screw-in connection
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/171.gif)
