Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. Auxiliary valve

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
5
6
7
8
9
10
11
12
12
12
12
13
14
14
14
14
14
15
16
17
18
19
21
21
21
21
22
22
22
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
49
50
50
51
51
52
53
54
54
55
55
56
56
57
57
58
59

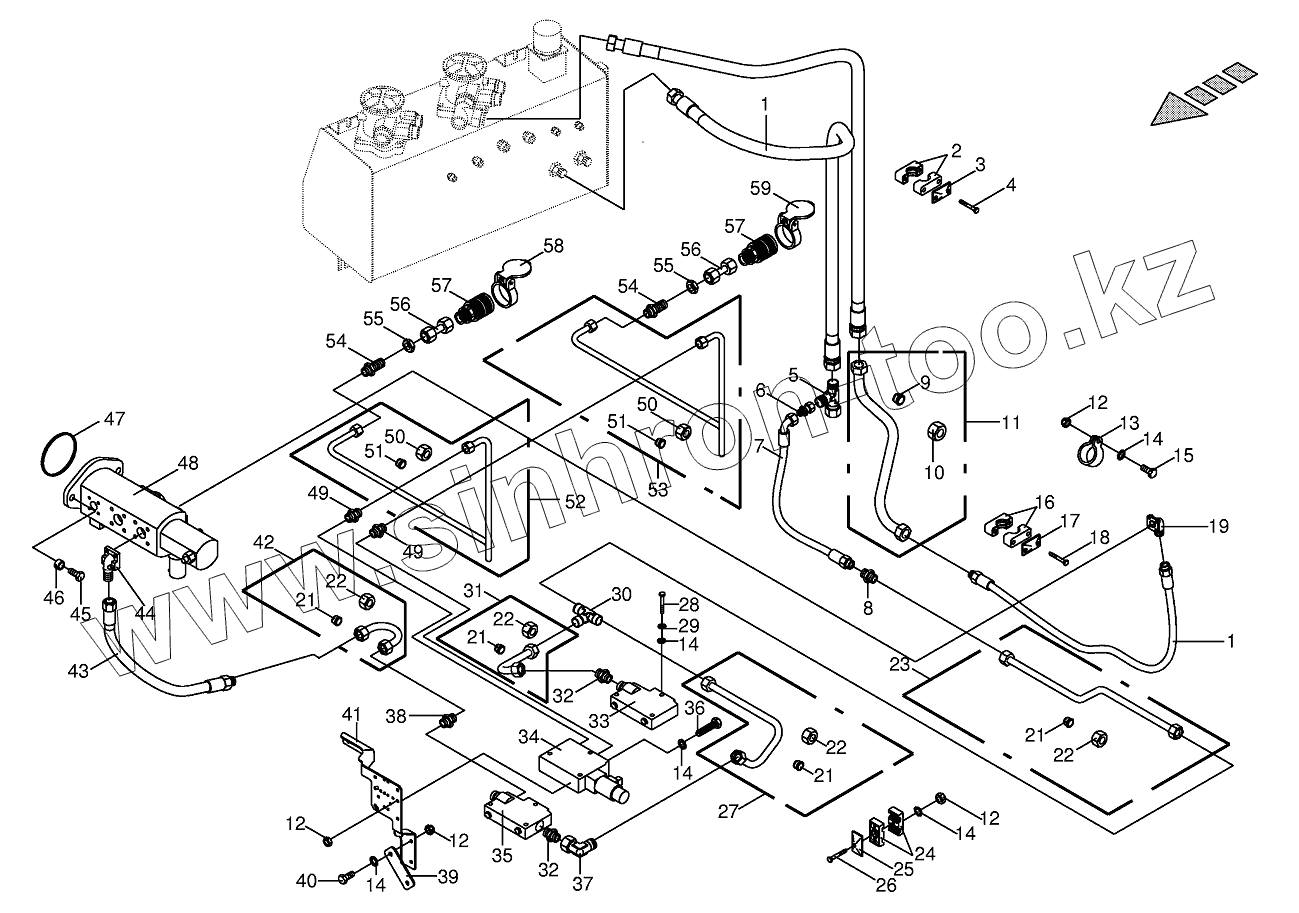

Позиция на иллюстрации Заводской номер детали Название детали
009191400 009191400 Sеаling sеt
009403670 009403670 Рrеssurе соntrоl vаlvе
270066660 270066660 Protective cap
270066640 270066640 Nozzle disc cap
009191160 009191160 Control solenoid
009191800 009191800 Repairing sets
009208320 009208320 Sealing set
270067650 270067650 Sealing set
1 009197910 High pressure hose line
2 009251500 Tube clamp-2 halves
3 009251251 Cover plate
4 009003470 Hex head bolt
5 009208270 Adjustable L connection
6 009190100 Reducer fitting
7 009200780 High pressure hose line
8 009210531 Connector
9 009197490 Cutting ring
10 009208050 Nozzle disc cap
11 002286670 Hydraulic line-incl. nozzle disc cap, cutting ring
12 009082100 Hex nut
13 009240510 Tube clip w. rubber
14 009099081 Detent edged washer
15 009006170 Hex head bolt
16 009251040 Tube clamp-2 halves
17 009251300 Cover plate
18 009014450 Hex head bolt
19 009197570 Flange connection
21 009210471 Cutting ring
22 009210430 Nozzle disc cap
23 002286660 Hydraulic line-incl. nozzle disc cap, cutting ring
24 009251460 Tube clamp-2 halves
25 009251340 Cover plate
26 009014121 Hex head bolt
27 002286640 Hydraulic line-incl. nozzle disc cap, cutting ring
28 009010100 Hex head bolt
29 009106030 Washer
30 009210731 T-connector
31 002286650 Hydraulic line-incl. nozzle disc cap, cutting ring-2 times
32 009209111 Male connector
33 009208010 Connecting plate
34 009190120 Directional-control valve
35 009208210 End plate
36 009002230 Hex head bolt
37 009210651 Angle lug
38 009210571 Male connector
39 002286840 Strap
40 009010542 Hex head bolt
41 002286850 Support
42 002286680 Hydraulic line-incl. nozzle disc cap, cutting ring
43 009209670 High pressure hose line
44 009197560 Flange connection
45 009006580 Hex head bolt
46 002223130 Bushing
47 009376100 O-ring
48 009191391 Рump-4 timеs
49 009209011 Male connector
50 009212060 Nozzle disc cap
51 009210461 Cutting ring
52 002286630 Hydraulic line-incl. nozzle disc cap, cutting ring
53 002286620 Hydraulic line-incl. nozzle disc cap, cutting ring
54 009210871 Straight 2-way connector
55 009085242 Hex nut-low form
56 002307430 Double nipple
57 009211300 Sleeve
58 009166020 Cover-blue
59 009199940 Cover-red
