Вернуться на главную
Поиск
Каталоги запчастей к технике
Сельхозтехника
KRONE
BIG-X-V8/BIG-X-V12
Wiring loom cab

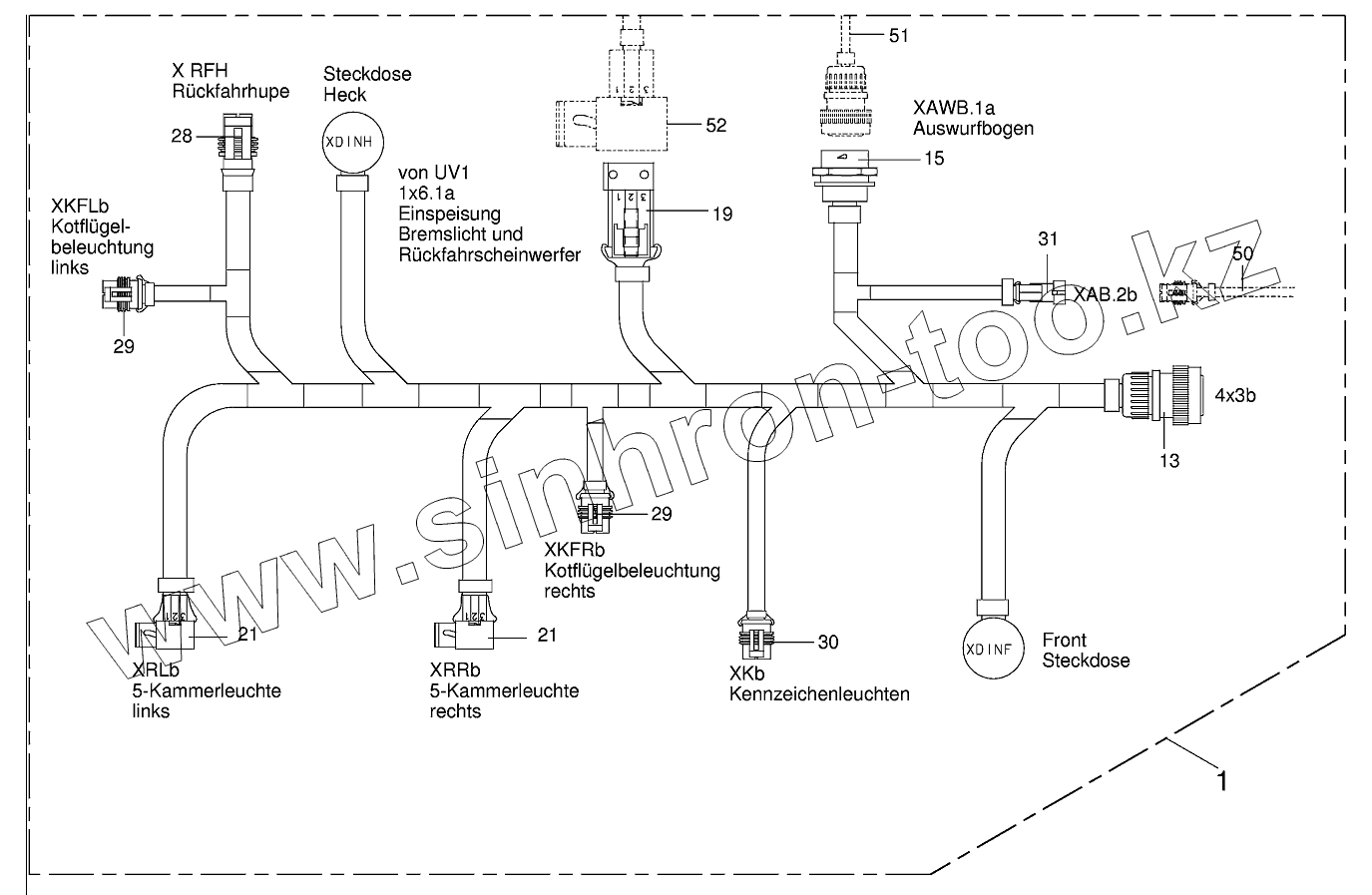

Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. Wiring loom cab
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
280CV-Q, 320CV-Q, 280CRI-Q (2013)
280CV-Q, 320CV-Q, 280CRI-Q (2013)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R200 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R240 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R280 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R320 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
ActiveMow R360 (2018)
AFL243RS (2013)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM 243CV, AM 283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 203CV, AM243CV, AM283CV (2018)
AM 243 (2018)
AM 243CV (2018)
AM 243CV (2018)
AM 243CV, AM283CV (2018)
AM 283 (2018)
AM 283CV (2018)
BiG X 500 (2018)
BiG X V8, BiG X V12 (2018)
BIG-M-400 (2016)
BIG-M-420 (2016)
BIG-M-420 (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-I (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-M-II (2016)
BIG-X-1000 (2016)
BIG-X-1000 (2016)
BIG-X-1100 (2016)
BIG-X-480 (2016)
BIG-X-480 (2017)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-500 (2010)
BIG-X-530 (2016)
BIG-X-530 (2017)
BIG-X-580 (2016)
BIG-X-580 (2017)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-600 (2016)
BIG-X-630 (2016)
BIG-X-630 (2017)
BIG-X-650 (2010)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-650 (2013)
BIG-X-700 (2010)
BIG-X-700 (2013)
BIG-X-700 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2013)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-700-1 (2016)
BIG-X-800 (2016)
BIG-X-800 (2016)
BIG-X-800/1000 (2013)
BIG-X-850-1 (2018)
BIG-X-850-1/1100-1 (2013)
BIG-X-850-1/1100-1 (2013)
BIG-X-850/1100 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
BIG-X-V8/BIG-X-V12 (2013)
Easycollect (2018)
EasyCut F360M (2018)
EasyFlow 300, 380 (2012)
EasyFlow 3000, 3800 (2013)
EasyFlow 3000, 3800 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3001 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EasyFlow 3801 (2013)
EC 27/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32 (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32CV (2013)
EC 28/32M (2013)
EC 28/32M (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28/32P (2013)
EC 28M (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CRI (2013)
EC 32CV (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC 360/400 (2013)
EC F280 (2018)
EC F280 / F320 (2013)
EC F280 M (2013)
EC F280/320/360 (2013)
EC F320 (2018)
EC F320 M (2013)
EC F320 M (2013)
EC F320CV (2013)
EC F320M/F360M (2013)
EC F360 (2018)
EC R280 (2013)
EC R320 (2013)
EC R360 (2013)
EC R400 (2018)
EC-9000 (2008)
EC270CV/320CV (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280/320 (2013)
EC280CV-Q/320CV-Q (2013)
EC280CV/320CV (2013)
EC280CV/320CV/280CR (2013)
EC280CV/320CV/C280CRI (2013)
EC28CV/32CV/32CV-F (2013)
EC28CV/C32CV/32CV-F (2013)
EC32CV/32CV-F (2013)
EColl.6000,7500,6000FP (2013)
EColl.6000,7500,9000,6000F (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000,7500,9000,6000F/FP (2013)
EColl.6000-7500-9000-6000CL/JD (2013)
ECollect 753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECollect753, 903, 1053 (2013)
ECR280CV/320CV (2012)
KW 8.50-8 (2018)
KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018)
X-Disc 6200 (2013)
X-Disc 6200 (2013)
Схема
>
Не выбрано
Feeder
Feeder Housing with support foot
Roller gear
Roller gearbox part 2
Lower feed rollers
Lower feed roller bearing
Top feed rollers
Top feed roller bearing
Top roller gearbox
Grain collecting plate/slotted cover
Oscillating levers/Tension spring
Cover-Feeder Housing
Pivoting frame/linkage
Lateral flotation system/Locking mech
Lateral flotation system
Angle sensor-Pivoting frame
P.T.O shafts
Chopping aggregate-cpl.
Chopping aggregate
Chopping drum bearing
Chopping drum support with locking devic
Angle sensor/securing key
Shear bar adjustment
Lift.mechan. feeder hous./front attachm
Mounting part sharpening device
Chain carriage-sharpening device
Sharpening
Sharpening device drive
Cover plate-sharpening device
Grass channel
Transfer channel
Discharge accelerator
Discharge accelerator/Roller
Discharge accelerator housinge
Discharge chute rotation drive
Mounting parts discharge chute rotation
Channel union
Discharge chute drive flange
Live ring with obstacle protection
Upper discharge chute with wear plates
Hydraulic components-discharge
Discharge flap-end piece
Discharge chute extension 10-row
Discharge chute extension 12-row
Hydraulic components discharge chute
Work light to upper discharge chute
Parking brake
Tyres
Steering axle
Steering axle rocker arm
Steering sensor
Trailer hitch/installation parts frame
Steering columm
Wear parts-driver's seat
Control box
Control switsches
Control box-wiring loom
Multifunction lever/Circuit board
Cab
Cab 570001-570000
Control panel (roof)
Air conditioning
Cab-glazing
Cab-Sound deadening
Cab-Cab lining, aerial
Cab suspension/Deacon light/Horn
Tensioning device-main drive
Belt guide-main drive
Cracker drive/tensioning device
Sieve drum drive
Lines sieve drum
Spreader drive
Auxiliary gearbox
Suction system drive
Compressor
Compressor
Air pressure container
Blow-out gun
Fan drive
Air conditioner drive
Additional generator
Hydraulic tank
Variable disqlacement pump
Suction line-auxiliary line
Cooling line-ground drive part 1
Cooling line-ground drive part 2
Traction drive wheel engine-front
Cam lobe motor
Traction drive wheel engine-rear
Charge pressure line-part 1
Charge pressure line-part 2
Hydr.line speed range shifting front
Hydr.line speed range shifting back
Leak.line ground drive fr.final drive
Leak.line ground drive (oil tank)
Leak.line ground drive raer final drive
HP line hydraulic system
SP variable delivery pump/fix.displ.m.
Suction line hydraulic system
Suction line hydraulic system
Batery mounting (hydraulics)
Diverter vave bloc
Diverter vave bloc
Valve block part I
Valve block part II
Pressure line valve block/hydr.system
Steering lines part 1( rear steer.axle)
Steering line (up to brake valve)
Hydraulic parts parking brake
Brake line tank/valve block
Brake line brake valve/fr.final drive
Lines lift.hydraulics part 1
Lines lift.hydraulics part 2
Lines discharge chute/flap
Lines front attachement
Lines transv.ground following
Lines sharpening device
Lines autopiot
Lines main clutch
Diesel fuel tank
Diesel fuel pipe
Diesel engine/Clutch
Engine support
Cooling system/Radiator frame
Rotor/Air conditioner mounting
Fan
Fan
Sieve drum
Suction manifold
Mounting parts radiator door
Air cleaning equipment OM 502 (V8)
Air cleaning equipment OM 444 (V12)
Exhaust gas equipment
Silencer
Silencer
Turbo air pipes OM502 (V8)
Turbo air pipes OM444 (V12)
Cooling water pipes OM502 (V8)
Cooling water pipes OM444 (V12)
Cooling water compensating system
Cooling water compensating system
Hydraulic pumps OM502-OM444
Motor output drive
Motor output drive
Heater OM502-OM444
Suction fan
Suction duct
Panelling frame
Panelling top/roof flap
Cab access
Front panel/Headlight
Lateral guard
Rear side panel
Plastic panelling
Plastic panelling engine compartment
Battery box
Fire extinguisher
Joint/Wheel chock
Mudguard
Platform right
Warning panel for excess width
Dividing wall
Ascending ladder
Terminals and connectors
Secondary distributor (SD1,SD2,SD3)
Wiring loom conn. SD1,SD2,SD3,hydr. block
Wiring loom hydraulic pumps
Wiring loom SD1,sensors,senders
Wiring Harness CAN
Wiring loom supply lead SD1,SD2,SD3
Wiring loom conn. chopping drum SD2,SD3
Wiring Harness-chopping aggregate
Wiring loom (hydr.block)
Wiring loom cab
Wiring loom control area (4x6)
Wiring loom cab
Wiring loom cab
Wiring loom cab
Wiring loom cab
Wiring loom discharge chute sensors
Several wiring looms
Battery and ground cable (V8)
Battery and ground cable (V12)
Backing-up lights
General information labels
Warning signs
P.T.O shafts-roller drive
P.T.O shafts
P.T.O shafts-roller gear-below
Duct
Cracker housing
Roller back
Roller front
Adjustment mandril w. angle sensor
E-motor and
Roller basin
Pulley for changing directions
Installation car
Rope winch
1
13
15
19
21
21
28
29
29
30
31
50
51
52
Позиция на иллюстрации
Заводской номер детали
Название детали
1
003031480
Wiring harness
13
003024310
Plug-31-pole
15
003024300
Socket-31-pole
19
003030850
Plug-6-pole
21
003030820
Bushing housing-6-pole
28
003023510
Plug-2-pole
29
003023520
Plug-3-pole
30
003023530
Plug-4-pole
31
003023560
Coupling socket-2-pole
50
003031690
Wiring harness-sensors
51
003031700
Wiring harness
52
003032490
Wiring harness-sensors /actuators
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
/178.gif)
