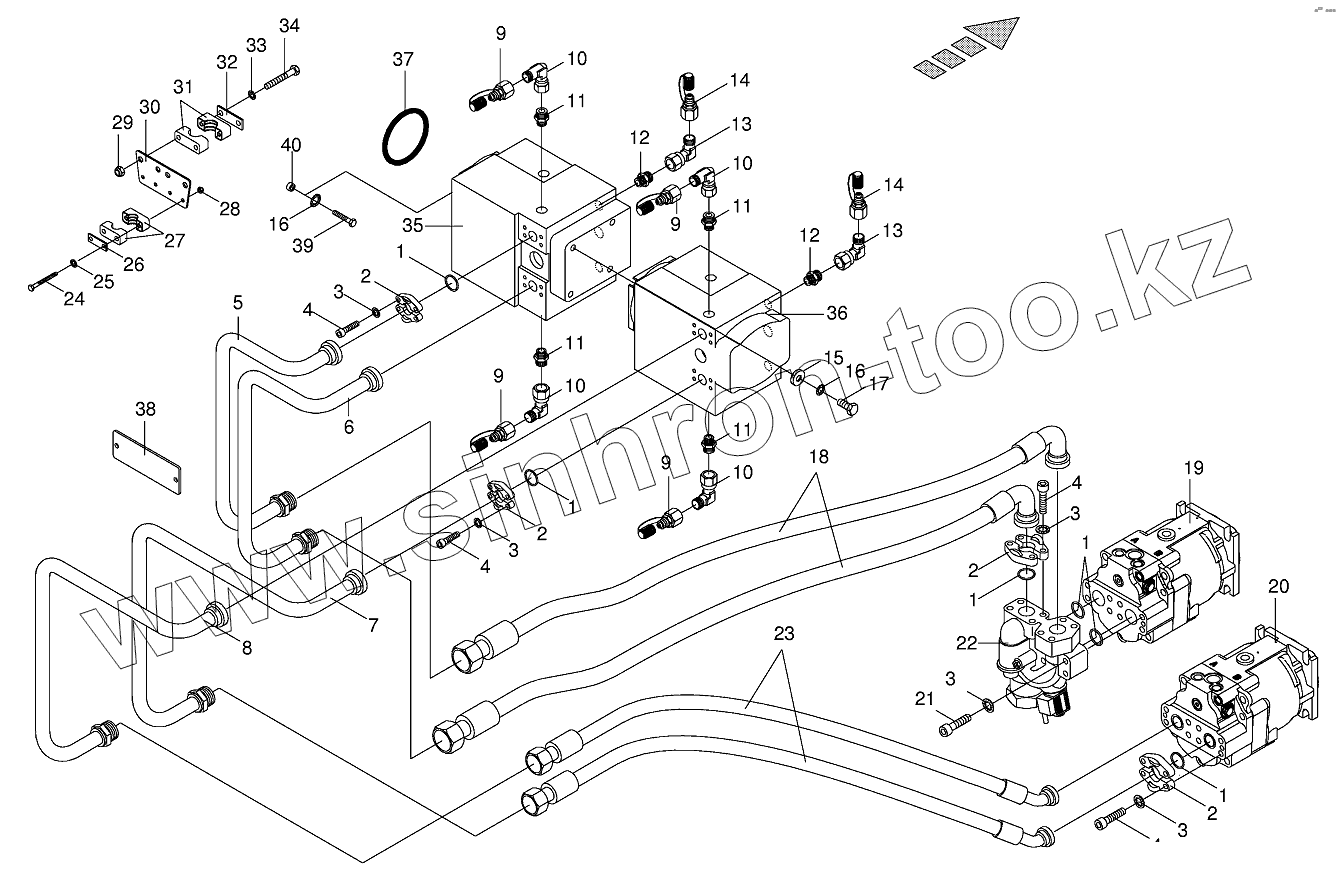

Каталог запасных частей к технике: KRONE BIG-X-V8/BIG-X-V12. HP line hydraulic system

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1
1
1
2
2
2
2
3
3
3
3
3
4
4
4
5
5
6
6
7
8
9
9
9
10
10
10
10
11
11
11
11
12
12
13
13
14
14
15
16
16
17
18
19
20
21
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
Позиция на иллюстрации Заводской номер детали Название детали
009199420 009199420 Sealing set
009199500 009199500 Sealing set
1 009375580 O-ring
2 009208610 SAE-flange section
3 009099110 Detent edged washer
4 009003120 Allen screw
5 002261652 Solder piece
5 002220592 Solder piece
6 002220582 Solder piece-Feeder/flow
6 002261642 Solder piece-Feeder/flow
7 002220642 Solder piece-Front attachment/flow
7 002261663 Solder piece-Front attachment/flow
8 002220652 Solder piece-Front attachment/return
8 002261672 Solder piece-Front attachment/return
9 009199370 Connector f.mini-test equipm.
10 009208250 Lug
11 009199360 Male connector
12 009199331 Male connector
13 009210671 Angle lug
14 009208680 Connector f.mini-test equipm.
15 009103200 Washer
16 009099101 Detent edged washer
17 009003510 Hex head bolt
18 009200460 High pressure hose line
19 002220620 Fixed displacement motor-Feeder
20 002220670 Fixed displacement motor
21 009030180 Allen screw
22 002191620 Fast-stop valve
23 009197701 High pressure hose line
24 009010342 Hex head bolt
25 009099061 Detent edged washer
26 009251450 Cover plate
27 009251031 Tube clamp-2 halves
28 009082080 Hex nut
29 009082120 Hex nut
30 002191590 Junction panel
31 009251521 Тubе сlаmp-2 hаlvеs
32 009251300 Cover plate
33 009099091 Detent edged washer
34 009002871 Hex head bolt
35 002220610 Variable displacement pump-Feeder
36 002220680 Variable displacement pump
37 009376100 O-ring
38 002191602 Plate
39 009014510 Hex head bolt
40 002223130 Bushing
