Каталог запасных частей к технике: KRONE BiG X V8, BiG X V12. Shear bar adjustment
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
10
10
10
10
10
11
11
12
12
12
12
12
13
13
14
14
15
16
16
16
16
17
18
18
19
20
20
21
22
22
22
23
23
23
23
23
23
24
24
24
25
25
25
26
26
26
26
27
27
28
28
29
29
30
31
32
33
34
35
35
36
36
37
37
38
38
39
39
40
40
41
42
43
43
43
44
44
44
44
45
46
46

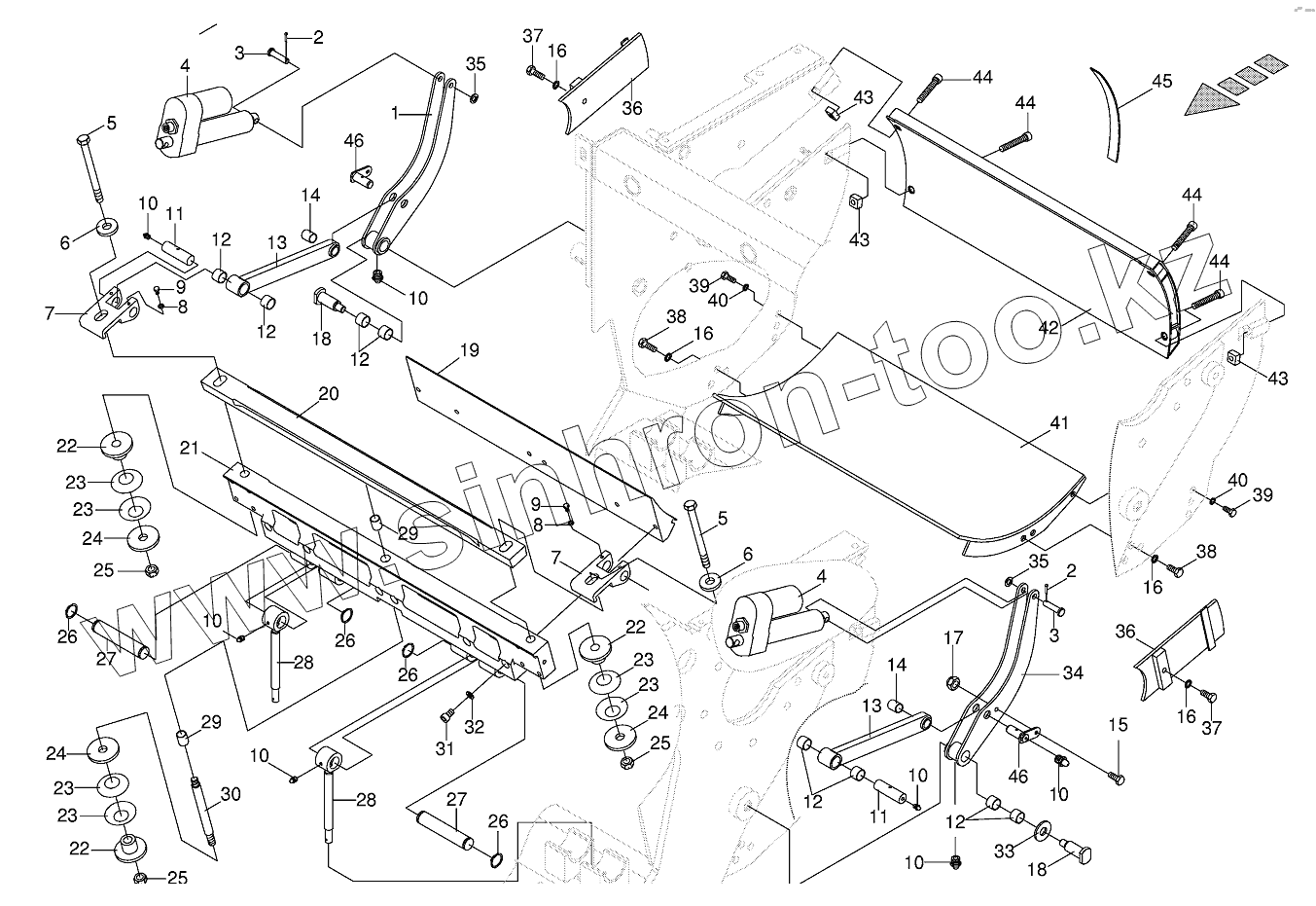

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00 216 455 0 | Rocker -right, incl. bushing, grease nipple | |
| 2 | 00 912 066 1 | Cotter pin | |
| 3 | 00 217 711 0 | Pin | |
| 4 | 00 303 162 0 | Engine | |
| 5 | 00 901 217 1 | Hex head bolt | |
| 6 | 00 221 637 0 | Washer | |
| 7 | 00 221 636 3 | Tension plate | |
| 8 | 00 908 210 0 | Hex nut | |
| 9 | 00 902 405 0 | Hex head bolt | |
| 10 | 00 919 105 0 | Grease niple | |
| 11 | 00 217 722 2 | Pin | |
| 12 | 00 935 334 0 | Bearing bush | |
| 13 | 00 216 456 0 | Lever -incl. bushing | |
| 14 | 00 935 327 0 | Bearing bush | |
| 15 | 00 900 617 0 | Hex head bolt | |
| 16 | 00 909 910 1 | Detent edged washer | |
| 17 | 00 908 706 0 | Locknut | |
| 18 | 00 217 712 0 | Attachment bolt | |
| 19 | 00 224 278 0 | Formed part | |
| 20 | 00 217 125 0 | Counter blade -grass standard | |
| 20 | 00 224 261 0 | Counter blade -maize, grass special | |
| 21 | 00 224 277 1 | Basic structure | |
| 22 | 00 221 631 4 | Guide | |
| 23 | 00 909 928 0 | Spring washer | |
| 24 | 00 221 632 0 | Washer | |
| 25 | 00 908 915 0 | Castellated nut | |
| 26 | 00 911 535 0 | Circlip | |
| 27 | 00 221 462 0 | Pin | |
| 28 | 00 221 497 1 | Con-rod | |
| 29 | 00 935 327 0 | Bearing bush | |
| 30 | 00 217 723 0 | Spindle | |
| 31 | 00 903 142 1 | Allen screw | |
| 32 | 00 910 035 0 | Spring washer | |
| 33 | 00 217 715 0 | Washer | |
| 34 | 00 216 454 0 | Rocker -left, incl. bushing, grease nipple | |
| 35 | 00 910 506 1 | Washer | |
| 36 | 00 217 530 0 | Slot cover | |
| 37 | 00 900 657 0 | Hex head bolt | |
| 38 | 00 900 656 0 | Hex head bolt | |
| 39 | 00 900 636 0 | Hex head bolt | |
| 40 | 00 909 909 1 | Detent edged washer | |
| 41 | 00 228 281 0 | Floor plate | |
| 42 | 00 217 326 0 | Cover plate | |
| 43 | 00 228 285 0 | Threaded piece | |
| 44 | 00 903 147 0 | Allen screw | |
| 45 | 00 940 122 0 | Self-adhesive sealing strip -Id.-no.= 1m | |
| 46 | 00 216 457 0 | Pin |
