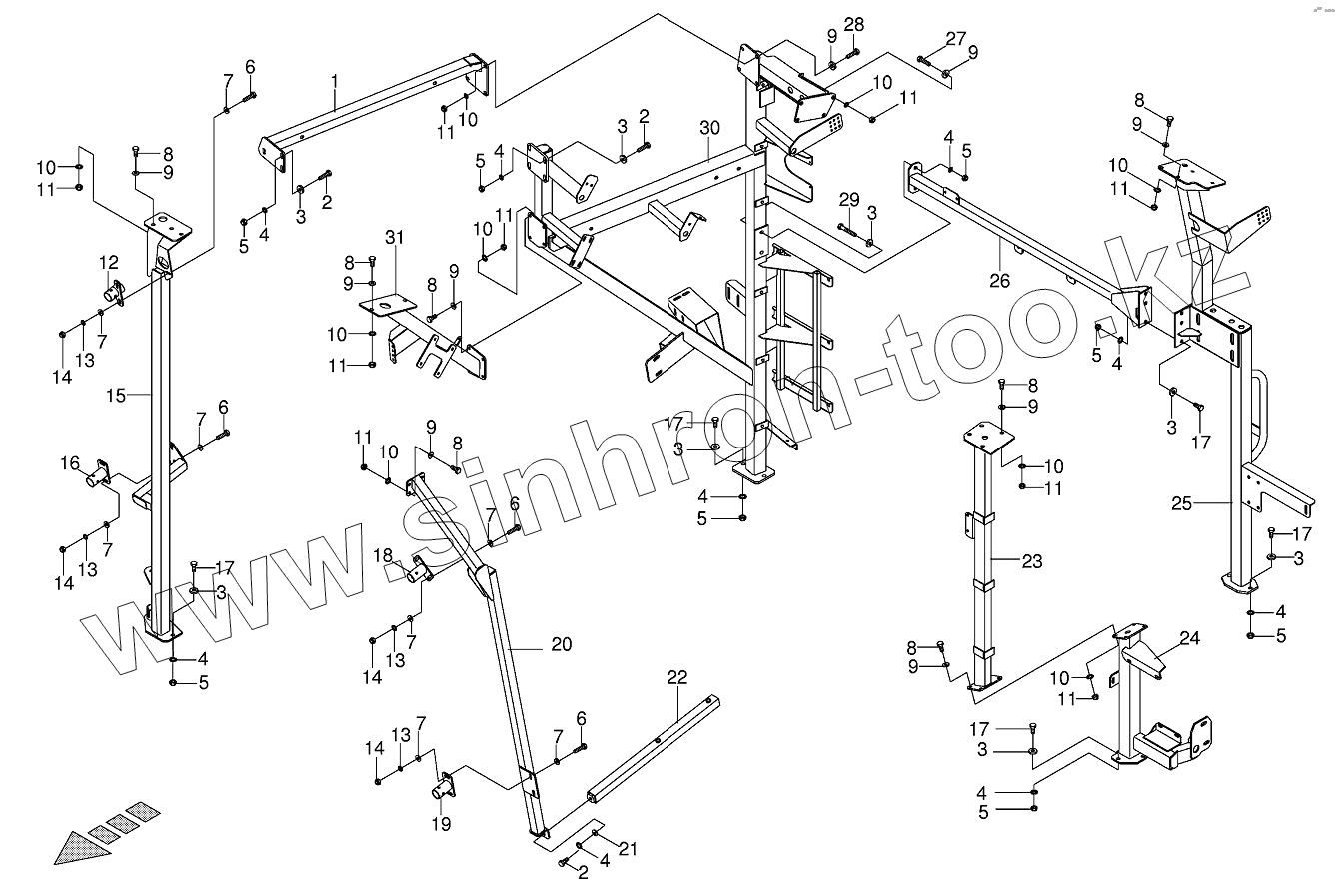

Каталог запасных частей к технике: KRONE BiG X V8, BiG X V12. Panelling frame
1
2
2
2
3
3
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
6
6
6
6
7
7
7
7
7
7
7
8
8
8
8
8
8
8
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
11
11
11
11
11
11
11
11
11
12
13
13
13
13
14
14
14
14
15
16
17
17
17
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 00 217 575 1 | Oil tank support | |
| 2 | 00 900 657 0 | Hex head bolt | |
| 3 | 00 910 320 0 | Washer | |
| 4 | 00 909 910 1 | Detent edged washer | |
| 5 | 00 908 215 0 | Hex nut | |
| 6 | 00 900 616 0 | Hex head bolt | |
| 7 | 00 910 413 0 | Washer | |
| 8 | 00 900 637 0 | Hex head bolt | |
| 9 | 00 910 361 0 | Washer | |
| 10 | 00 909 909 1 | Detent edged washer | |
| 11 | 00 908 212 0 | Hex nut | |
| 12 | 00 228 452 0 | Take up-tube | |
| 13 | 00 909 908 1 | Detent edged washer | |
| 14 | 00 908 210 0 | Hex nut | |
| 15 | 00 217 550 0 | Support -right middle | |
| 16 | 00 226 452 0 | Take up-tube | |
| 17 | 00 900 656 0 | Hex head bolt | |
| 18 | 00 228 447 0 | Take up-tube | |
| 19 | 00 228 450 0 | Take up-tube | |
| 20 | 00 228 426 0 | Support -left front | |
| 21 | 00 910 640 1 | Washer | |
| 22 | 00 228 441 0 | Cladding retainer | |
| 23 | 00 217 563 0 | Support -left middle top | |
| 24 | 00 217 561 1 | Support -left middle below | |
| 25 | 00 217 519 0 | Support -back left | |
| 26 | 00 217 568 2 | Tie bar -back | |
| 27 | 00 900 639 0 | Hex head bolt | |
| 28 | 00 900 638 0 | Hex head bolt | |
| 29 | 00 901 458 0 | Hex head bolt | |
| 30 | 00 217 546 1 | Support -back right | |
| 31 | 00 217 569 1 | Strut -right |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
