Каталог запасных частей к технике: KRONE BiG X V8, BiG X V12. Lateral flotation system

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Feeder Feeder Housing with support foot Roller gear Roller gearbox part 2 Lower feed rollers Lower feed roller bearing Top feed rollers Top feed roller bearing Top roller gearbox Grain collecting plate / slotted cover Oscillating levers/Tension spring Cover- Feeder Housing Pivoting frame / linkage Lateral flotation system/Locking mech. Lateral flotation system Angle sensor- Pivoting frame P.T.O shafts Chopping aggregate -cpl. without blades Chopping aggregate Chopping drum bearing Chopping drum support with locking devic Angle sensor / securing key Shear bar adjustment Lift.mechan. feeder hous./front attachm. Mounting part sharpening device Chain carriage- sharpening device Sharpening Sharpening device drive Cover plate- sharpening device Grass channel Transfer channel Discharge accelerator Discharge accelerator /Roller Discharge accelerator housinge Discharge chute rotation drive Mounting parts discharge chute rotation Channel union Discharge chute drive flange Live ring with obstacle protection Upper discharge chute with wear plates Hydraulic components-discharge chute Discharge flap-end piece Discharge chute extension 10-row Discharge chute extension 12-row Hydraulic components discharge chute Work light to upper discharge chute Parking brake Tyres Steering axle Steering axle rocker arm Steering sensor Trailer hitch / installation parts frame Steering columm Wear parts - driver's seat Control box Control switsches Control box - wiring loom Multifunction lever / Circuit board Cab 556000 - 570000 Cab 570001 - 570000 Control panel (roof) Air conditioning Cab - glazing Cab - Sound deadening Cab - Cab lining, aerial Cab suspension / Deacon light / Horn Tensioning device- main drive Belt guide - main drive Cracker drive / tensioning device Sieve drum drive Lines sieve drum Spreader drive Auxiliary gearbox Suction system drive Compressor OM502 (V8) Compressor OM444 (V12) Air pressure container OM502- OM444 Blow-out gun Fan drive Air conditioner drive Additional generator Hydraulic tank Variable disqlacement pump Suction line - auxiliary line Cooling line - ground drive part 1 Cooling line - ground drive part 2 Traction drive wheel engine -front Cam lobe motor Traction drive wheel engine -rear Charge pressure line - part 1 Charge pressure line - part 2 Stufenumschaltung vorne Hydr Hydr.line speed range shifting back Leak.line ground drive fr.final drive Leak.line ground drive (oil tank) Leak.line ground drive raer final drive HP line hydraulic system SP variable delivery pump/fix.displ.m. Suction line hydraulic system Suction line hydraulic system Batery mounting (hydraulics) Diverter vave bloc Diverter vave bloc Valve block part I Valve block part II Pressure line valve block/hydr.system Steering lines part 1( rear steer.axle) Steering line (up to brake valve) Hydraulic parts parking brake Brake line tank/valve block Brake line brake valve/fr.final drive Lines lift.hydraulics part 1 Lines lift.hydraulics part 2 Lines discharge chute / flap Lines front attachement Lines transv.ground following Lines sharpening device Lines autopiot-optional Lines main clutch Diesel fuel tank Diesel fuel pipe Diesel engine / Clutch Engine support Cooling system /Radiator frame Rotor / Air conditioner mounting Fan Fan gearbox Sieve drum Suction manifold Mounting parts radiator door Air cleaning equipment OM 502 (V8) Air cleaning equipment OM 444 (V12) Exhaust gas equipment Silencer OM502 (V8) Silencer OM502 OM444 (V12) Turbo air pipes OM502 (V8) Turbo air pipes OM444 (V12) Cooling water pipes OM502 (V8) Cooling water pipes OM444 (V12) Cooling water compensating system OM502 (V8) Cooling water compensating system OM 444 (V12) Hydraulic pumps OM502- OM444 Motor output drive (OM502) Motor output drive (OM444) Heater OM502- OM444 Suction fan Suction duct Panelling frame Panelling top / roof flap Cab access Front panel / Headlight Lateral guard Rear side panel Plastic panelling Plastic panelling engine compartment Battery box Fire extinguisher Joint / Wheel chock Mudguard Platform right Warning panel for excess width Dividing wall Ascending ladder Terminals and connectors Secondary distributor (SD1, SD2, SD3) Wir.loom conn. SD1, SD2, SD3,hydr. block Wiring loom hydraulic pumps Wiring loom SD1,sensors,senders Wiring Harness CAN Wiring loom supply lead SD1, SD2, SD3 Wiring loom conn. chopping drum SD2,SD3 Wiring Harness - chopping aggregate Wiring loom (hydr.block) Wiring loom cab Wiring loom control area (4x6) Wiring loom cab (4x2 & 4x5) Wiring loom cab (4x2 & 4x5) Wiring loom cab (4x3) Wiring loom cab (4x4) Wiring loom discharge chute sensors Several wiring looms Battery and ground cable (V8) Battery and ground cable (V12) Backing-up lights General information labels Warning signs P.T.O shafts -roller drive P.T.O shafts P.T.O shafts -roller gear -below Duct Cracker housing Roller back Roller front Adjustment mandril w. angle sensor E-Motor und Spannspille Roller basin Pulley for changing directions Installation car Rope winch

1

2

3

4

5

6

7

8

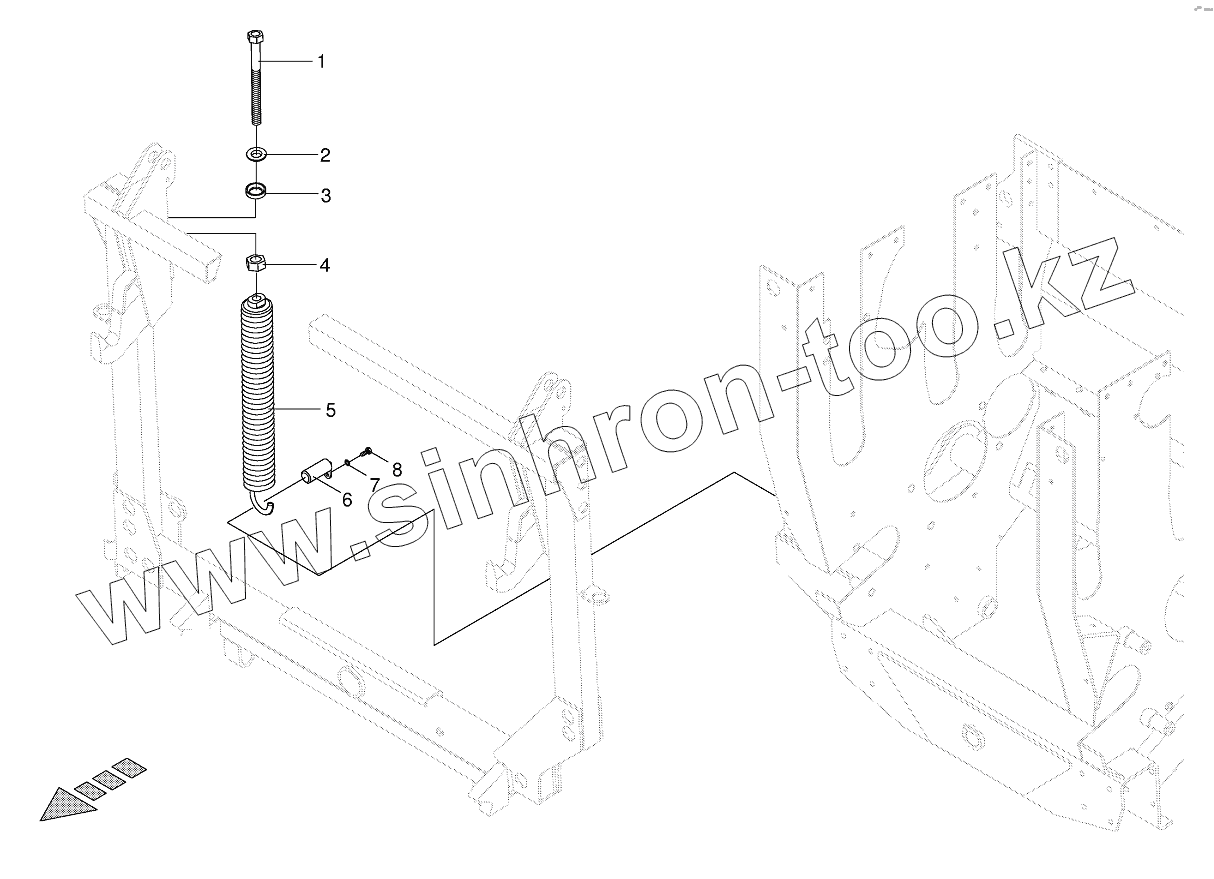

Позиция на иллюстрации	Заводской номер детали		Название детали
1	00 217 500 0		Spindle
2	00 910 673 0		Washer
3	00 910 674 0		Ball socket
4	00 228 016 1		Trapezoid nut
5	00 151 150 4		Tension spring
6	00 217 492 0		Pin
7	00 909 908 1		Detent edged washer
8	00 900 612 0		Hex head bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
