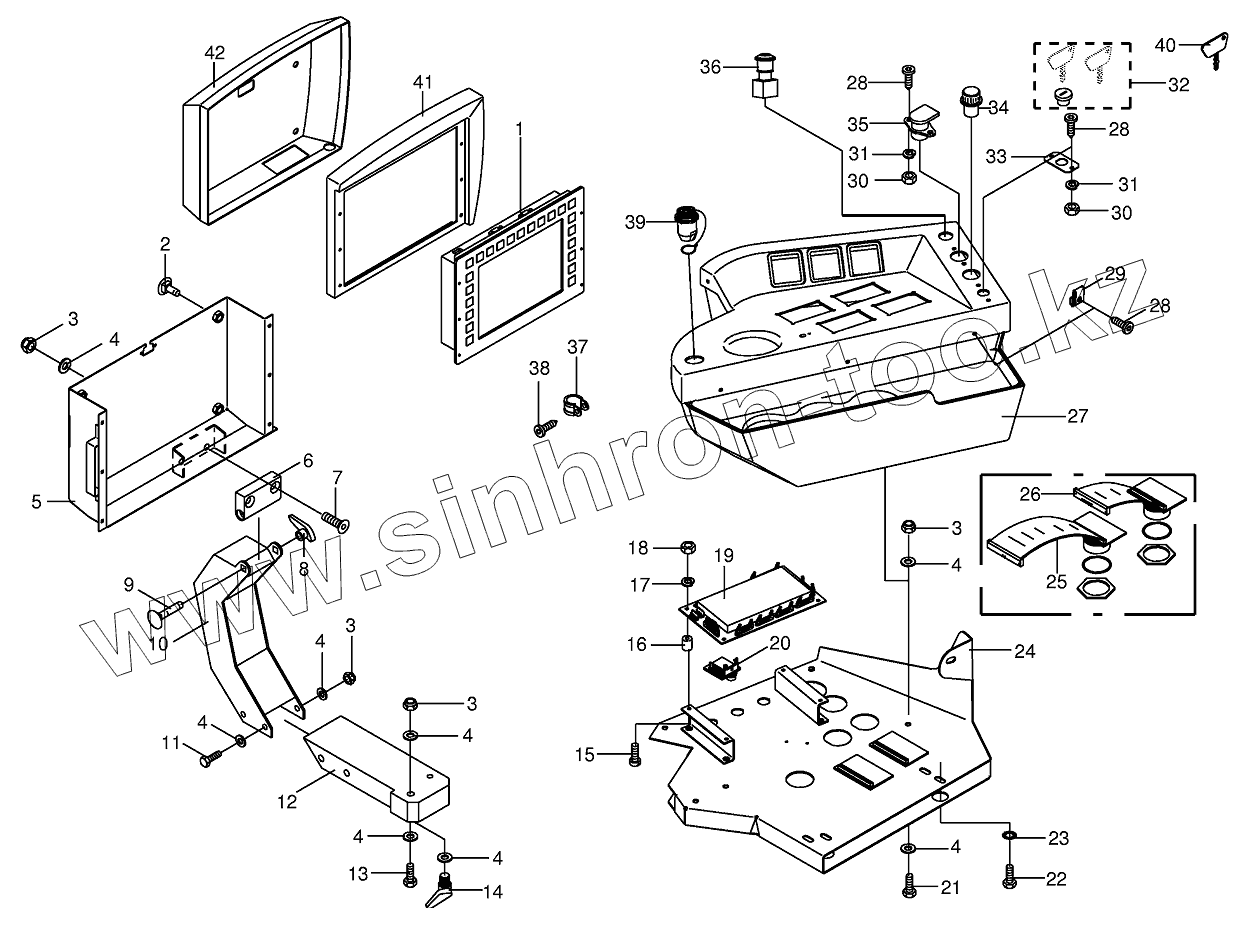

Каталог запасных частей к технике: KRONE BiG X V8, BiG X V12. Control box

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
3
3
4
4
4
4
4
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
27
28
28
28
29
30
30
31
31
32
33
34
35
36
37
38
39
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
1 00 302 761 6 Terminal
2 00 905 231 1 Coach bolt
3 00 908 706 0 Locknut
4 00 910 413 0 Washer
5 00 228 654 0 Mounting frame
6 00 232 966 1 Pivoted joint
7 00 904 026 0 Countersunkscrew
8 00 924 952 0 Adjustable fastening lever
9 00 904 743 0 Coach bolt
10 00 217 894 0 Display bracket
11 00 901 008 1 Hex head bolt
12 00 232 965 1 Turning bracket
13 00 900 264 0 Hex head bolt
14 00 924 953 0 Adjustable fastening lever
15 00 903 422 0 Allen screw
16 00 924 202 0 Rubber pad
17 00 910 001 0 Spring washer
18 00 908 006 1 Hex nut
19 00 302 455 2 Job computer
20 00 302 975 0 Circuit board
21 00 900 614 0 Hex head bolt
22 00 900 612 0 Hex head bolt
23 00 909 908 1 Detent edged washer
24 00 232 776 1 Support
25 00 302 782 0 Plug -31-pole
26 00 302 787 0 Electronic control plate
27 00 220 622 0 Control box
27 00 220 359 2 Control box
28 00 904 769 0 Fillister head screw
29 00 908 042 0 Nut
30 00 908 207 1 Hex nut
31 00 910 031 0 Spring washer
32 00 302 656 0 Ignition switch
33 00 233 127 0 Anti-twist device
34 00 302 649 0 Cigar lighter
35 00 924 676 0 Socket -2-pole
36 00 301 573 0 Instantanequs cut-out switch
37 00 924 017 0 Tube clip w. rubber
38 00 906 805 0 Slotted pan head screw
39 00 302 472 0 Connector -7-pole
40 00 303 349 0 Ignition key
41 00 227 984 0 Plastic top force
42 00 227 985 0 Plastic material lower part
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
