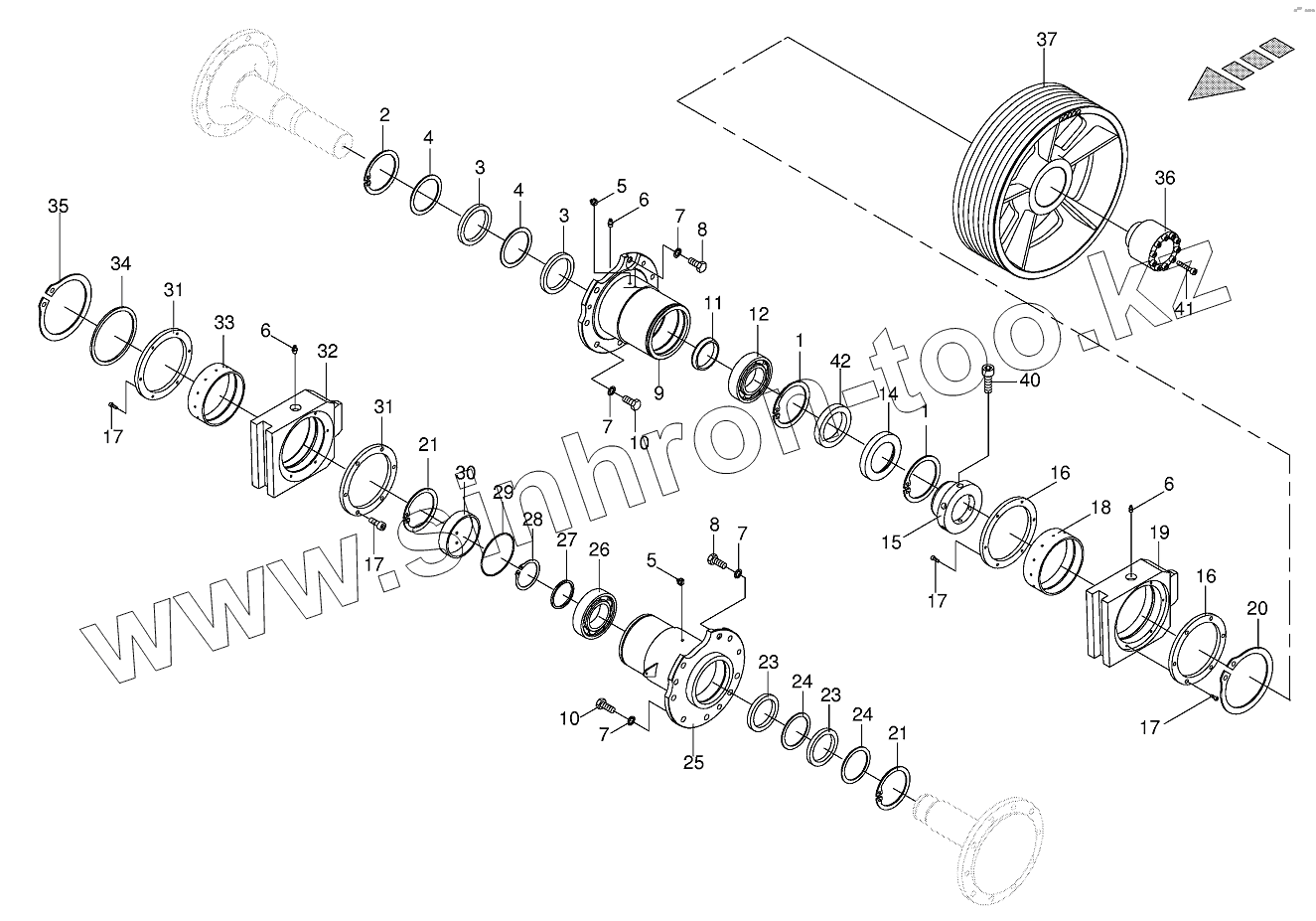

Каталог запасных частей к технике: KRONE BiG X V8, BiG X V12. Chopping drum bearing

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
3
4
4
6
6
6
7
7
7
7
8
8
9
10
10
11
12
14
15
16
16
17
17
17
17
18
19
20
21
21
23
23
24
24
25
26
27
28
29
30
31
31
32
33
34
35
36
37
40
41
42
Позиция на иллюстрации Заводской номер детали Название детали
1 00 911 698 0 Circlip
2 00 911 694 0 Circlip
3 00 936 068 0 Radial-shaft sealing ring
4 00 217 235 1 Intermediate washer
6 00 919 105 0 Grease niple
7 00 909 912 1 Detent edged washer
8 00 900 335 1 Hex head bolt
9 00 217 231 3 Bearing housing -left
10 00 900 675 0 Hex head bolt
11 00 217 292 0 Thrust ring
12 00 931 922 0 Pendular roller bearing
14 00 217 232 0 Ring -outside
15 00 217 233 1 Sliding ring
16 00 217 229 0 Cover disc
17 00 903 043 1 Allen screw
18 00 217 228 0 Bearing bush
19 00 217 333 0 Bearing housing -left, incl. bushing
20 00 911 540 0 Circlip
21 00 911 696 0 Circlip
23 00 936 061 0 Radial-shaft sealing ring
24 00 224 128 1 Intermediate washer
25 00 228 309 0 Bearing housing
26 00 931 920 0 Pendular roller bearing
27 00 224 030 0 Supporting disc
28 00 911 570 0 Circlip
29 00 937 534 0 O-ring
30 00 224 028 1 Cover
31 00 224 125 0 Cover disc
32 00 217 334 0 Bearing housing -right, incl.
33 00 224 124 0 Bearing bush
34 00 224 134 0 Supporting disc
35 00 911 533 0 Circlip
36 00 940 093 0 Cone-type tensioner -incl. Screw
37 00 226 825 0 V-belt pulley
40 00 903 073 1 Allen screw
41 00 903 116 1 Allen screw
42 00 936 064 0 Radial-shaft sealing ring
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
