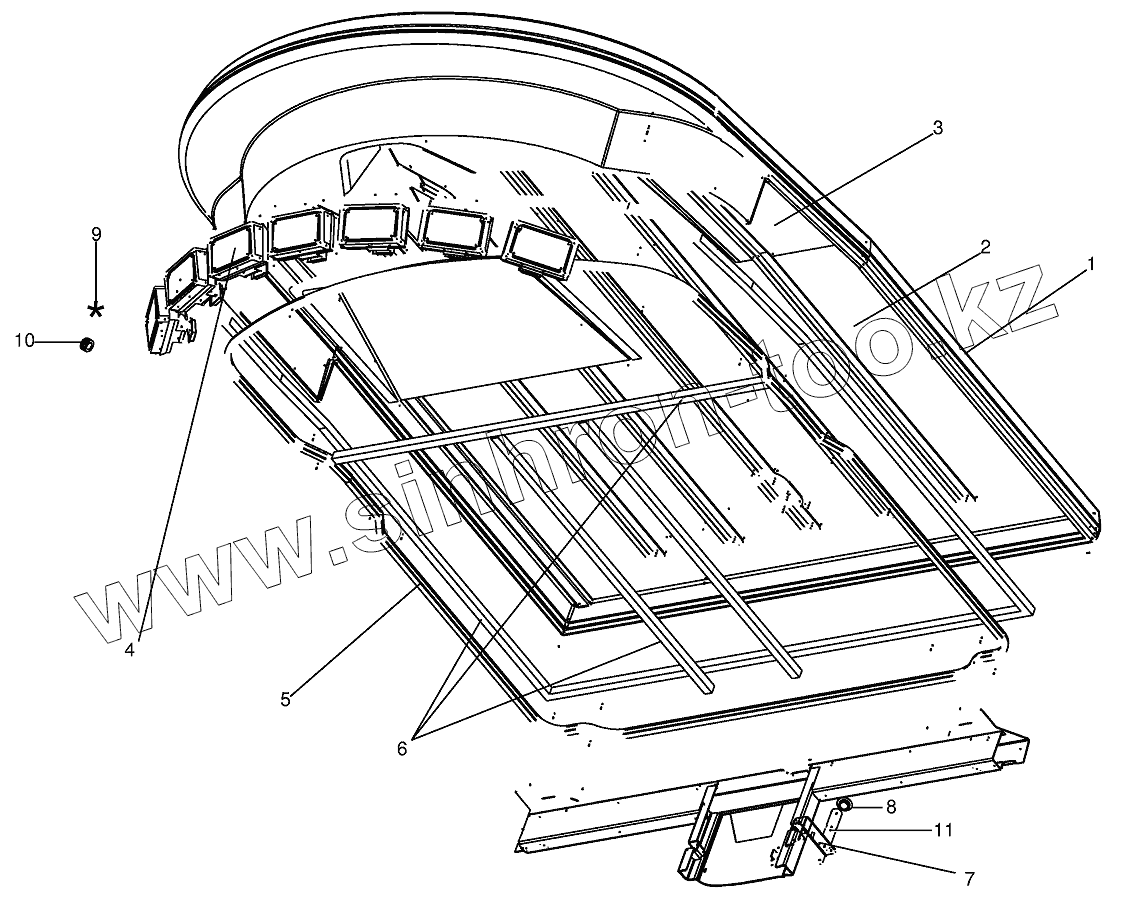

1
2
2
3
4
4
5
6
7
7
8
9
9
10
11
Позиция на иллюстрации
Заводской номер детали
Название детали
1
00 220 451 0
Roof -yellow
2
00 220 593 0
Heat shield mat -left
2
00 220 594 0
Heat shield mat -right
3
00 220 592 0
Heat shield mat
4
00 220 523 0
Work light
4
00 924 688 0
Bulb
5
00 220 522 0
Gasket -Id.-no.= 1m
6
00 220 449 1
Gasket
7
00 220 454 0
Support -left
7
00 220 455 0
Support -right
8
00 220 595 0
Plug
9
00 220 580 0
Wiring harness for headlights
9
00 302 763 0
Wiring harness -Cab
10
00 924 207 0
Cable bushing
11
00 220 657 0
Adapter
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
Дополнительная информация
×
Название:
Номер:
Примечание:
