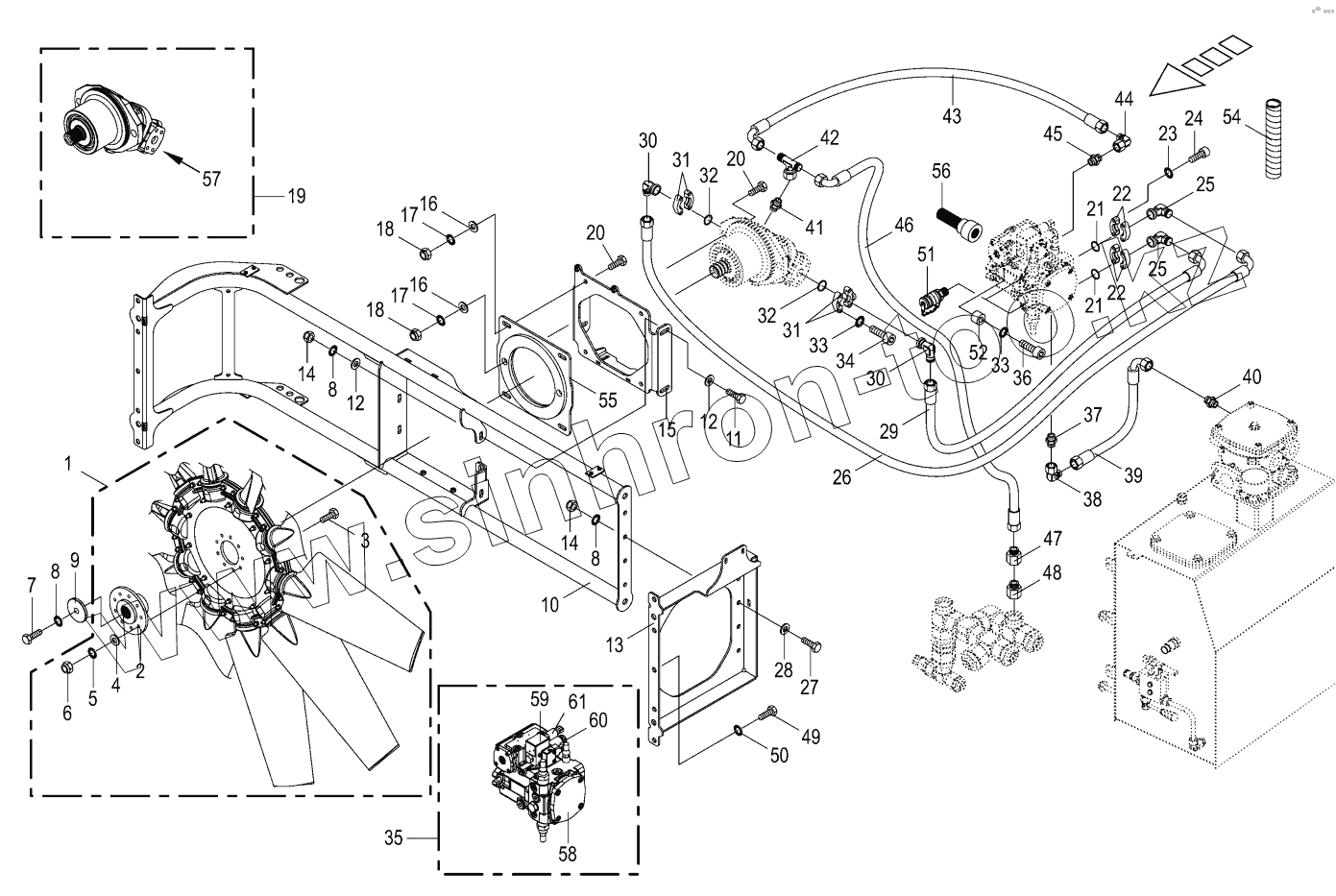

Каталог запасных частей к технике: KRONE BIG-X-850-1. Ventilator wheel / Drive

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
270103120
270188710
1
2
3
4
5
6
7
8
8
8
9
10
11
12
12
13
14
14
15
16
16
17
17
18
18
19
20
20
21
21
22
22
23
24
25
25
26
27
28
29
30
30
31
31
32
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
54
55
56
57
58
59
60
61
Позиция на иллюстрации Заводской номер детали Название детали
270103120 270103120 Gasket set variable displacement pump
270188710 270188710 Sealing kit hydraulic engine
1 270045351 Ventilator wheel
2 200252531 Adapter flange
3 9006170 Hex head bolt
4 9104130 Washer
5 9099081 Detent edged washer
6 9087060 Locknut
7 9002130 Hex head bolt
8 9099121 Detent edged washer
9 200252641 Bushing
10 200252092 20 025 209 2
11 9006570 Hex head bolt
12 9106090 Washer
13 200293941 Side part left
14 9087010 Locknut
15 200287491 Strut
16 9105122 Washer
17 9099131 Detent edged washer
18 9087210 Locknut
19 270040781 Hydraulic motor
20 9003821 Hex head bolt
21 270039230 Flange gasket
22 9208601 SAE-flange section-2 halves
23 9099070 Detent edged washer
24 9031091 Allen screw
25 270059500 SAE-flange adapter
26 270062020 High pressure hose line
27 9006560 Hex head bolt
28 9105061 Washer
29 270062010 High pressure hose line
30 270059510 SAE-flange adapter
31 9208611 SAE-flange section-2 halves
32 270039240 Flange gasket
33 9099110 Detent edged washer
34 900004730 Allen screw
35 270056740 Pump
36 9031421 Allen screw
37 9199100 Male connector
38 9208220 Angle lug
39 9197900 High pressure hose line
40 9196571 Male connector
41 9211440 Male connector
42 900000320 T connector
43 270059800 High pressure hose line
44 9211730 Angle lug
45 9211741 Male connector
46 9198670 High pressure hose line
47 9196590 Reducer fitting
48 9199250 Reducer fitting
49 9006340 Hex head bolt
50 9099091 Detent edged washer
51 9193600 Connector f.mini-test equipm.
52 2827610 Spacer bushing
54 9404780 Spiral strip-Id.-no.= 1m
55 200287510 Flange
56 270089980 Tappet
57 270103100 Flush valve
58 270103110 Feed pump
59 270103140 Adj. unit
60 270103130 Solenoid switch
61 270173310 Pressure reducing valve
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
