Каталог запасных частей к технике: KRONE BIG-X-850-1. Steering axle rocker arm
1
2
3
4
5
6
7
8
9
9
10
10
10
10
10
10
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
29
30
30
30
30
30
30
30
30
31
31
32
32
32
33
34
34
35
35
35
36
36
37
37
38
39
40
41
42
43
44
45
46
47
48
51
52
53
54
55
56
57
58
59
60
61

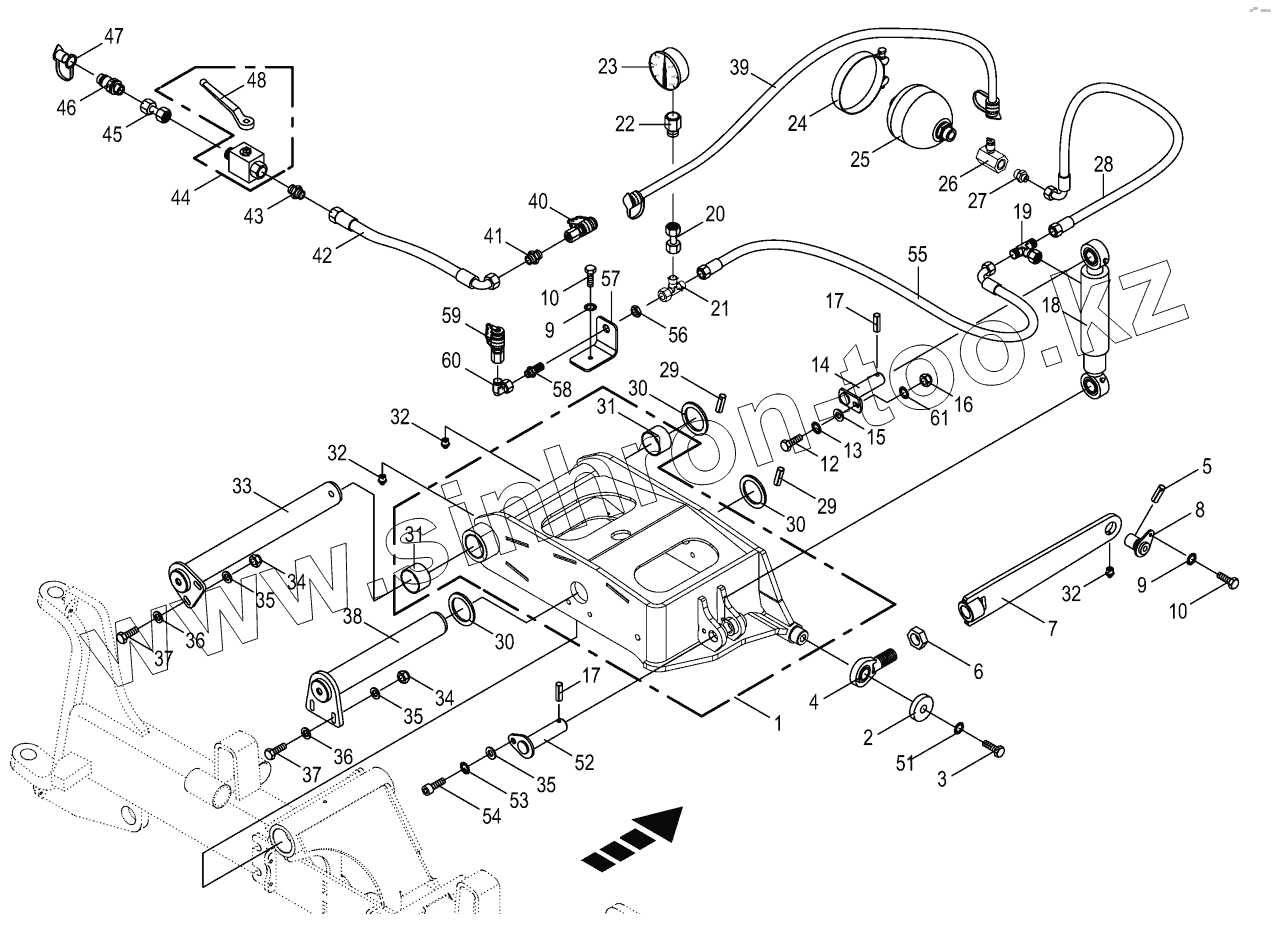

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200267182 | Steering axle rocker arm with bushing | |
| 2 | 2218920 | Washer | |
| 3 | 9006780 | Hex head bolt | |
| 4 | 270036150 | Joint head | |
| 5 | 9126482 | Roll pin | |
| 6 | 900002980 | Hex nut-low form | |
| 7 | 200243880 | Coupler | |
| 8 | 2248043 | Poling bolt | |
| 9 | 9099081 | Detent edged washer | |
| 10 | 9006140 | Hex head bolt | |
| 10 | 9006160 | Hex head bolt | |
| 12 | 9014310 | Hex head bolt | |
| 13 | 9099091 | Detent edged washer | |
| 14 | 2666200 | Pin | |
| 15 | 9103611 | Washer | |
| 16 | 9087580 | Locknut | |
| 17 | 9126721 | Roll pin | |
| 18 | 2191021 | Hydraulic cylinder | |
| 18 | 9187832 | Sealing set | |
| 19 | 9210771 | T connector | |
| 20 | 2307430 | Double nipple | |
| 21 | 9210791 | Adjustable L connection | |
| 22 | 9209190 | Connector | |
| 23 | 9209140 | Pressure guage | |
| 24 | 9251650 | Hose clamp | |
| 25 | 9215590 | Hydraulic-reservoir | |
| 26 | 9193620 | Damper | |
| 27 | 9197851 | Male connector | |
| 28 | 9209720 | High pressure hose line | |
| 29 | 9127520 | Roll pin | |
| 30 | 9110040 | Shim ring | |
| 30 | 9110051 | Shim ring | |
| 31 | 9353310 | Bearing bush | |
| 32 | 9191050 | Grease niple | |
| 33 | 2218393 | Retention bolt | |
| 34 | 9087010 | Locknut | |
| 35 | 9105061 | Washer | |
| 36 | 9103200 | Washer | |
| 37 | 9014510 | Hex head bolt | |
| 38 | 2218773 | Retention bolt | |
| 39 | 9196140 | Measuring hose | |
| 40 | 270006620 | Connector f.mini-test equipm. | |
| 41 | 9193020 | Connector | |
| 42 | 9201010 | High pressure hose line | |
| 43 | 900000480 | Male connector | |
| 44 | 9196030 | Ball valve | |
| 45 | 2307430 | Double nipple | |
| 46 | 9193220 | Connector plug | |
| 47 | 9211711 | Dust cap-red | |
| 48 | 9196640 | Hand lever-incl. screw, washer | |
| 51 | 9099121 | Detent edged washer | |
| 52 | 200273270 | Pin | |
| 53 | 9099101 | Detent edged washer | |
| 54 | 9031371 | Allen screw | |
| 55 | 9212581 | High pressure hose line | |
| 56 | 9085242 | Hex nut-low form | |
| 57 | 200273480 | Support | |
| 58 | 9210871 | Straight 2-way connector | |
| 59 | 9208680 | Connector f.mini-test equipm. | |
| 60 | 9210671 | Angle lug | |
| 61 | 9099070 | Detent edged washer |
