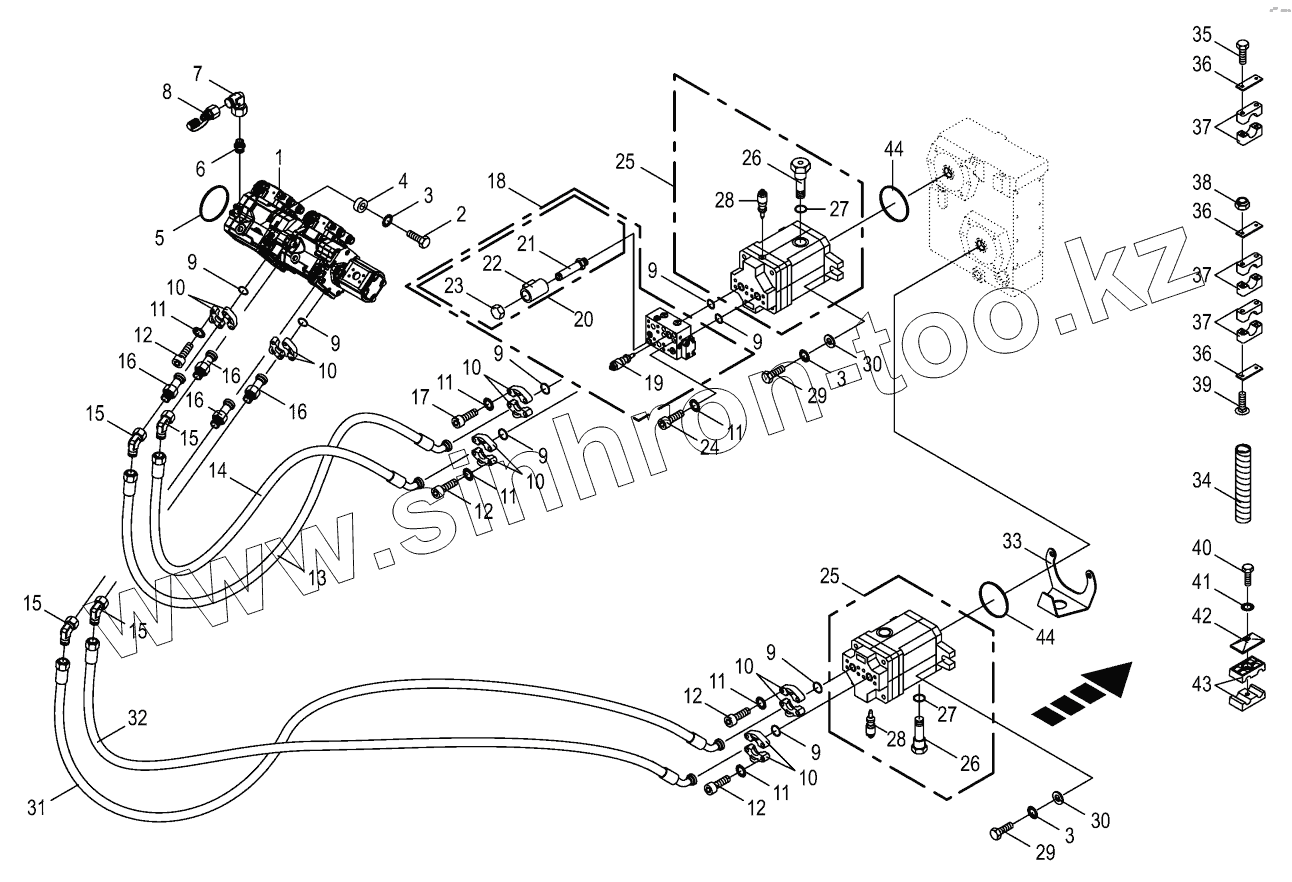

Каталог запасных частей к технике: KRONE BIG-X-850-1. Hydraulics - front attachment / feed rollers
270016930
270016930
270027310
270013060
1
2
3
3
3
4
5
6
7
8
9
9
9
9
9
9
9
9
10
10
10
10
10
10
11
11
11
11
11
11
12
12
12
12
13
14
15
15
15
15
16
16
16
16
17
18
19
20
21
22
23
24
25
25
26
26
27
27
28
28
29
29
30
30
31
32
33
34
35
35
36
36
36
37
37
37
38
39
40
41
42
43
44
44
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 270016930 | 270016930 | Sealing set | |
| 270027310 | 270027310 | Sealing set | |
| 270013060 | 270013060 | Sealing set | |
| 1 | 270068820 | Variable displacement pump | |
| 2 | 9006780 | Hex head bolt | |
| 3 | 9099121 | Detent edged washer | |
| 4 | 200239750 | Bushing | |
| 5 | 9376100 | O-ring | |
| 6 | 9193680 | Male connector | |
| 7 | 9208250 | Lug | |
| 8 | 9199370 | Connector f.mini-test equipm. | |
| 9 | 270039240 | Flange gasket | |
| 10 | 9208611 | SAE-flange section-2 halves | |
| 11 | 9099110 | Detent edged washer | |
| 12 | 900004730 | Allen screw | |
| 13 | 270079360 | High pressure hose line | |
| 14 | 270079370 | High pressure hose line | |
| 15 | 270039030 | Angle lug-45° | |
| 16 | 9199020 | SAE extern.screw thread flange | |
| 17 | 900021560 | Cheese head screw hex. I-6kt | |
| 18 | 9191720 | Fast-stop valve | |
| 19 | 270006860 | Pressure valve | |
| 20 | 270006881 | 2/2-Directional-control valve-cpl. | |
| 21 | 270006851 | 2/2-Directional-control valve | |
| 22 | 270006871 | Solenoid coil | |
| 23 | 270018420 | Nut-with emergency hand operation | |
| 24 | 9031492 | Allen screw | |
| 25 | 9191870 | Fixed displacement motor | |
| 26 | 270016900 | Speed sensor | |
| 27 | 900002920 | O-ring | |
| 28 | 270016910 | Pressure control valve | |
| 29 | 9006770 | Hex head bolt | |
| 30 | 900003370 | Washer | |
| 31 | 270079380 | High pressure hose line | |
| 32 | 270079390 | High pressure hose line | |
| 33 | 200253260 | Screeninig sheet | |
| 34 | 3012190 | Spiral strip-Id.-no.= 1m | |
| 35 | 9014380 | Hex head bolt | |
| 35 | 9014470 | Hex head bolt | |
| 36 | 9251251 | Cover plate | |
| 37 | 270039040 | Tube clamp-2 halves | |
| 38 | 9087580 | Locknut | |
| 39 | 900000250 | Coach bolt | |
| 40 | 9002231 | Hex head bolt | |
| 41 | 9099081 | Detent edged washer | |
| 42 | 270058550 | Cover plate | |
| 43 | 270058560 | Tube clamp -2 halves | |
| 44 | 9375880 | O-ring |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
