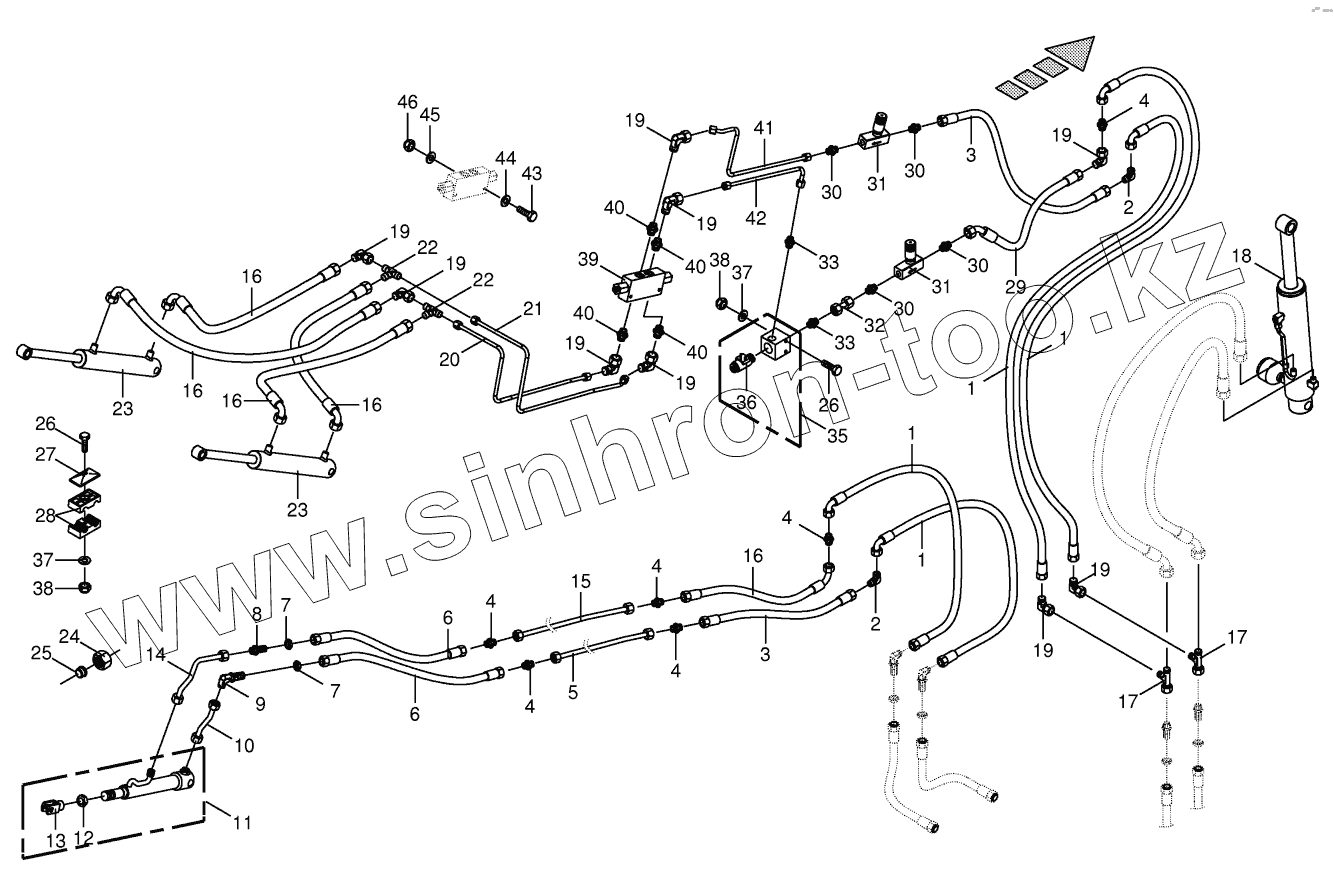

Каталог запасных частей к технике: KRONE BIG-X-850-1. Hydraulics - discharge chute - 14-row
9191750
270034050
270034050
270120440
270193170
270034121
9187850
1
1
1
1
2
2
3
3
4
4
4
4
4
4
5
6
6
7
7
8
9
10
11
12
13
14
15
16
16
16
16
16
17
17
18
19
19
19
19
19
19
19
19
19
20
21
22
22
23
23
24
25
26
26
26
26
27
28
28
28
29
30
30
30
30
31
31
32
33
33
35
36
37
37
38
38
39
40
40
40
40
41
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9191750 | 9191750 | Solenoid coil | |
| 270034050 | 270034050 | Sealing set | |
| 270120440 | 270120440 | O-ring seal | |
| 270193170 | 270193170 | Hydraulic accumulator | |
| 270034121 | 270034121 | Gasket set | |
| 9187850 | 9187850 | Sealing set | |
| 1 | 9200800 | High pressure hose line | |
| 2 | 900001140 | Angle lug | |
| 3 | 270006571 | Hyd. hose | |
| 4 | 9193020 | Connector | |
| 5 | 200236380 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 6 | 9198750 | High pressure hose line | |
| 7 | 9085190 | Hex nut-low form | |
| 8 | 9199630 | Straight 2-way connector | |
| 9 | 9199660 | Connector | |
| 10 | 200236350 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 11 | 2225623 | Hydraulic cylinder | |
| 12 | 9085000 | Hex nut-low form | |
| 13 | 9271070 | Clevis | |
| 14 | 200236340 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 15 | 200236390 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 16 | 270014800 | High pressure hose line | |
| 17 | 9199670 | Adjustable L connection | |
| 18 | 270129650 | Hyd. cylinder | |
| 19 | 9199650 | Angle lug | |
| 20 | 200236372 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 21 | 200236362 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 22 | 9199690 | T-connector | |
| 23 | 270064050 | Hydraulic cylinder | |
| 24 | 9199620 | Nozzle disc cap | |
| 25 | 9199610 | Cutting ring | |
| 26 | 9014230 | Hex head bolt | |
| 26 | 9014250 | Hex head bolt | |
| 27 | 9251340 | Cover plate | |
| 28 | 9251590 | Tube clamp-2 halves | |
| 28 | 9251050 | Tube clamp-2 halves | |
| 28 | 9251080 | Tube clamp-2 halves | |
| 29 | 270024510 | High pressure hose line | |
| 30 | 9199640 | Male connector | |
| 31 | 9193040 | One-way restrictor-adjustable | |
| 32 | 270029290 | Double nipple | |
| 33 | 900000480 | Male connector | |
| 35 | 2203601 | 2/2-way seated valve | |
| 36 | 9191760 | 2/2-way seated valve | |
| 37 | 9104130 | Washer | |
| 38 | 9087060 | Locknut | |
| 39 | 270064420 | Lowering brake valve | |
| 40 | 900014700 | Male connector | |
| 41 | 200270920 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 42 | 200270910 | Hydraulic line -incl. nozzle disc cap, cutting ring | |
| 43 | 9014111 | Hex head bolt | |
| 44 | 9104111 | Washer | |
| 45 | 9103511 | Washer | |
| 46 | 9087041 | Locknut |
