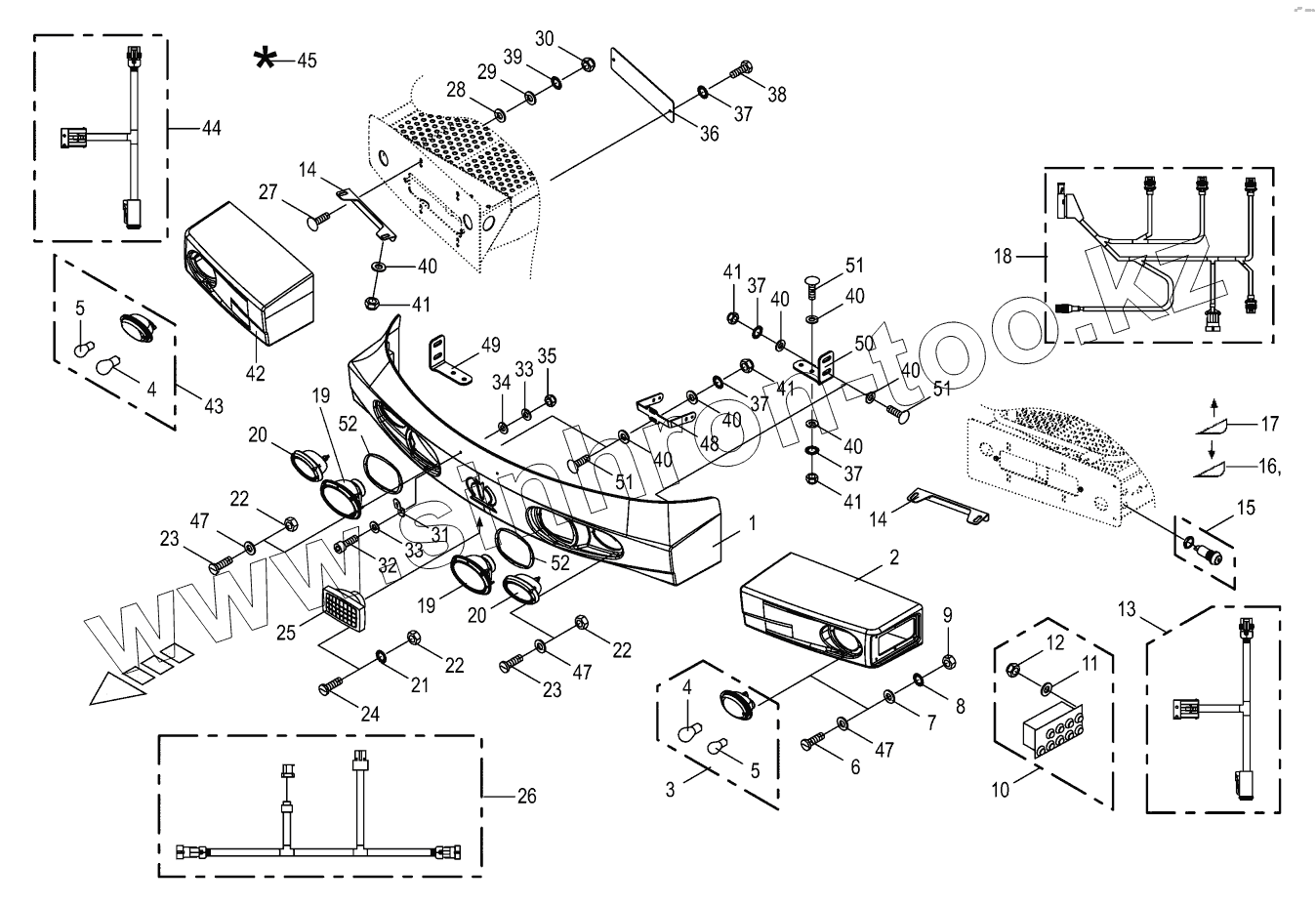

Каталог запасных частей к технике: KRONE BIG-X-850-1. Front panel / Headlight
9246880
900013880
900013880
9246880
9246880
200832660
200832660
9247140
9247140
1
2
3
4
4
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
19
20
20
21
22
22
22
23
23
24
25
26
27
28
29
30
31
32
33
33
34
35
36
37
37
37
37
38
39
40
40
40
40
40
40
40
41
41
41
41
42
43
44
45
47
47
47
48
49
50
51
51
51
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 9246880 | 9246880 | Bulb | |
| 900013880 | 900013880 | Allen screw | |
| 9246880 | 9246880 | Bulb | |
| 200832660 | 200832660 | Protective cap, HS | |
| 9247140 | 9247140 | Bulb | |
| 1 | 202209340 | Front orifice centre | |
| 2 | 200264031 | Front guard-left | |
| 3 | 270058860 | Flashing light with side light-left | |
| 4 | 9246930 | Singel filament buld | |
| 5 | 9246920 | Singel filament buld | |
| 6 | 900013890 | Allen screw | |
| 7 | 9105001 | Washer | |
| 8 | 9100310 | Spring washer | |
| 9 | 9082071 | Hex nut | |
| 10 | 200840760 | Manual operation | |
| 11 | 9103650 | Washer | |
| 12 | 9087020 | Locknut | |
| 13 | 200811381 | Cable harness lamp carrier left-left | |
| 14 | 200265840 | Carrier | |
| 15 | 3027230 | Feeler-yellow | |
| 16 | 3034180 | Tag-lower lifting gear | |
| 17 | 3034170 | Tag-lift lifting gear | |
| 18 | 3050382 | Cable harness manual oper. lifting gear | |
| 19 | 270058900 | Headlight | |
| 20 | 270058890 | Work light | |
| 21 | 9100010 | Spring washer | |
| 22 | 9080061 | Hex nut | |
| 23 | 900013870 | Allen screw | |
| 24 | 9034271 | Allen screw | |
| 25 | 9247500 | Work light | |
| 26 | 200811402 | Cable harness lamp carrier centre | |
| 27 | 9048501 | Coach bolt | |
| 28 | 9105102 | Washer | |
| 29 | 9103530 | Washer | |
| 30 | 9087580 | Locknut | |
| 31 | 202209370 | Registration plate support | |
| 32 | 900023140 | Cheese head screw int. heх. М6 х25 | |
| 33 | 900023130 | Disc 6.4 Х 18 Х 1.6 | |
| 34 | 9402870 | Washer | |
| 35 | 900023150 | Locknut М6 ZLO | |
| 36 | 2279132 | Cover | |
| 37 | 9099081 | Detent edged washer | |
| 38 | 9006140 | Hex head bolt | |
| 39 | 9099091 | Detent edged washer | |
| 40 | 9106030 | Washer | |
| 41 | 9087060 | Locknut | |
| 42 | 200264020 | Front guard-right | |
| 43 | 270058880 | Flashing light with side light-right | |
| 44 | 200811391 | Cable harness lamp carrier right-right | |
| 45 | 9403750 | Repairing set for plastics- beige | |
| 47 | 900023110 | Disc 4.3 х 9 х 0.8 ZLO | |
| 48 | 200271630 | Front guard support-middle | |
| 49 | 200271610 | Front guard support-right | |
| 50 | 200271640 | Front guard support-left | |
| 51 | 9047322 | Coach bolt | |
| 52 | 202262660 | Headlight surface |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
