Каталог запасных частей к технике: KRONE BIG-X-850-1. Frame / trailer hitch / ascending ladder
1
2
3
3
4
4
5
6
7
8
9
10
11
11
12
12
13
13
14
14
15
16
17
18
18
19
19
19
20
20
20
21
22
23
24
25
25
25
25
25
25
25
25
25
26
26
27
28
29
30
31
32
33
34
34
34
34
35
35
35
35
36
36
36
36
37
38
39
40
41
42
43
44
45
45
45
45
45
46
46
47
48
49
50
51
52
52
53
54
55

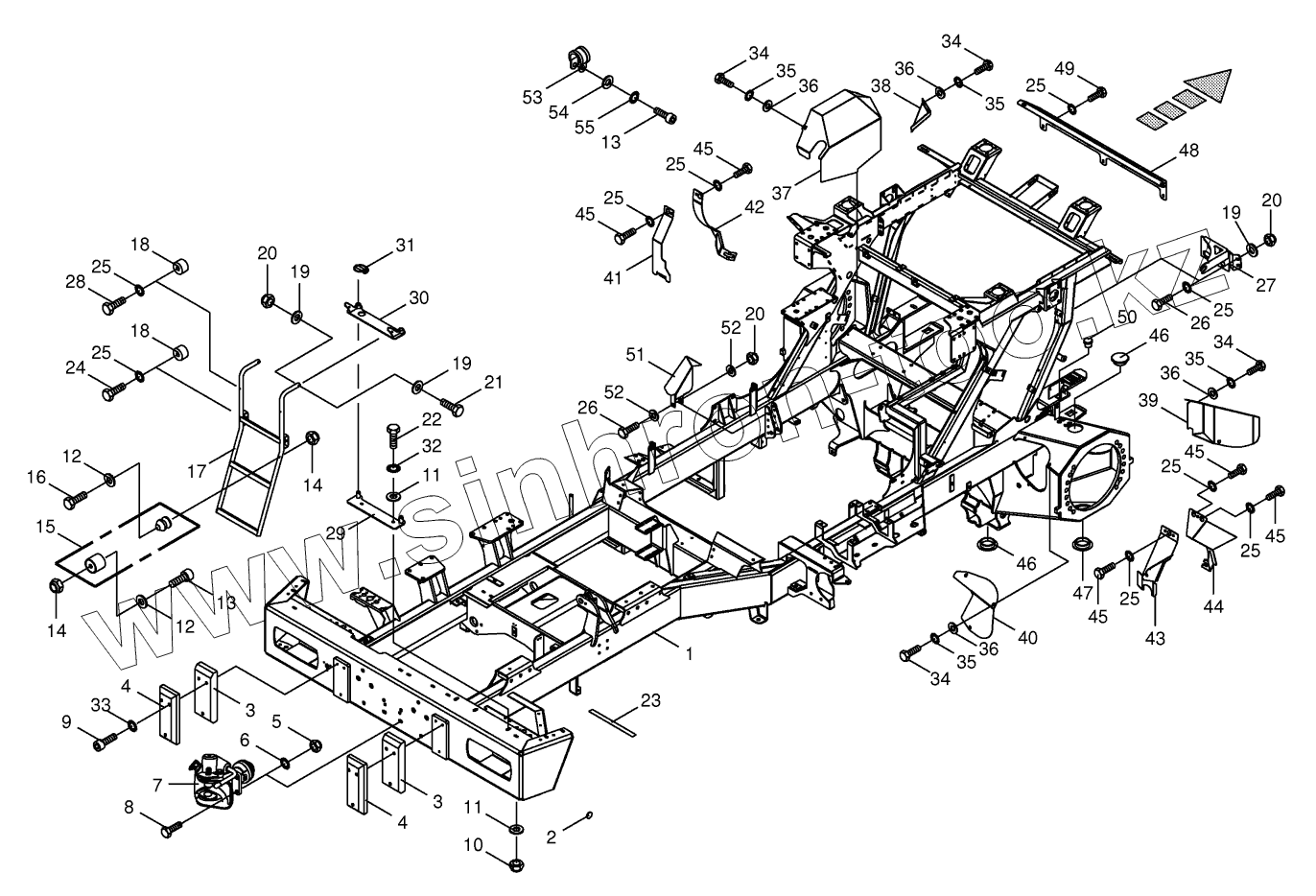

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 200276211 | Мain frame B1G Х 700/1-1100/1 | |
| 2 | 9388600 | Housing foot | |
| 3 | 200228910 | Reflection loss or gain | |
| 4 | 9242290 | Rubber pad | |
| 5 | 9087190 | Locknut | |
| 6 | 9099121 | Detent edged washer | |
| 7 | 270066430 | Trailer hitch | |
| 8 | 9014840 | Hex head bolt | |
| 9 | 9030331 | Allen screw | |
| 10 | 9087010 | Locknut | |
| 11 | 9106090 | Washer | |
| 12 | 9104111 | Washer | |
| 13 | 9030451 | Allen screw | |
| 14 | 9087041 | Locknut | |
| 15 | 2508311 | Clamp and buffer | |
| 16 | 9014121 | Hex head bolt | |
| 17 | 200233871 | Ladder-back | |
| 18 | 270015280 | Rubber pad | |
| 19 | 9104140 | Washer | |
| 20 | 9087580 | Locknut | |
| 21 | 9014340 | Hex head bolt | |
| 22 | 9006570 | Hex head bolt | |
| 23 | 9394041 | Locking tab | |
| 24 | 9006320 | Hex head bolt | |
| 25 | 9099091 | Detent edged washer | |
| 26 | 9006360 | Hex head bolt | |
| 27 | 200247260 | Clutch support | |
| 28 | 9006380 | Hex head bolt | |
| 29 | 200257330 | Mounting strap | |
| 30 | 200257370 | Supporting angle | |
| 31 | 9170071 | Linch pin | |
| 32 | 9099101 | Detent edged washer | |
| 33 | 9099110 | Detent edged washer | |
| 34 | 9006160 | Hex head bolt | |
| 35 | 9099081 | Detent edged washer | |
| 36 | 9106030 | Washer | |
| 37 | 200279261 | Cover plate -left | |
| 38 | 200279540 | Cover plate -left front | |
| 39 | 200279242 | Abdeckblech Achse rechts, vorne | |
| 40 | 200279251 | Cover plate -back right | |
| 41 | 200219290 | Plate-back left | |
| 42 | 200219400 | Plate-inside left | |
| 43 | 200223711 | Guard-back right | |
| 44 | 200219390 | Plate-inside right | |
| 45 | 9006340 | Hex head bolt | |
| 46 | 270079130 | End cap | |
| 47 | 270079140 | End cap | |
| 48 | 200278300 | 1ntermediate housing | |
| 49 | 9006140 | Hex head bolt | |
| 50 | 270056900 | Ribbed plug | |
| 51 | 202214530 | Eхhaust plate | |
| 52 | 9106161 | Washer | |
| 53 | 9240550 | Tube clip w. rubber | |
| 54 | 9103511 | Washer | |
| 55 | 9099061 | Detent edged washer |
