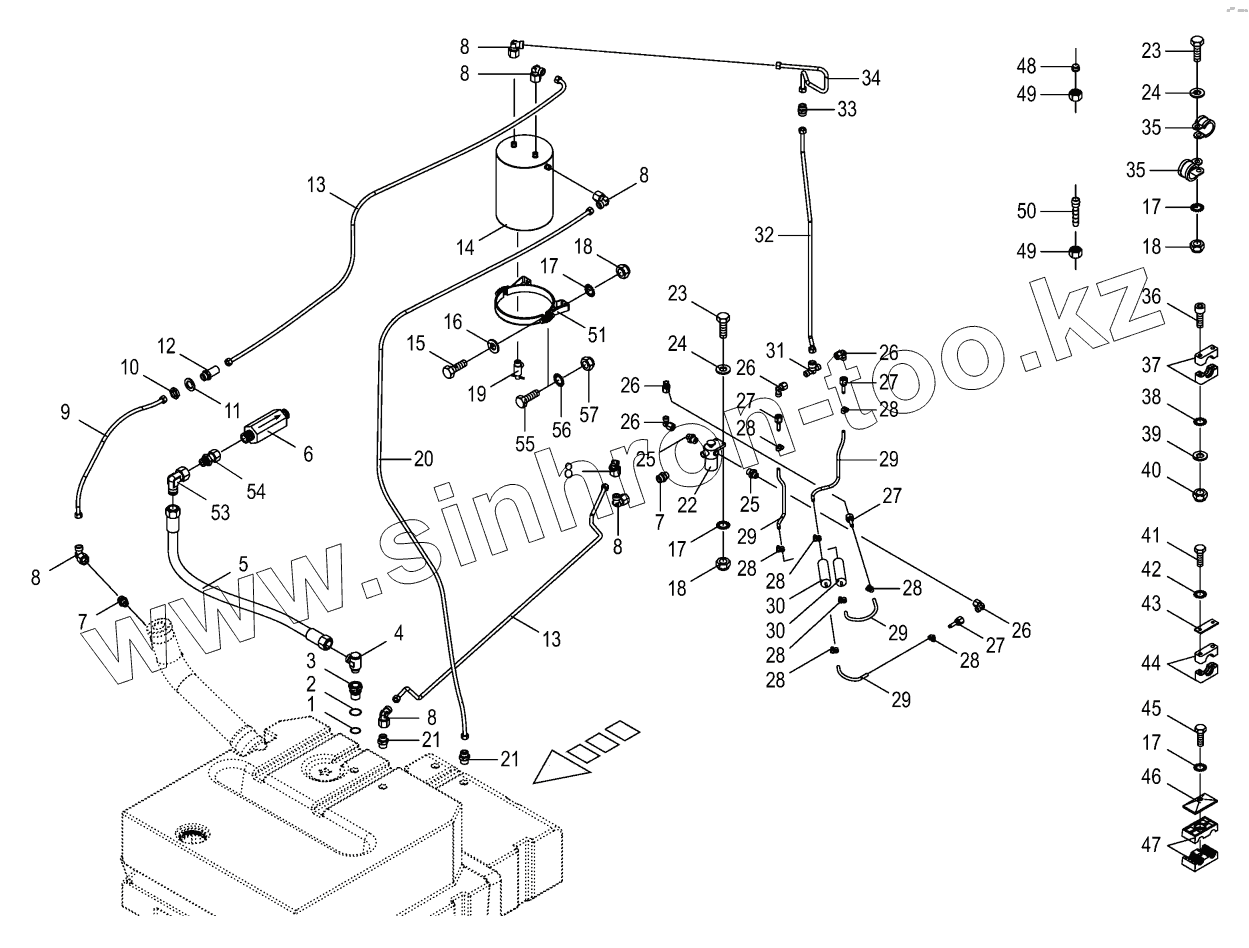

Каталог запасных частей к технике: KRONE BIG-X-850-1. Diesel fuel pipe -Part I
900024710
270156940
1
2
3
4
5
6
7
7
8
8
8
8
8
8
8
9
10
11
12
13
13
14
15
16
17
17
17
17
18
18
18
19
20
21
21
22
23
23
23
23
23
23
24
24
25
25
26
26
26
26
26
27
27
27
27
28
28
28
28
28
28
28
28
29
29
29
29
30
30
31
32
33
34
35
35
35
35
36
37
38
39
40
41
42
43
44
45
45
46
47
48
49
49
50
51
53
54
55
56
57
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 900024710 | 900024710 | O-ring 26 х 4,5 | |
| 270156940 | 270156940 | Filter insert | |
| 1 | 9376340 | O-ring | |
| 2 | 9375250 | O-ring | |
| 3 | 200219150 | Connector | |
| 4 | 900001400 | Hinged union | |
| 5 | 270135050 | Hyd. hose | |
| 6 | 9191700 | High pressure filter | |
| 7 | 9210572 | Male connector | |
| 8 | 9210651 | Angle lug | |
| 9 | 202235560 | Fuel pipe | |
| 10 | 9210741 | Hex nut-low form | |
| 11 | 9103690 | Washer | |
| 12 | 9212500 | Straight 2-way connector | |
| 13 | 200257491 | Fuel pipe | |
| 14 | 270041190 | Intermediate tank | |
| 15 | 9006160 | Hex head bolt | |
| 16 | 9103660 | Washer | |
| 17 | 9099081 | Detent edged washer | |
| 18 | 9087060 | Locknut | |
| 19 | 9193750 | Discharge drain | |
| 20 | 200257531 | Fuel pipe | |
| 21 | 9209111 | Male connector | |
| 22 | 270128820 | Fuel hand priming pump | |
| 23 | 9006170 | Hex head bolt | |
| 23 | 9006140 | Hex head bolt | |
| 24 | 9104130 | Washer | |
| 25 | 270049780 | Male connector | |
| 26 | 270049830 | Angle lug | |
| 27 | 270049841 | Bulkhead union preassem. | |
| 28 | 9240340 | Hose clamp | |
| 29 | 270049850 | Low pressure hose-Id.-no.=1m | |
| 30 | 270041200 | Fuel pump | |
| 31 | 270049810 | T-reduction | |
| 32 | 200257511 | Fuel pipe | |
| 33 | 9210531 | Connector | |
| 34 | 200270950 | Hydraulic line-incl. nozzle disc cap, cutting ring | |
| 35 | 9240550 | Tube clip w. rubber | |
| 35 | 9240620 | Tube clip w. rubber | |
| 36 | 9030502 | Allen screw | |
| 37 | 270050850 | Tube clamp-2 halves | |
| 38 | 9099061 | Detent edged washer | |
| 39 | 9104111 | Washer | |
| 40 | 9087041 | Locknut | |
| 41 | 9014590 | Hex head bolt | |
| 42 | 9099101 | Detent edged washer | |
| 43 | 9251211 | Cover plate | |
| 44 | 9251640 | Tube clamp-2 halves | |
| 45 | 9014230 | Hex head bolt | |
| 45 | 9010491 | Hex head bolt | |
| 46 | 9251340 | Cover plate | |
| 47 | 9251080 | Tube clamp-2 halves | |
| 48 | 9210471 | Cutting ring | |
| 49 | 9210430 | Nozzle disc cap | |
| 50 | 270066850 | Steer nippel | |
| 51 | 270076190 | Clamp | |
| 53 | 9211730 | Angle lug | |
| 54 | 900026430 | Reducer connector | |
| 55 | 900004400 | Hex head bolt | |
| 56 | 9099101 | Detent edged washer | |
| 57 | 9087010 | Locknut |
