Каталог запасных частей к технике: KRONE BIG-X-850-1. Diesel engine / maintenance parts

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано 280CV-Q, 320CV-Q, 280CRI-Q (2013) 280CV-Q, 320CV-Q, 280CRI-Q (2013) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R200 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R240 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R280 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R320 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) ActiveMow R360 (2018) AFL243RS (2013) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM 243CV, AM 283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 203CV, AM243CV, AM283CV (2018) AM 243 (2018) AM 243CV (2018) AM 243CV (2018) AM 243CV, AM283CV (2018) AM 283 (2018) AM 283CV (2018) BiG X 500 (2018) BiG X V8, BiG X V12 (2018) BIG-M-400 (2016) BIG-M-420 (2016) BIG-M-420 (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-I (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-M-II (2016) BIG-X-1000 (2016) BIG-X-1000 (2016) BIG-X-1100 (2016) BIG-X-480 (2016) BIG-X-480 (2017) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-500 (2010) BIG-X-530 (2016) BIG-X-530 (2017) BIG-X-580 (2016) BIG-X-580 (2017) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-600 (2016) BIG-X-630 (2016) BIG-X-630 (2017) BIG-X-650 (2010) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-650 (2013) BIG-X-700 (2010) BIG-X-700 (2013) BIG-X-700 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2013) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-700-1 (2016) BIG-X-800 (2016) BIG-X-800 (2016) BIG-X-800/1000 (2013) BIG-X-850-1 (2018) BIG-X-850-1/1100-1 (2013) BIG-X-850-1/1100-1 (2013) BIG-X-850/1100 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) BIG-X-V8/BIG-X-V12 (2013) Easycollect (2018) EasyCut F360M (2018) EasyFlow 300, 380 (2012) EasyFlow 3000, 3800 (2013) EasyFlow 3000, 3800 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3001 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EasyFlow 3801 (2013) EC 27/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32 (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32CV (2013) EC 28/32M (2013) EC 28/32M (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28/32P (2013) EC 28M (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CRI (2013) EC 32CV (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC 360/400 (2013) EC F280 (2018) EC F280 / F320 (2013) EC F280 M (2013) EC F280/320/360 (2013) EC F320 (2018) EC F320 M (2013) EC F320 M (2013) EC F320CV (2013) EC F320M/F360M (2013) EC F360 (2018) EC R280 (2013) EC R320 (2013) EC R360 (2013) EC R400 (2018) EC-9000 (2008) EC270CV/320CV (2013) EC280/320 (2013) EC280/320 (2013) EC280/320 (2013) EC280CV-Q/320CV-Q (2013) EC280CV/320CV (2013) EC280CV/320CV/280CR (2013) EC280CV/320CV/C280CRI (2013) EC28CV/32CV/32CV-F (2013) EC28CV/C32CV/32CV-F (2013) EC32CV/32CV-F (2013) EColl.6000,7500,6000FP (2013) EColl.6000,7500,9000,6000F (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000,7500,9000,6000F/FP (2013) EColl.6000-7500-9000-6000CL/JD (2013) ECollect 753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECollect753, 903, 1053 (2013) ECR280CV/320CV (2012) KW 8.50-8 (2018) KWT 7.70-6X7, KWT 8.50-8, KWT 10.50-8X7 (2018) X-Disc 6200 (2013) X-Disc 6200 (2013)

Схема > Не выбрано Feeder Feeder Housing with support foot Grain collecting plate / slotted cover Lower feed rollers Lower feed roller bearing Top feed rollers Top feed roller bearing Cover- Feeder Housing Auxiliary gearbox / Drive Drive - feed rollers Angle gear Roller gear below Top roller gearbox Oscillating levers/Tension spring Pivoting frame Chopping aggregate -cpl. without blades Chopping drum support Chopping drum support - mounting parts Drum base -spring-mounted Husk / friction ground -spring-mounted Chopping drum - 20 Knifes Chopping drum - 28 Knifes Chopping drum - 40 Knifes Chopping drum - 48 Knifes Chopping drum bearing / counter bearing Tensioning device- main drive Belt guide - main drive Angle sensor - chopping drum Shear bar adjustment Adjusting mechanism Sharpening Sharpening device drive Transfer channel -spring-mounted Grass channel -spring-mounted Grain conditioner cpl. / cracker duct -spring-mounted Cracker housing - mounting parts -spring-mounted Cracker housing - mounting parts -disc corn conditioner Roller front Disc roller -front Roller back Disc roller -back E-Motor und Spannspille Pulley for changing directions Pulley for changing directions -7 rills Cracker drive / tensioning device Cracker drive / tensioning device -7 rills Rope winch / Installation car Discharge accelerator -cpl. Discharge accelerator / bearing Discharge accelerator housinge -spring-mounted Auger-gearbox Duct nozzle Mounting parts discharge chute rotation Channel union -HD parts Discharge chute assembl. Upper discharge chute with wear plates Upper discharge chute "short" with wear plates Discharge flap-end piece Discharge chute extension 10-row Discharge chute extension 12-row Upper discharge chute - mounting parts Discharge chute extension 14-row Upper discharge chute - mounting parts 14-row Camera surveillance / Rear view mirror ForageCam Cab - frame / mounting parts Cab - glazing Glass wiper Cab - control panel (roof) / circuit board Steering columm Wear parts - driver's seat -standard and activo Wear parts - driver's seat -standard Wear parts - driver's seat -activo Cab - Sound deadening Cab - roof Headlight - LED -optional Headlight -left-hand driving Cab - rear covering / passenger seat Cab - drawer Rear blind Control box mounting parts Control box / controls eletronic -part I Control box / controls eletronic -part II Air conditioning Evaporator Frame / trailer hitch / ascending ladder Tank protection Cab access left / platform right Additional tread Tool box - pivoting Panelling frame / Cladding -front top Panelling frame / Cladding -back top Battery box Mudguard Fender enlargement Fold-away warning panel Front panel / Headlight Cladding -lateral Cladding -back Tyres -front Tyres -back Steering axle rocker arm Steering axle Variable disqlacement pump Variable disqlacement pump Hydraulic tank / suction lines Housing line / oil cooler Traction drive pump Traction drive wheel engine -front Traction drive wheel engine -rear Return lines - traction drive Oil leckage pipes / return lines Charge pressure line - part 1 Charge pressure line - part 2 Hydraulics - sieve drive Hydraulics - front attachment / feed rollers Valve block with support- work hydraulics Valve block Hydraulic steering system Hydraulic brakes Hydraulics - pump 3 times / storage chorging valve Hydraulics - lift Hydraulics cpl. - discharge chute Hydraulics - discharge chute - 14-row Hydraulics - front attachment Hydraulics - sharpening device / transv. ground following Lines main clutch Hydraulics - additive connection back Hydraulics - additive connection back Gear molasses pump Additive connection for trailer Diesel fuel tank Diesel fuel pipe -Part I Diesel fuel pipe -Part II Auxiliary tank Accessories - auxiliary tank - diesel Silage agent system / Wiring harness Regulated silage agent dosing Diesel engine / maintenance parts Clutch / Silencer Motor output gear Gear oil cooler Hydraulic four-surface clutch Ventilator wheel / Drive Radiator frame / radiator door Condenser for air conditioner - cpl. Air cleaning equipment Rotor / Air conditioner mounting Sieve drum Suction fan Air pressure - Blow-out gun Air pressure - Feeder Wiring harness fastening Wiring harness - control box / cab Wiring harness - panel Wiring loom - cab Wiring harness - below the cabin Wiring Harness - lateral left Wiring Harness - chopping aggregate / backlash-alarm Wiring Harness - valve block Wiring loom - hydraulic pumps Wiring Harness - engine / diesel pumps Wiring Harness - rear / drive valve Wiring Harness - lighting -front Wiring Harness - lighting -back Wiring harness - auxiliary hydraulics Printer CropControl Moisture measurement NIR - Moisture measurement RockProtect Wiring harness - CropControl / RockProtect Several wiring looms Indicator / parking light commutation Battery and ground cable Lighting / returning horn - back Lighting Additional axis Hydraulics - additional axis Hydraulic panel - additional axis Electronics - additional axis Installation car Additional weights Central lubrication Pump for central lubrication Fire extinguisher Spare parts case for central lubrication -BEKA MAX P.T.O shafts -roller drive P.T.O shafts -drive - Pick-up P.T.O shafts -roller gear -below Double universal joint Warning signs General information labels Label - Circuit board

1

1

1

1

2

2

3

4

5

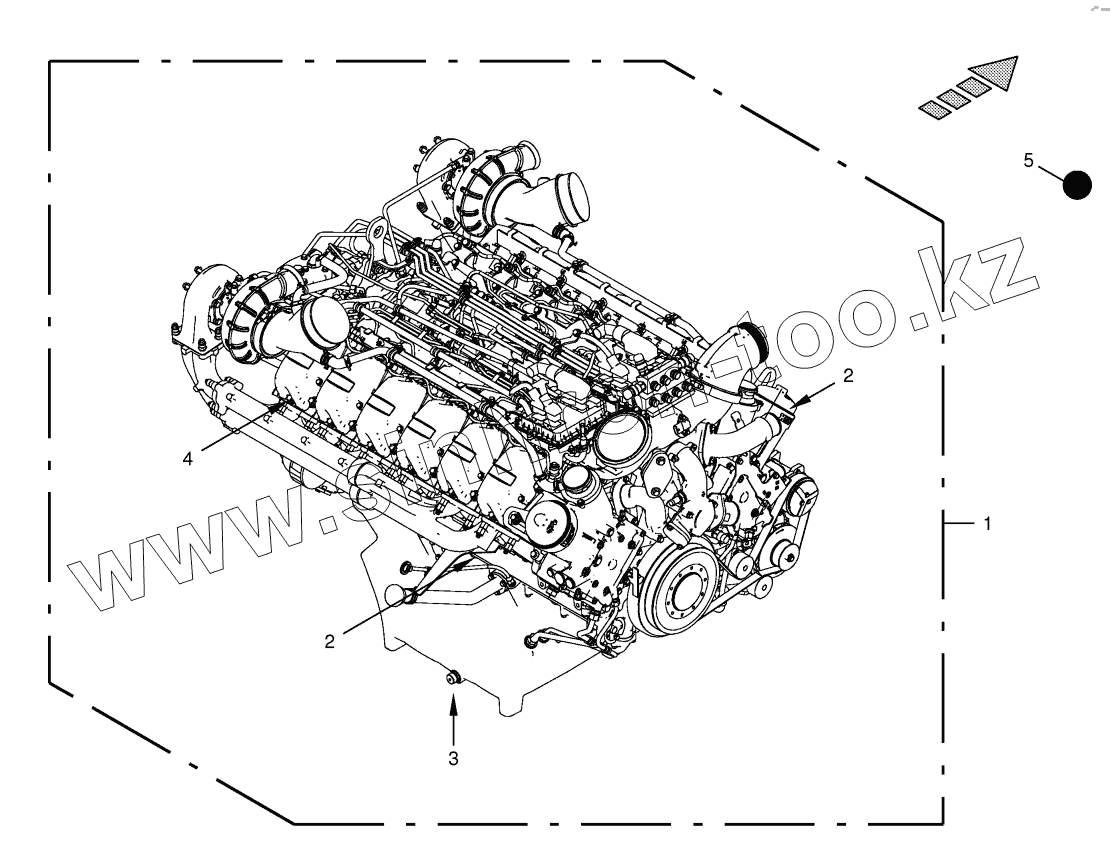

Позиция на иллюстрации	Заводской номер детали		Название детали
1	270110140		Diesel eng. V12 D2862 816KW YOM 2013
1	270108970		Diesel eng. V12 D2862 625KW YOM 2013 USA
1	270110140		Diesel eng. V12 D2862 816KW YOM 2013
1	270108960		Diesel eng. V12 D2862 793KW YOM 2013 USA
2	270048040		Oil filter cartridge
3	270048070		Gasket ring
4	270048080		Valve cover seal
5	270066610		MAN SAE 10W-40

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
